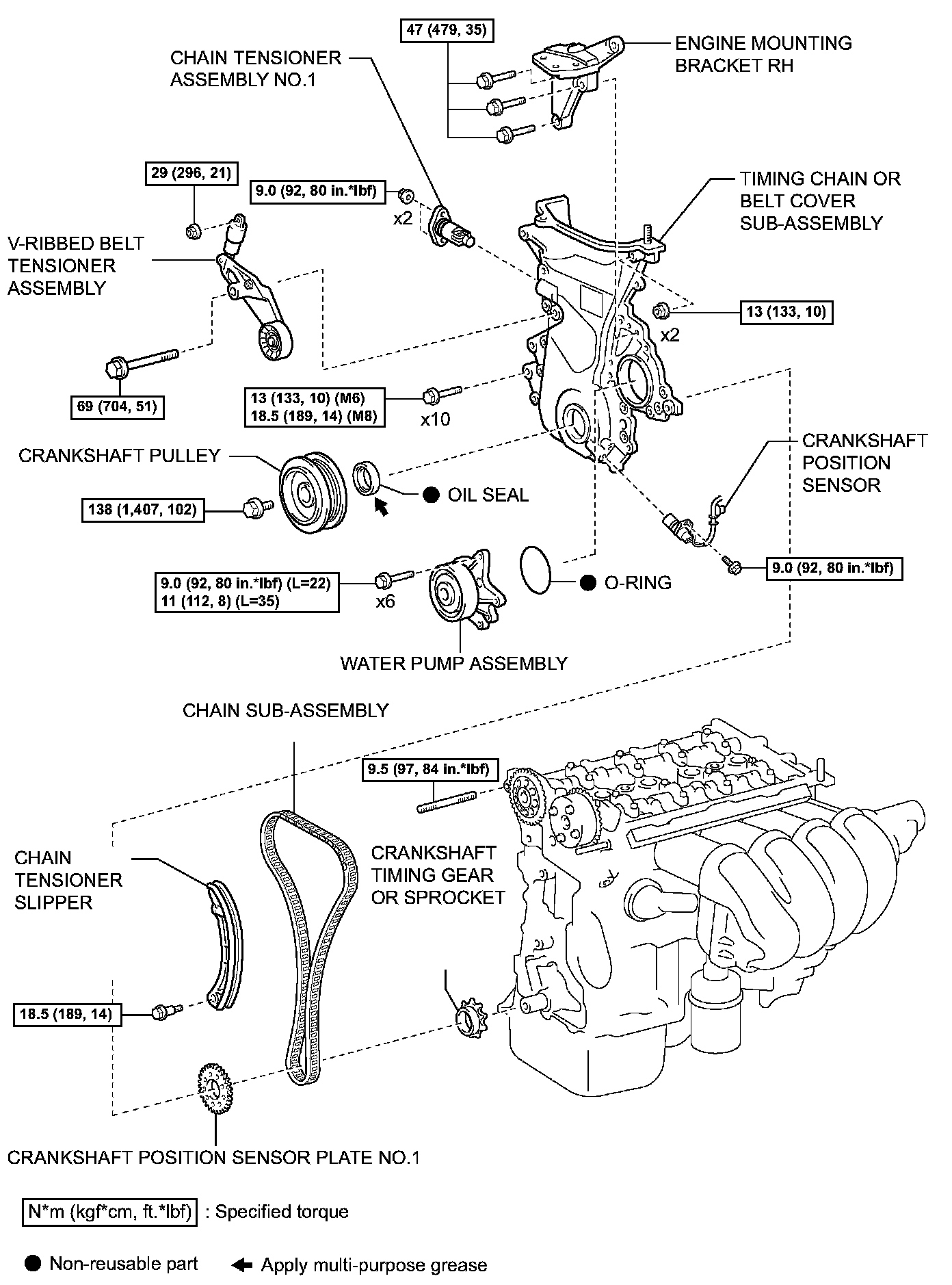

System Specifications

Timing Chain Tensioner

Crankshaft Pulley
Torque 138 N*m (1,407 kgf*cm, 102 ft.*lbf)

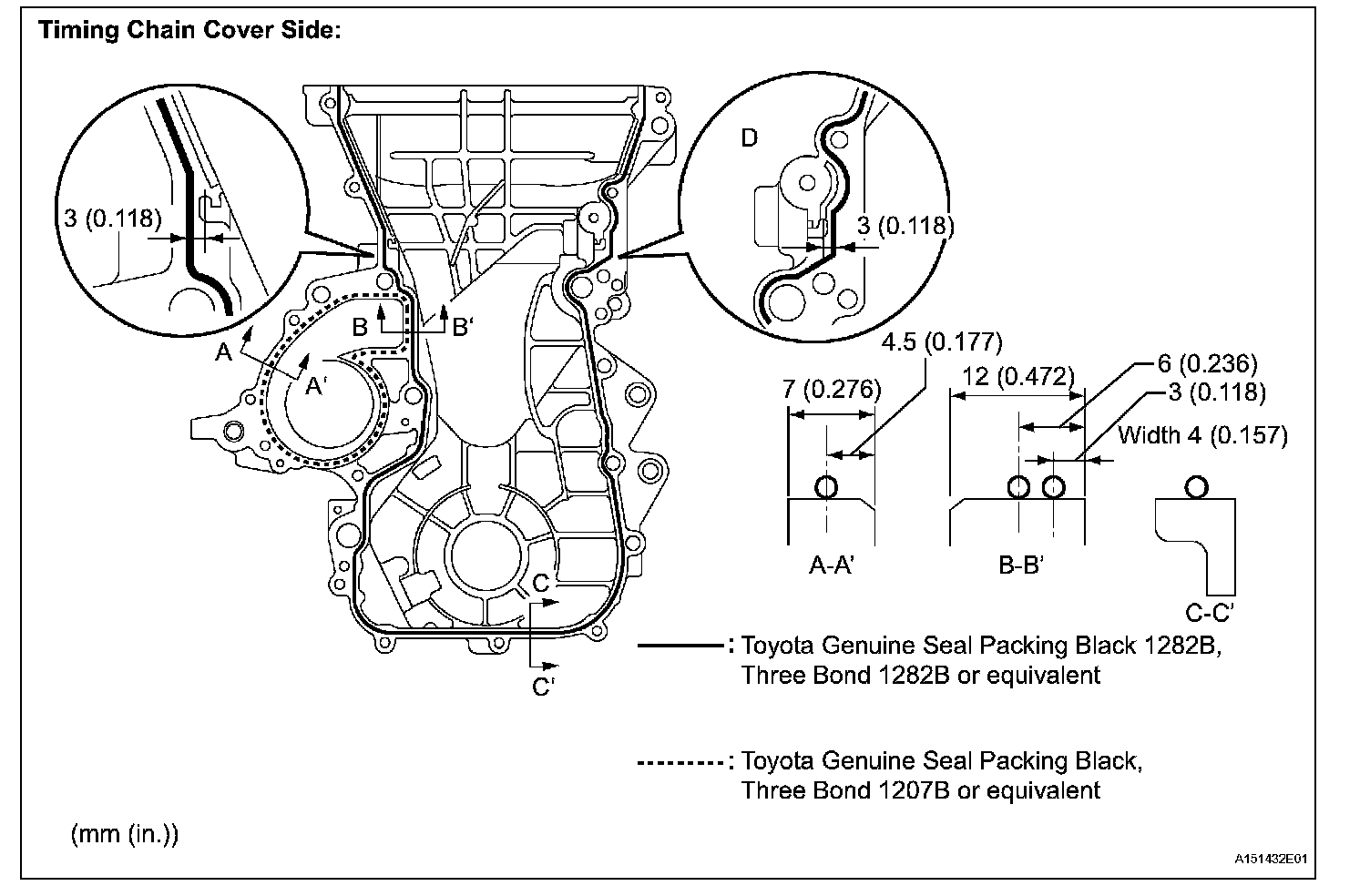

Timing Chain Cover

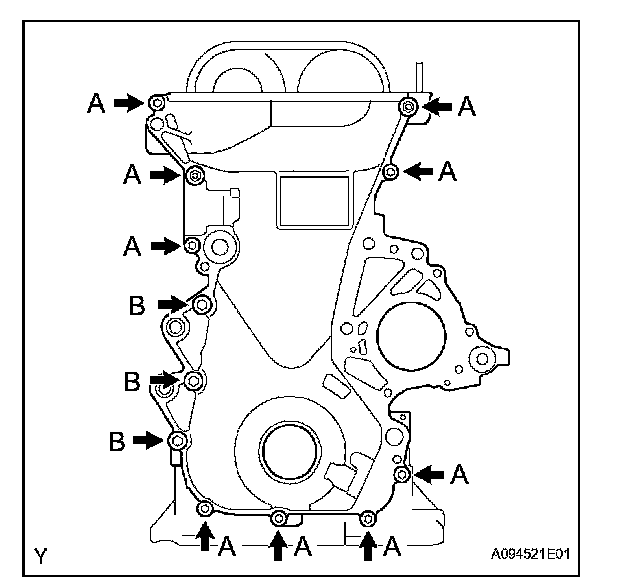

Install the timing chain cover with the 10 bolts and 2 nuts.
Torque:
Bolt A and nut A 13 N*m (133 kgf*cm, 10 ft.*lbf)
Bolt B 18.5 N*m (189 kgf*cm, 14 ft.*lbf)
Using a "TORX" socket wrench (E8), install the stud bolt.
Torque 9.5 N*m (97 kgf*cm, 84 in.*lbf)
Crankshaft position sensor x Timing chain or belt cover 9.0 N*m (92 kgf*cm, 80 in.*lbf)
Stud bolt x Timing chain cover sub-assembly 5.0 N*m (51 kgf*cm, 44 in.*lbf)
