Torque

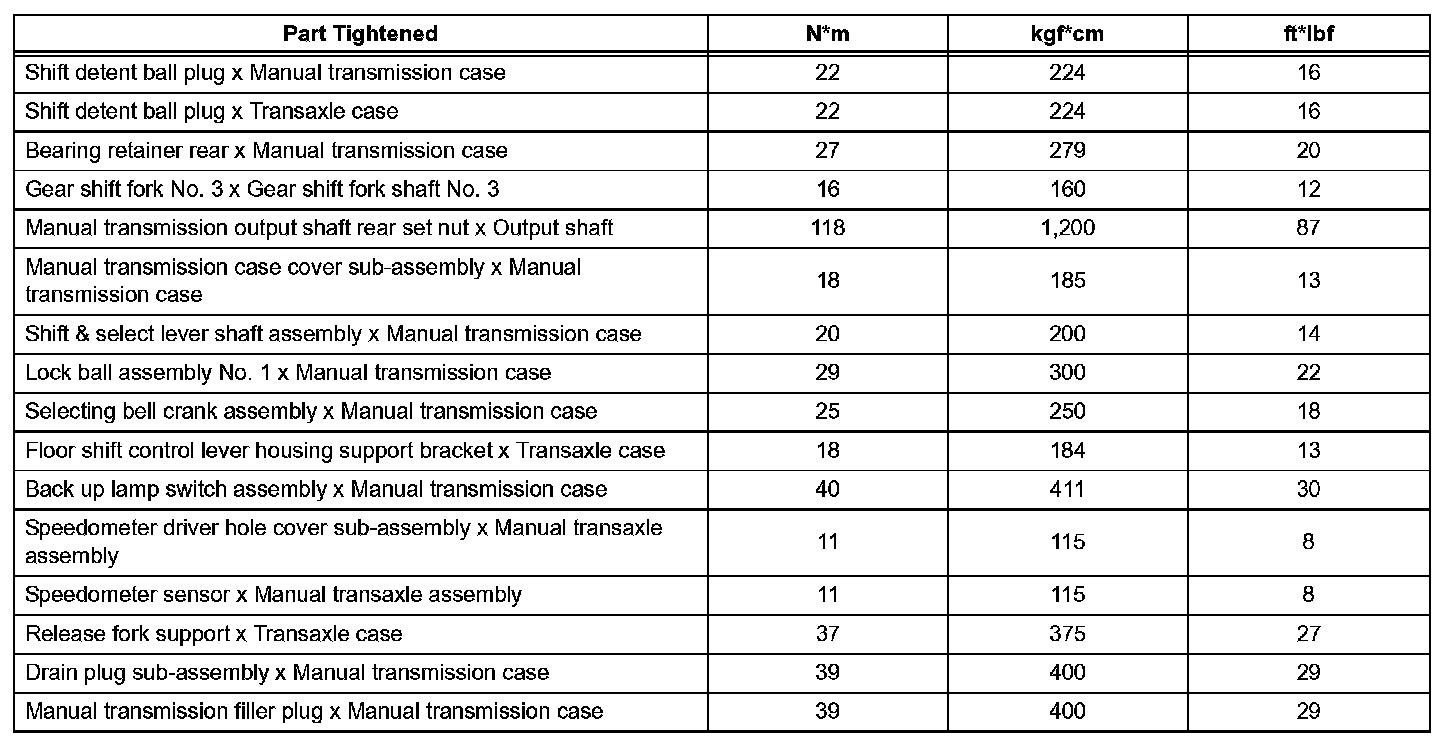

Manual Transaxle - Torque Specifications (Part 1):

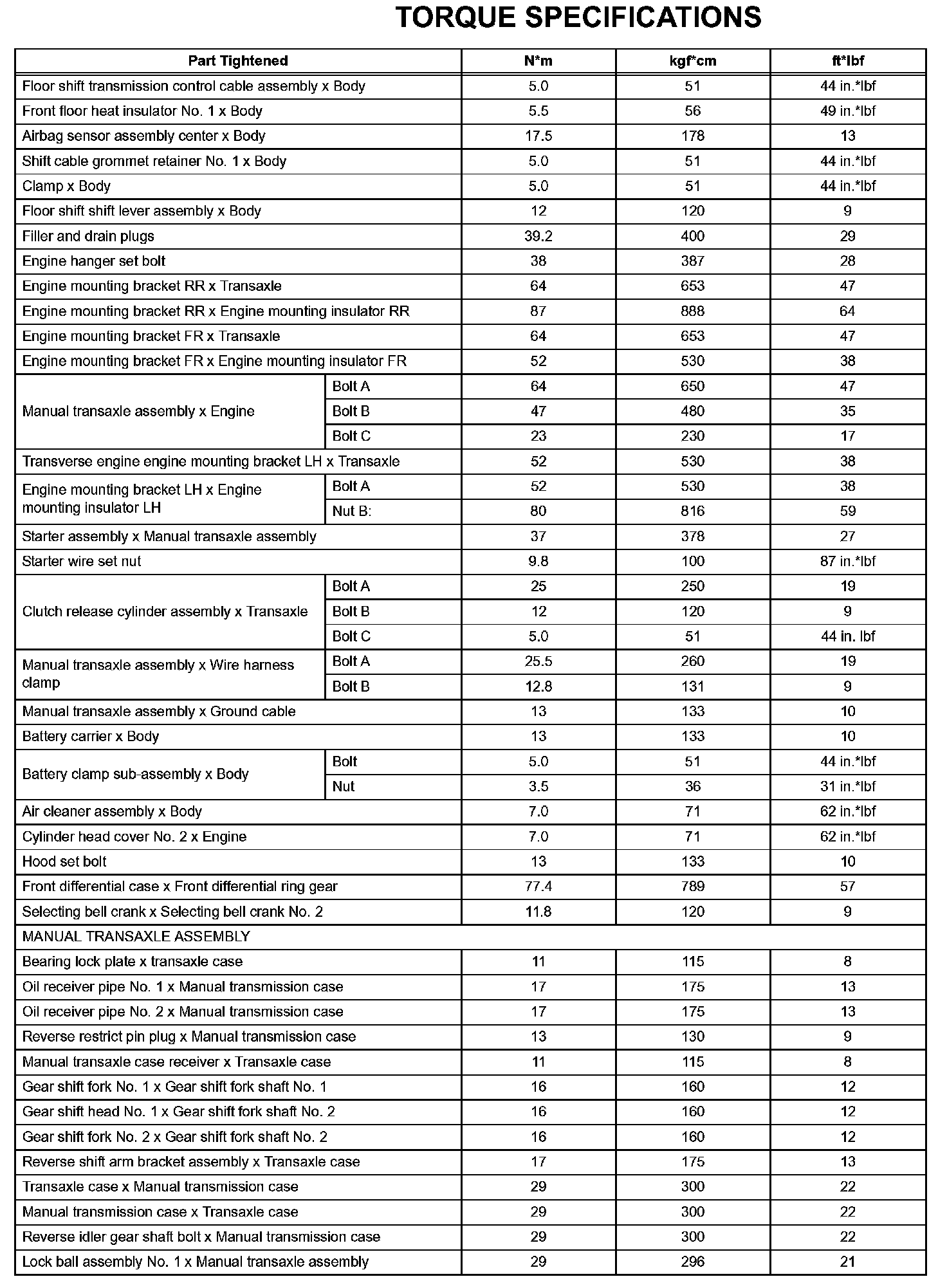

Manual Transaxle - Torque Specifications (Part 2):
