Steering Column Assembly: Components

Fig 1: Steering Column Assembly Replacement Components With Torque Specifications (1 Of 2)
G05235522Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

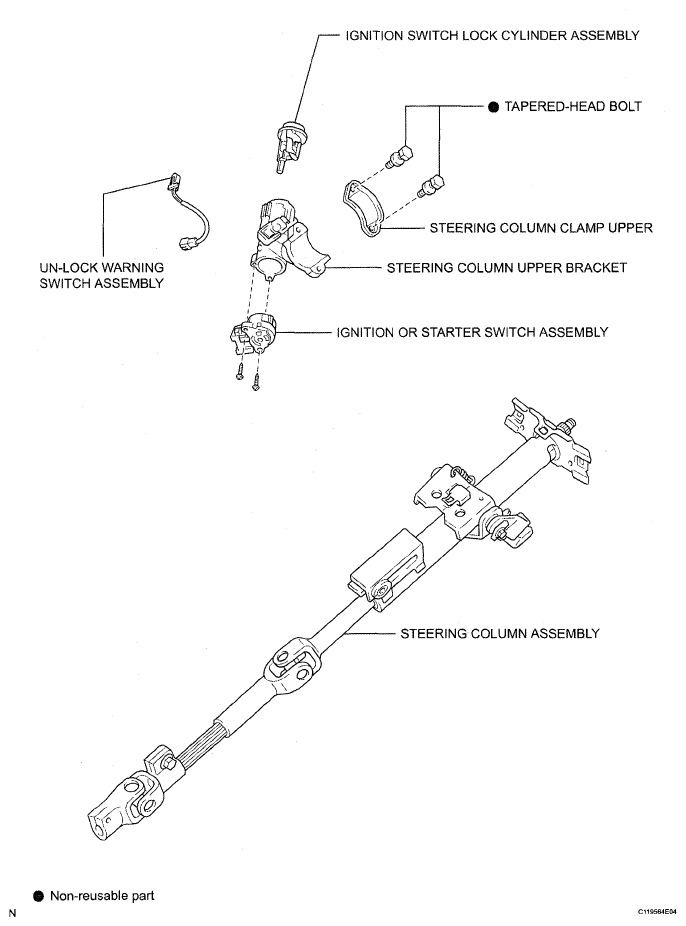

Fig 2: Identifying Steering Column Assembly Components (2 Of 2)
G05195162Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
