Inspection Procedure

1. Check the waveform of the camera using an oscilloscope.
   Fig 1: Identifying T13 Camera Connector Terminals

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   OK:

   Waveform is as shown in the illustration.

   TELEVISION CAMERA ASSEMBLY



   Item	Content
   Tester Connection	CV+ (T13-2) - CV - (T13-1)
   Tool Setting	0.2 V/DIV., 0.2 μsec./DiV.
   Condition	Power switch ON (IG), shift lever R position

   Fig 2: Television Camera Assembly Waveform Oscilloscope Pulse

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

NG: REPAIR TELEVISION CAMERA ASSEMBLY

OK: Go to next step

1. Disconnect the M14 display connector,
2. Disconnect the T13 camera connector,
3. Measure the resistance of the wire harness side connectors.

   Standard resistance

   MULTI-DISPLAY - TELEVISION CAMERA



   Tester Connection	Specified Condition
   M14-29 (CA+) - T13-4 (CB+)	Below 1 Ω
   M14-30 (CGND) - T13-3 (CGND)	Below 1 Ω
   M14-27 (V+) - T13-2 (CV+)	Below 1 Ω
   M14-28 (V-) - T13-1 (CV-)	Below 1 Ω
   M14-29 (CA+) - Body ground	10 kΩ or higher
   M14-27 (V+) - Body ground	10 kΩ or higher
   M14-28 (V-) - Body ground	10 kΩ or higher

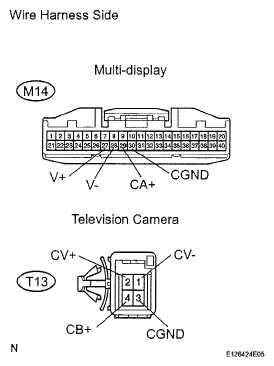

   Fig 3: Identifying M14 Display Connector

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

NG: REPAIR OR REPLACE HARNESS AND CONNECTOR

OK: PROCEED TO NEXT INSPECTION PROCEDURE SHOWN IN PROBLEM SYMPTOMS TABLE
