DTC B1785 Front Occupant Classification Sensor LH Collision Detection: Wiring Diagram

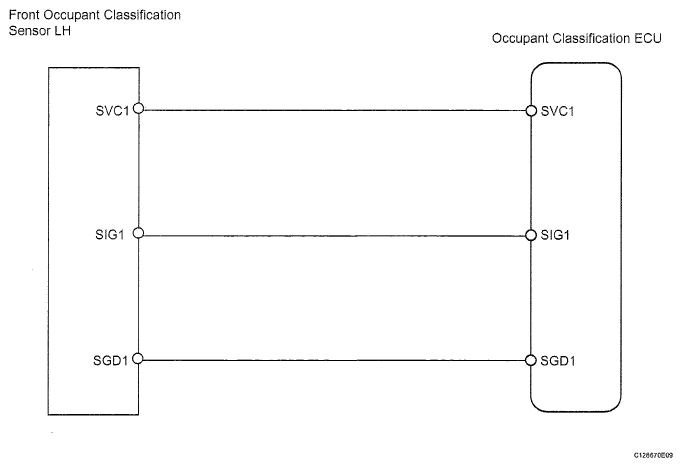

Fig 1: Front Occupant Classification Sensor LH Collision Detection - Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
