Cruise Control Main Switch: Components

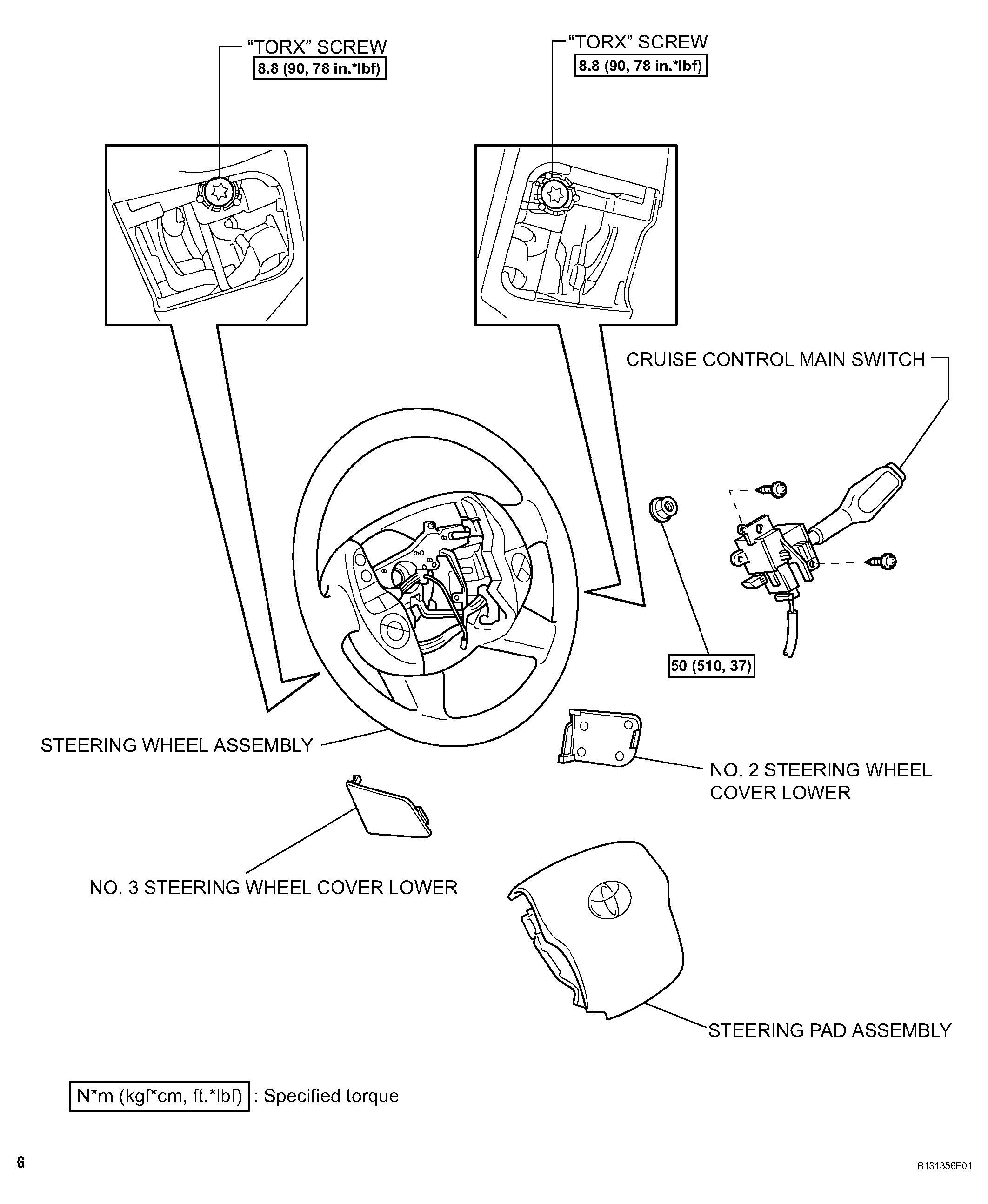

Fig 1: Cruise Control Main Switch Replacement Components -- With Torque Specification
G04475762Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
