Cruise Control Main Switch: Inspection

INSPECT CRUISE CONTROL MAIN SWITCH

Measure the resistance of the switch.

Standard resistance

STANDARD RESISTANCE CHART

Tester Connection	Switch Condition	Specified Condition
1 - 3	+RES	210 to 270 Ω
	-SET	560 to 700 Ω
	CANCEL	1,380 to 1,700 Ω
	ON-OFF button is on	Below 1 Ω
	ON-OFF button is off	10 kΩ or higher

If the result is not as specified, replace the switch assembly.

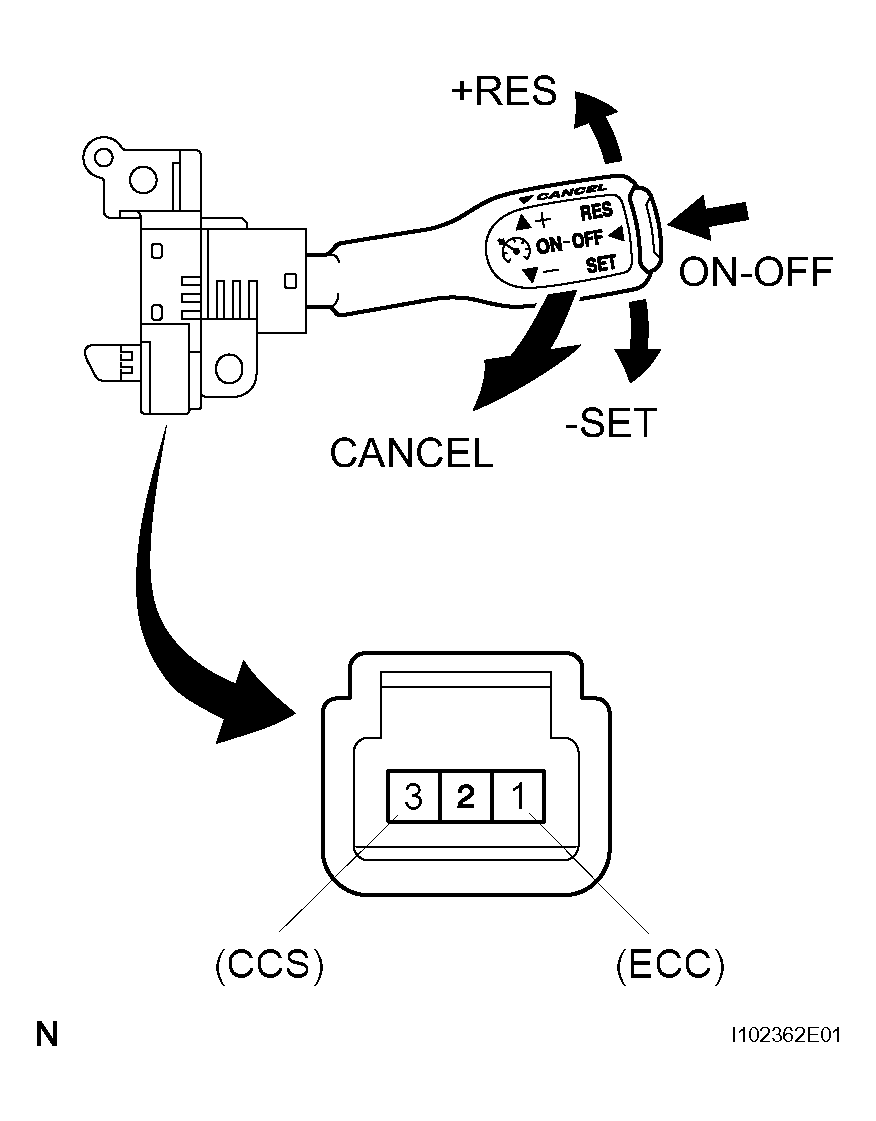

Fig 1: Inspecting Cruise Control Main Switch And Connector

G04475764

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
