Cruise Control Main Switch: Removal

  1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
    CAUTION: Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to prevent airbag and seat belt pretensioner activation.
  2. REMOVE NO. 2 STEERING WHEEL COVER LOWER
  3. REMOVE NO. 3 STEERING WHEEL COVER LOWER
  4. REMOVE STEERING PAD ASSEMBLY
  5. REMOVE STEERING WHEEL ASSEMBLY
  6. REMOVE CRUISE CONTROL MAIN SWITCH
    1. Disconnect the connector.
    2. Remove the 2 screws and switch.

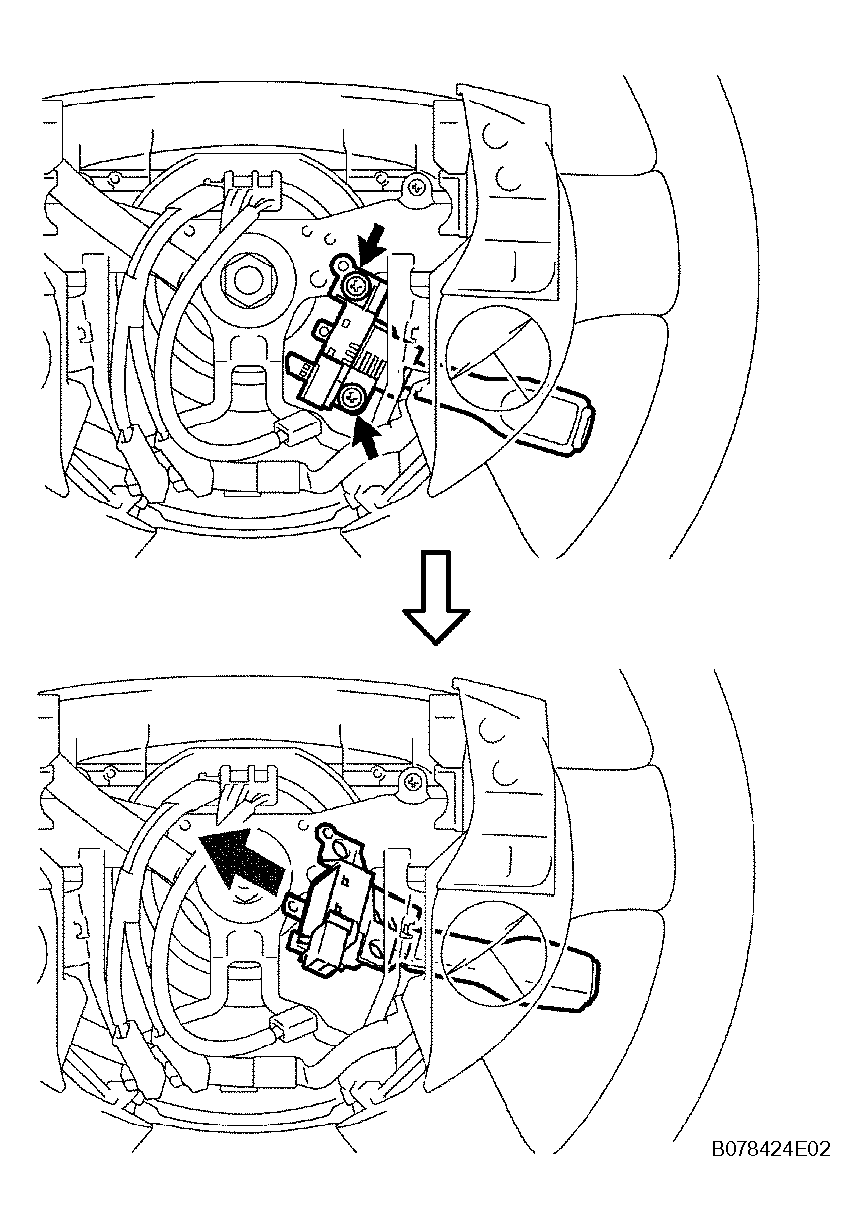

      Fig 1: Removing Cruise Control Main Switch
      G04475763Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
