Vehicle Speed Signal Circuit between Radio Receiver and Combination Meter: Wiring Diagram

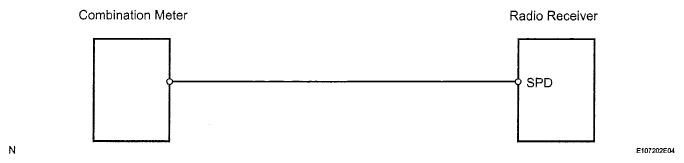

Fig 1: Vehicle Speed Signal Circuit Between Radio Receiver And Combination Meter Wiring Diagram
G05189850Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
