Radio Receiver: Components

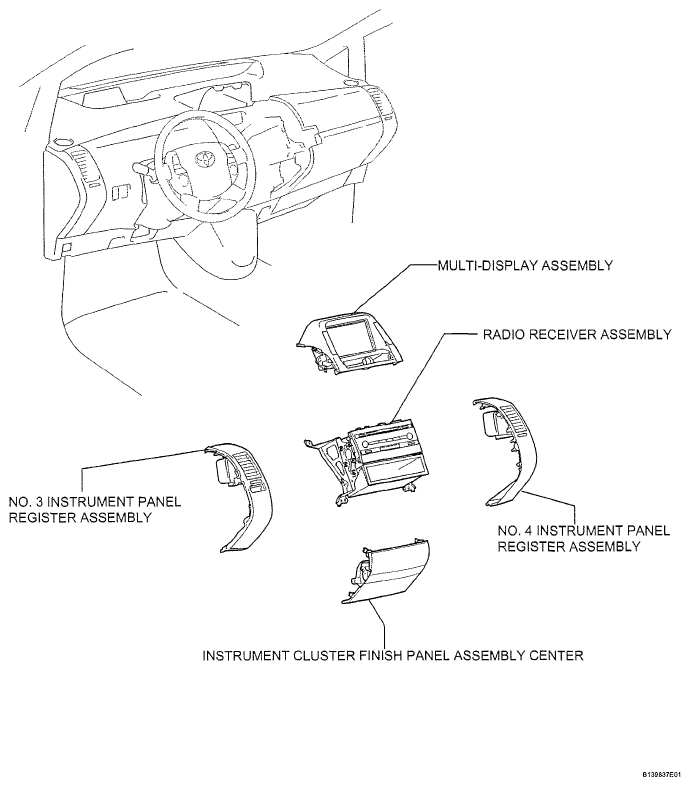

Fig 1: Identifying Radio Receiver Components (1 Of 2)
G05189916Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

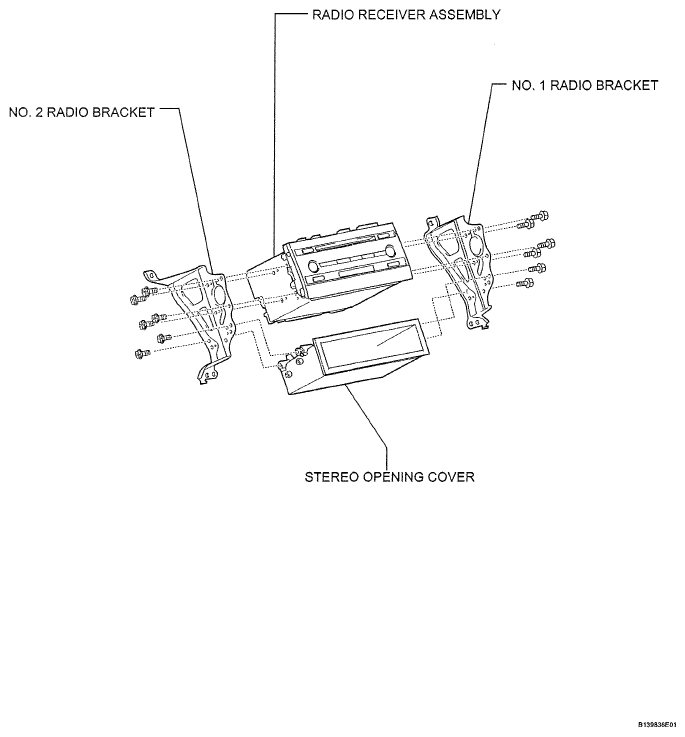

Fig 2: Identifying Radio Receiver Components (2 Of 2)
G05189917Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
