Display Signal Circuit between Multi-display and Television Camera Assembly: Wiring Diagram

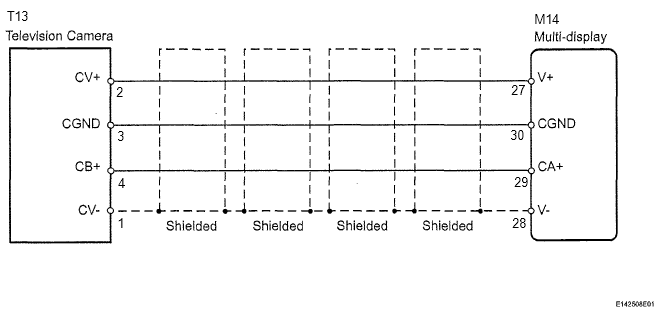

Fig 1: Multi-Display And Television Camera Assembly Signal Circuit - Wiring Diagram
G05190201Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
