Parts Location

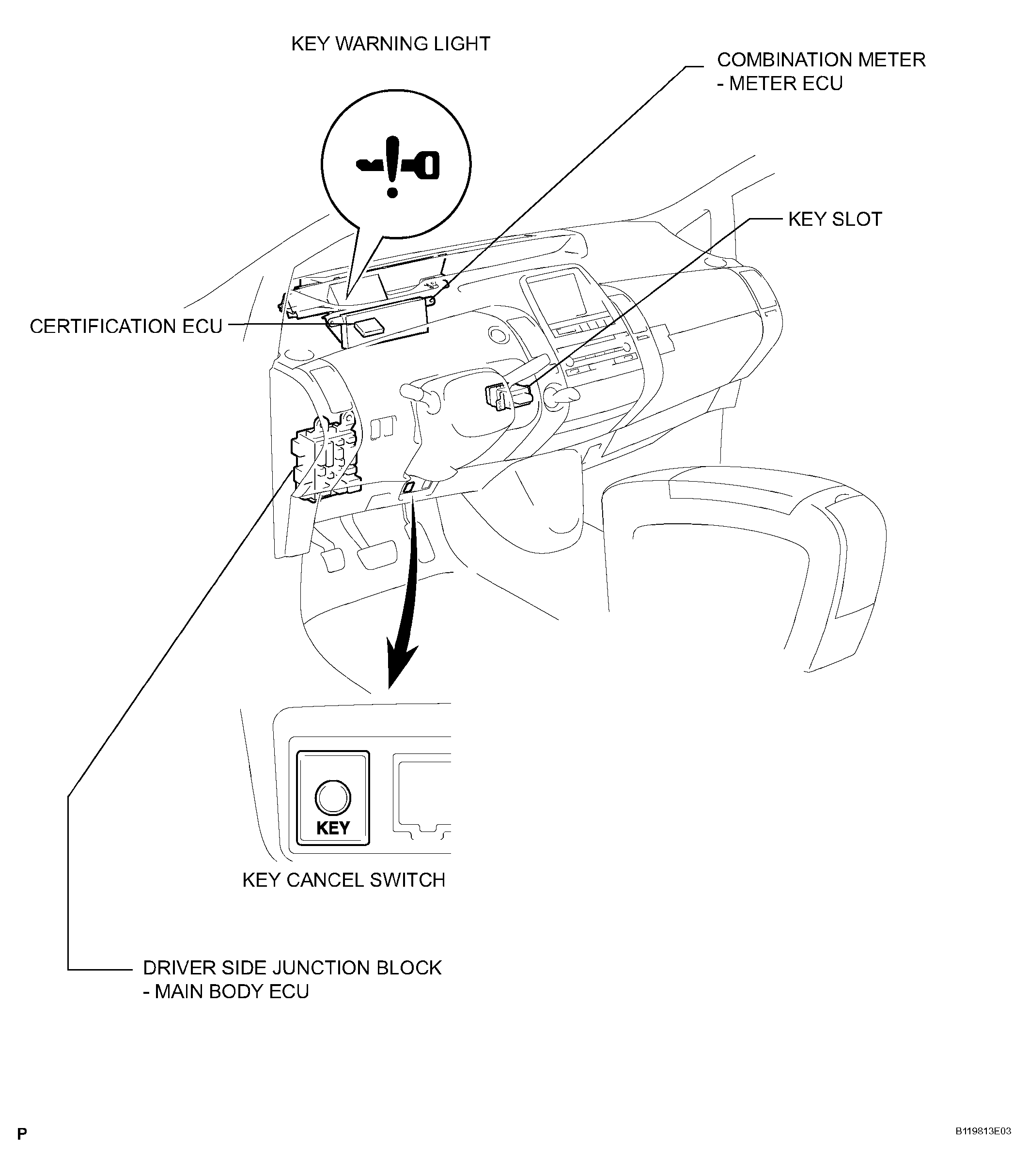

Fig 1: Identifying Smart Key System Components Part Location (1 Of 2)
G04476067Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

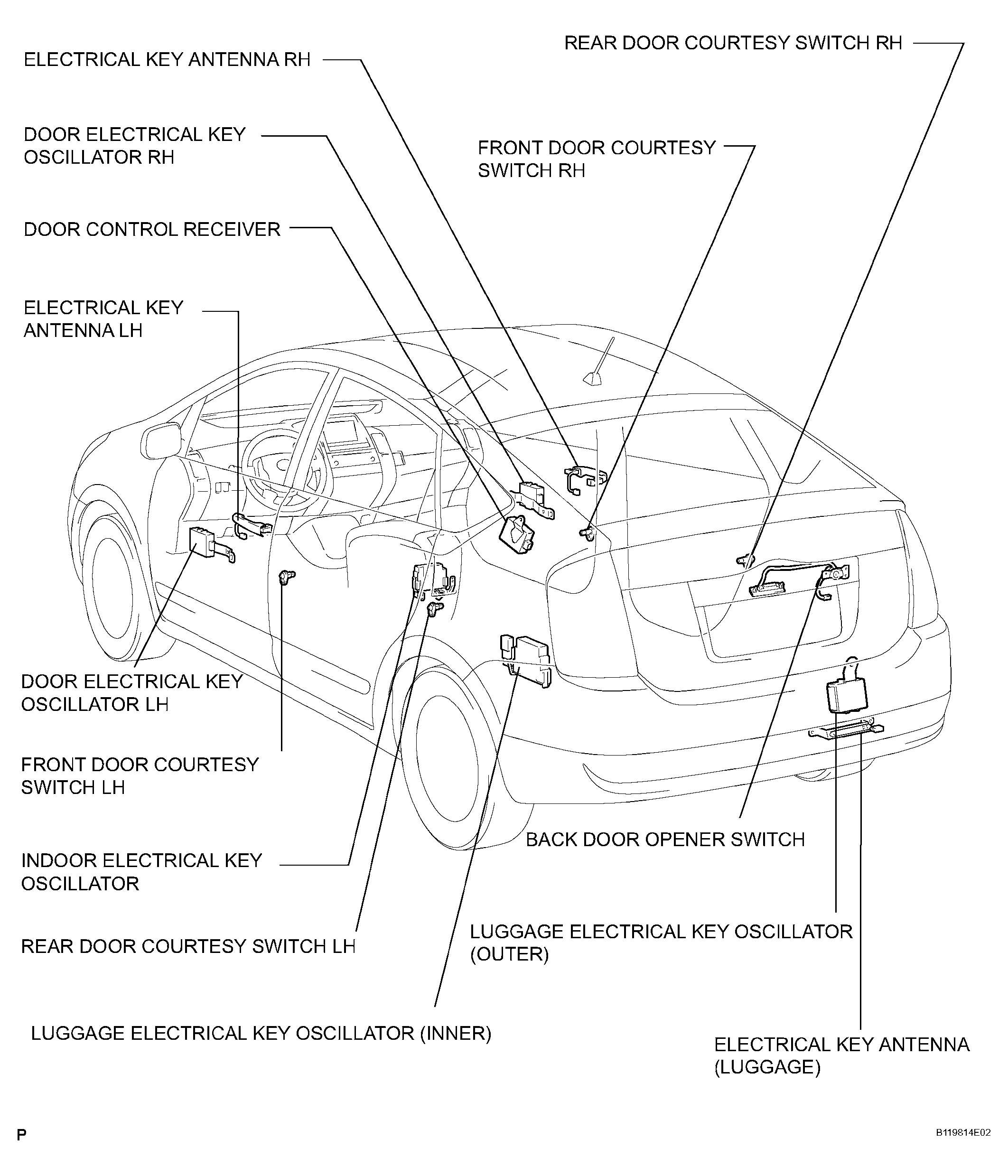

Fig 2: Identifying Smart Key System Components Part Location (2 Of 2)
G04476068Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
