Inspection Procedure

1. After turning the power switch OFF:
   1. If either front door is opened within 43 seconds but the power window can still operate, proceed to A.
   2. If 43 seconds pass but the power window can still operate, proceed to B.

B : REPLACE POWER WINDOW REGULATOR MASTER SWITCH ASSEMBLY

A : GO TO NEXT STEP

1. Connect the intelligent tester (with CAN VIM) to the DLC3.
2. Turn the power switch ON (IG) and press the intelligent tester main switch ON.
3. Read the DATA LIST according to the displays on the tester.

   Multiplex network body ECU

   DATA LIST



   Item	Measurement Item/Range (Display)	Normal Condition	Diagnostic Note
   D DOR CTY SW	Driver side door courtesy light switch signal / ON or OFF	ON: Driver side door is open OFF: Driver side door is closed	-
   P DOR CTY SW	Passenger side door courtesy light switch signal / ON or OFF	ON: Passenger side door is open OFF: Passenger side door is closed	-

   OK : ON (door is open) appears on the screen.

OK : REPLACE DRIVER SIDE JUNCTION BLOCK ASSEMBLY

NG : GO TO NEXT STEP

1. Measure the resistance.

   Standard voltage

   TERMINALS RESISTANCE SPECIFICATION



   Tester Connection	Switch Condition	Specified Condition
   1 - Switch body	Pushed	10 kΩ or higher
   1 - Switch body	Not pushed	Below 1 Ω

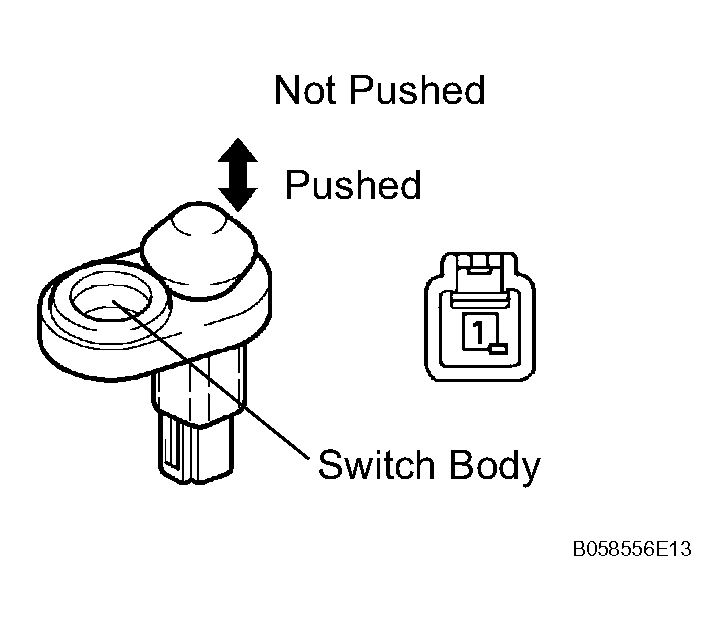

   Fig 1: Inspecting Front Door Courtesy Light Switch Assembly

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

NG : REPLACE FRONT DOOR COURTESY LIGHT SWITCH ASSEMBLY

OK : GO TO NEXT STEP

1. Disconnect the D7*1 or D8*2 switch connector.
2. Disconnect the 1D junction block connector.
3. Measure the resistance of the wire harness side connectors.

   Standard resistance

   TERMINALS RESISTANCE SPECIFICATION



   Tester Connection	Specified Condition
   D7-1 - 1D-21 (DCTY)	Below 1 Ω
   D8-1 - 1D-24 (PCTY)	Below 1 Ω
   D7-1 - Body ground	10 kΩ or higher
   D8-1 - Body ground	10 kΩ or higher

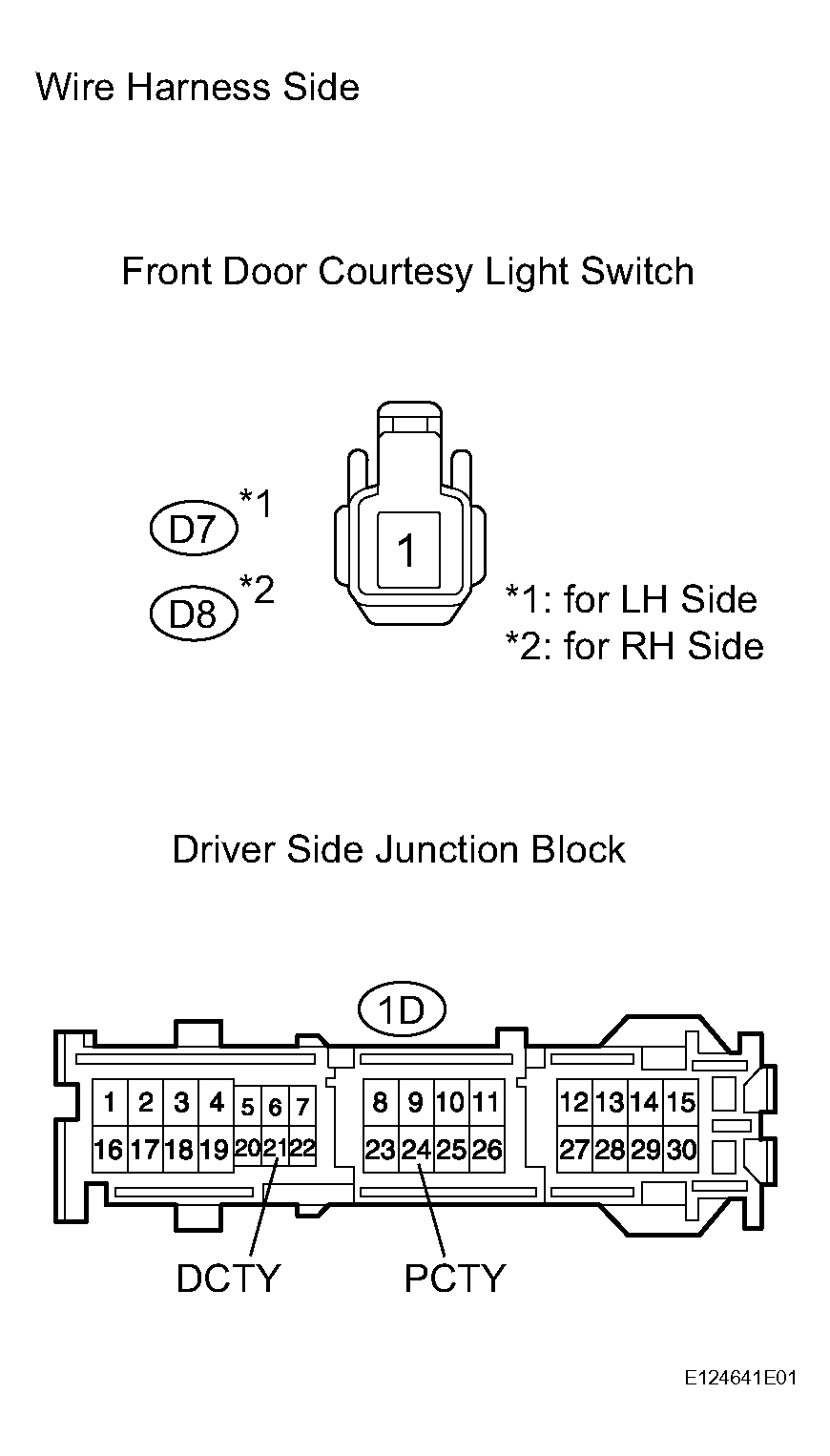

   Fig 2: Identifying 1D Driver Side Junction Block Connector

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

NG : REPAIR OR REPLACE HARNESS AND CONNECTOR

OK : REPLACE DRIVER SIDE JUNCTION BLOCK (BODY ECU)
