Front Axle Hub Bolt: Installation

HINT:

• Use the same procedures for the RH side and LH side.
• The procedures listed below are for the LH side.

1. INSTALL FRONT AXLE HUB BOLT LH
   1. Insert a new hub bolt into the bolt hole. Set a plate washer and nut on the hub bolt end.
   2. Using a screwdriver or equivalent to hold the front axle, install the hub bolt by tightening the nut. Then remove the nut and plate washer.
   3. Remove the 2 temporary nuts.

      HINT:

      A plate washer of 5 mm (0.21 in.) or more in thickness is preferable.

2. INSTALL FRONT DISC

   HINT:

   Align the matchmarks of the front disc and front axle hub before installing them.

3. INSTALL FRONT DISC BRAKE CALIPER ASSEMBLY LH (See  INSTALLATION  )
4. INSTALL FRONT WHEEL

   Torque: 103 N*m (1,050 kgf*cm, 76 ft.*lbf)

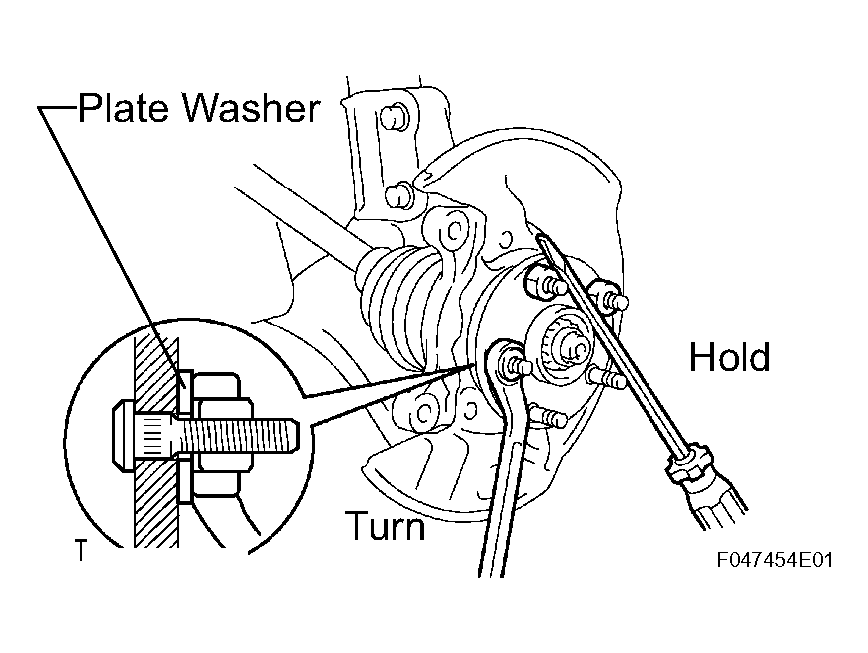

   Fig 1: Installing Front Axle Hub Bolt
