Front Axle Hub: Components

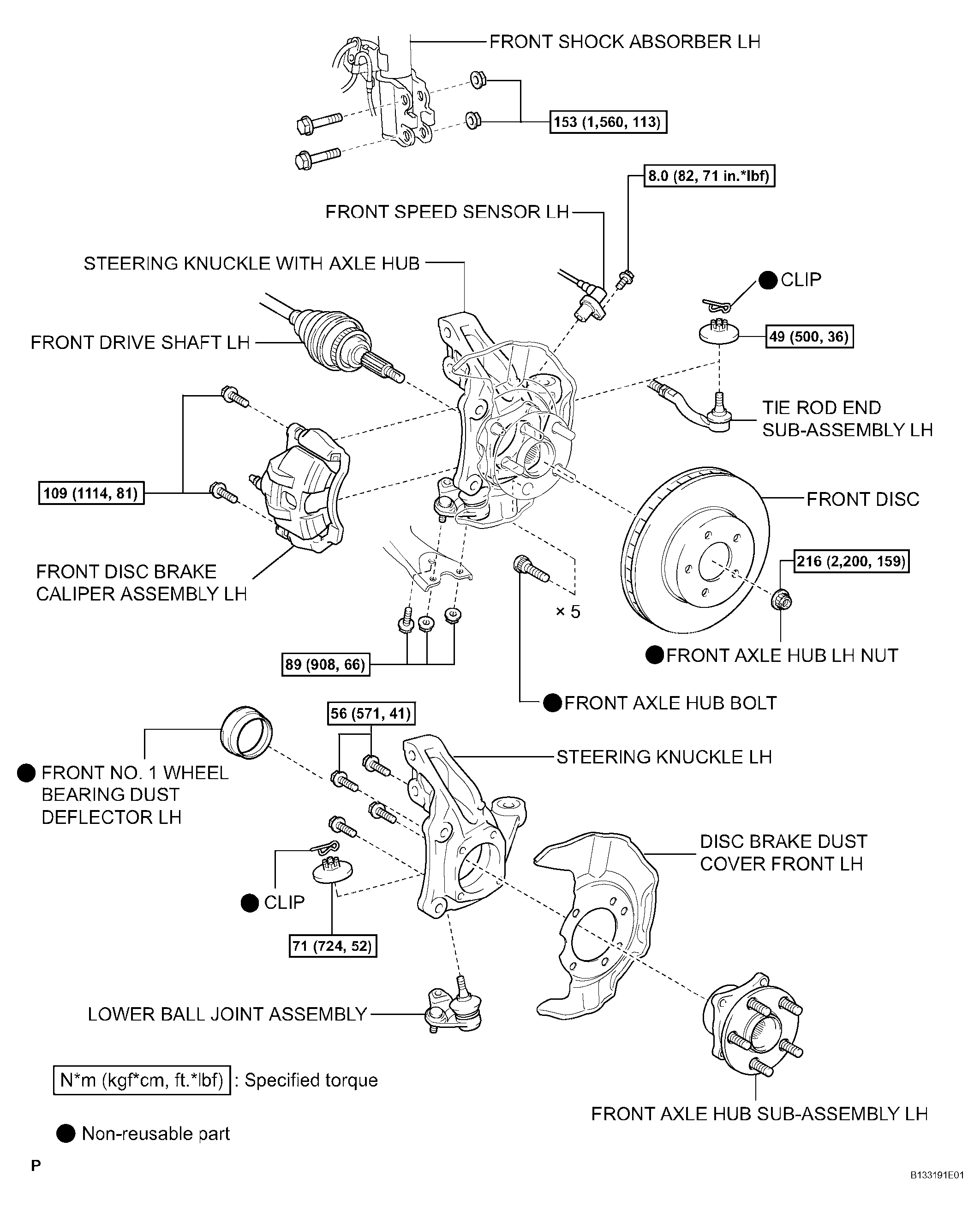

Fig 1: Front Axle Hub Replacement Components -- With Torque Specification
G04474367Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
