Front Seat Inner Belt Assembly: Inspection

  1. INSPECT FRONT SEAT INNER BELT ASSEMBLY (for Driver Side)
    1. Measure the resistance of the buckle switch.

      Standard resistance

      STANDARD RESISTANCE CHART

      Tester Connection Condition Specified Condition
      1 - 2 Seat belt is unfastened Below 1 Ω
      1 - 2 Seat belt is fastened 1 MΩ or higher

      If the result is not as specified, replace the belt assembly.

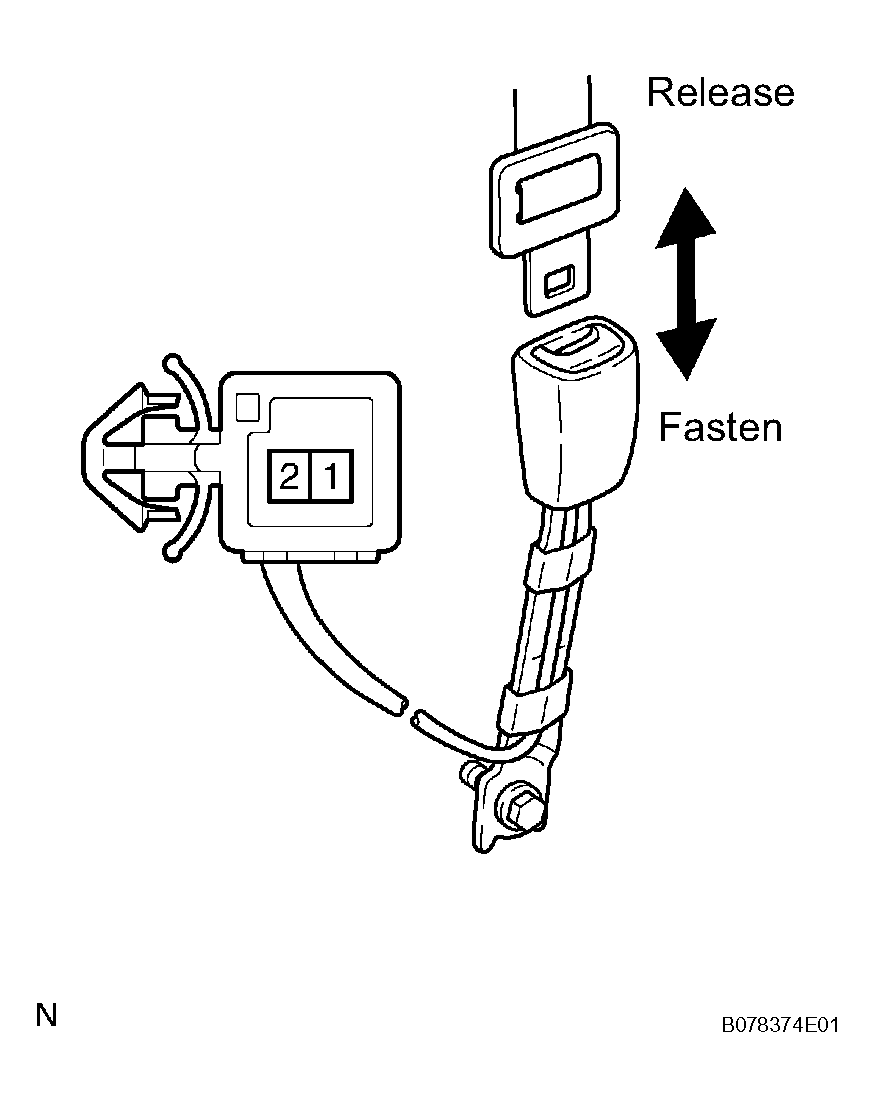

      Fig 1: Checking Buckle Switch
      G04475596Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
