Hybrid Vehicle Transaxle Assembly: Components

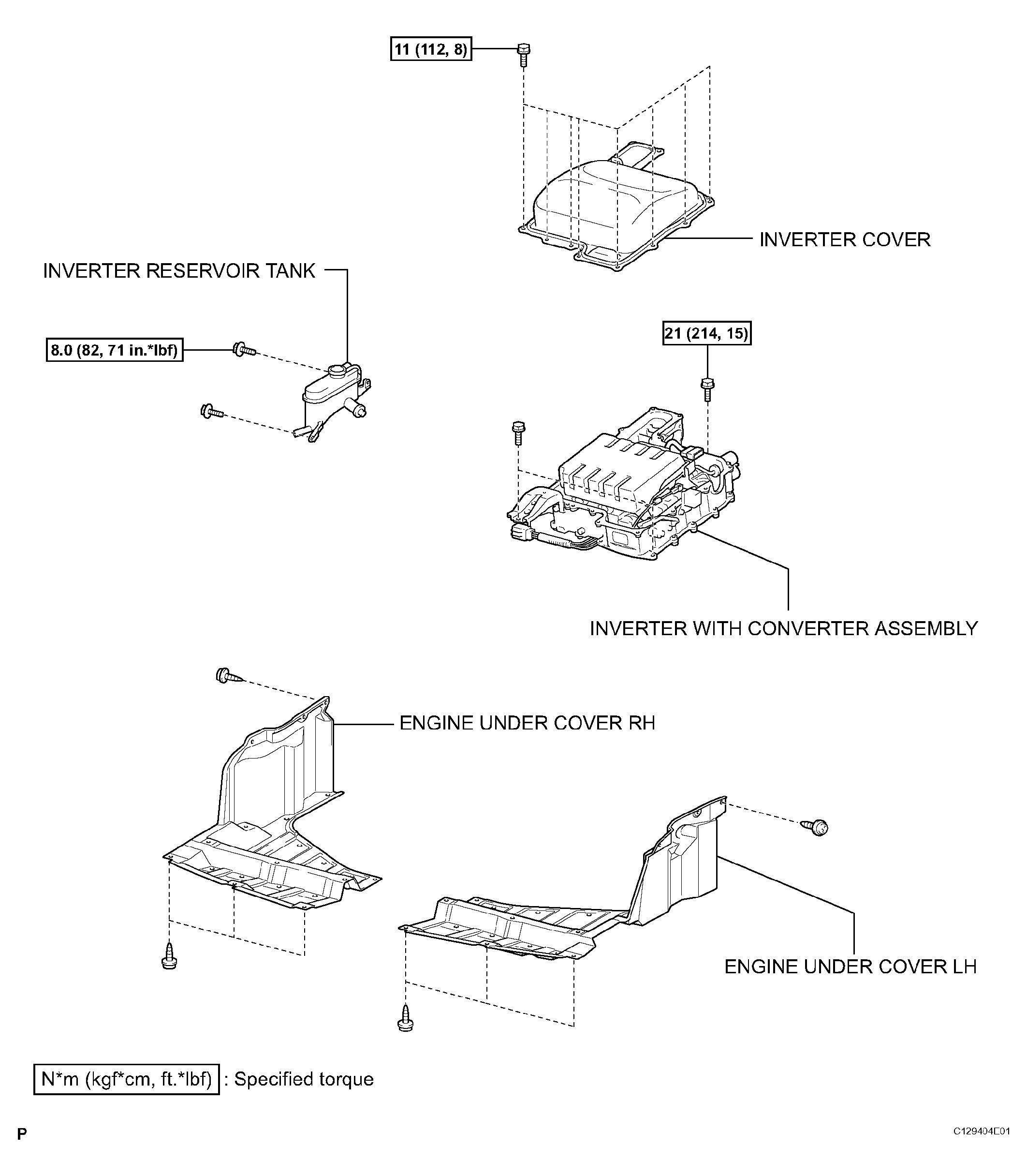

Fig 1: Hybrid Vehicle Transaxle Assembly Replacement Components With Torque Specifications (1 Of 2)
G04474104Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

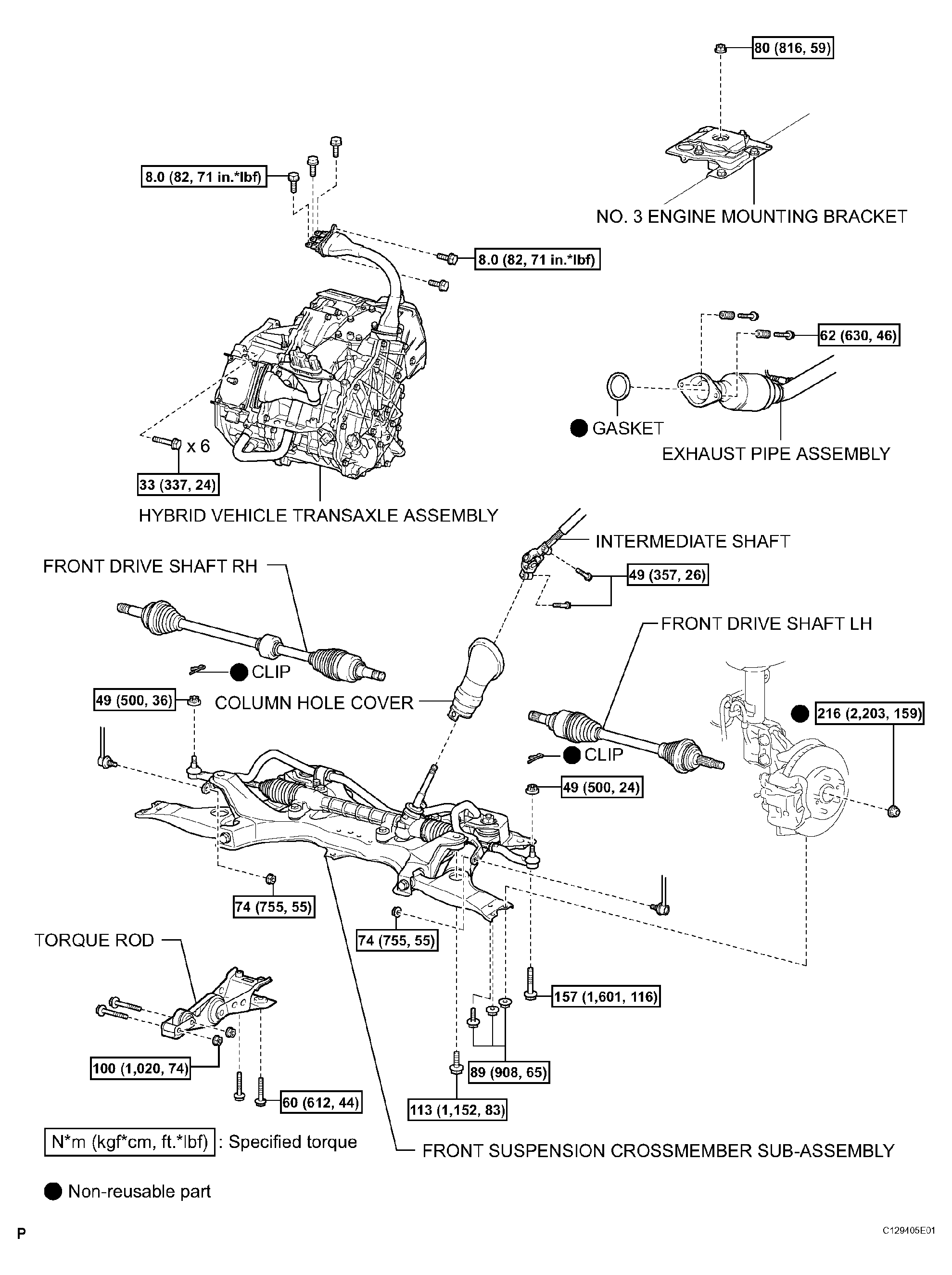

Fig 2: Hybrid Vehicle Transaxle Assembly Replacement Components With Torque Specifications (2 Of 2)
G04474105Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
