Cruise Control Switch: Service and Repair

Cruise Control Main Switch:

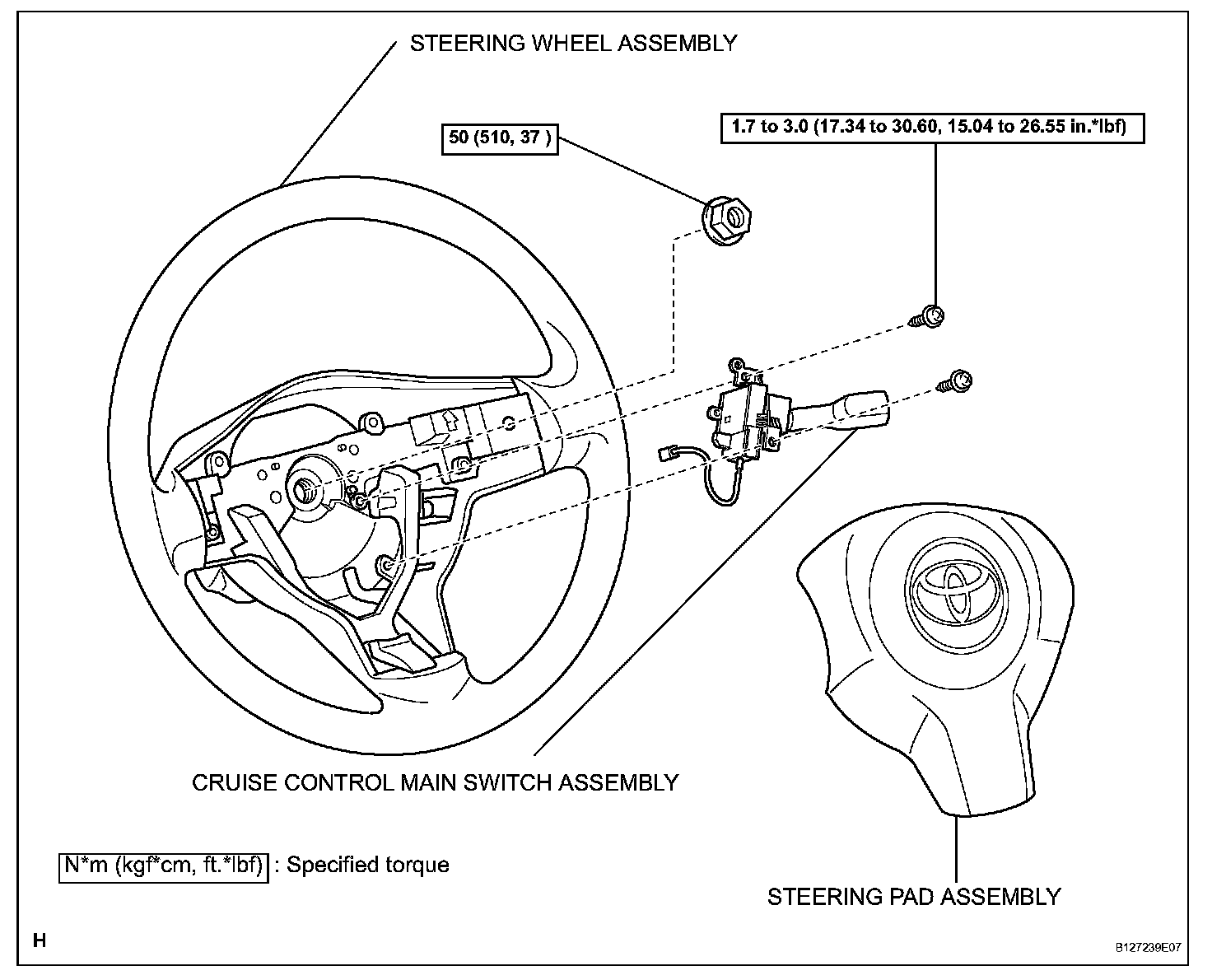

Cruise Control Main Switch

REMOVAL

CAUTION: Be sure to read the precautionary notices concerning the SRS airbag system before servicing it, Refer to Restraint Systems Service Precautions.

1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL

CAUTION: Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to prevent airbag and seat belt pretensioner activation.

2. REMOVE STEERING PAD ASSEMBLY
3. REMOVE CRUISE CONTROL MAIN SWITCH




a. Disconnect the connector.
b. Remove the 2 screws and switch.

INSTALLATION

1. INSTALL CRUISE CONTROL MAIN SWITCH




a. Install the switch with the 2 screws.

Torque: 1.7 to 3.0 N.m (17.34 to 30.60 kgf.cm, 15.04 to 26.55 in.lbf)

b. Connect the connector.

2. INSTALL STEERING PAD ASSEMBLY
3. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
4. CHECK SRS WARNING LIGHT

a. Check the SRS warning light.
