Electronic Brake Control Module

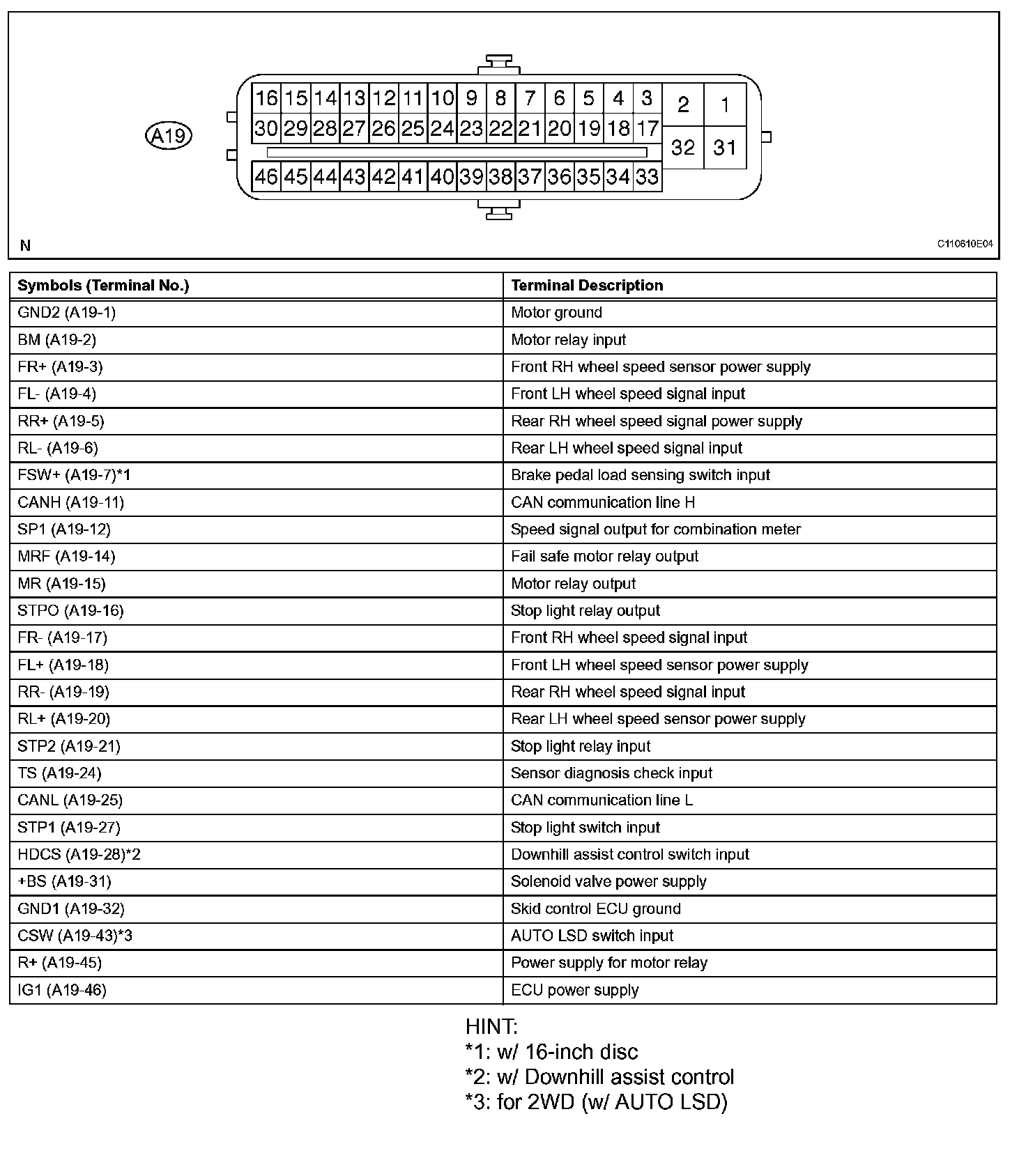

Terminals Of Control Module/Pinouts-Skid Control ECU:

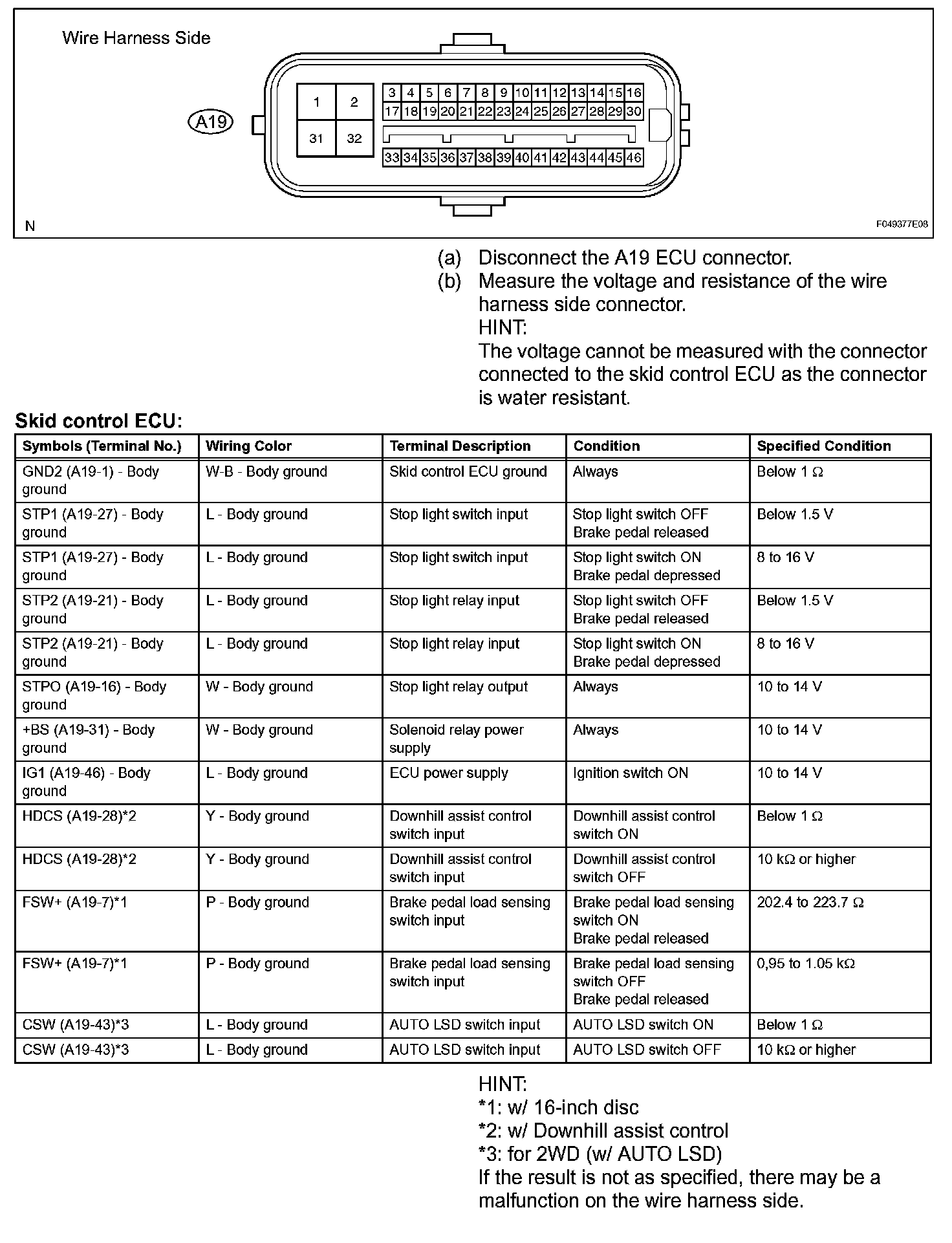

Terminals Of Control Module/Pinouts-Check Skid Control ECU:



Terminals Of Control Module/Pinouts-Check Instrument Panel Junction Block (Main Body ECU) (Part 1):

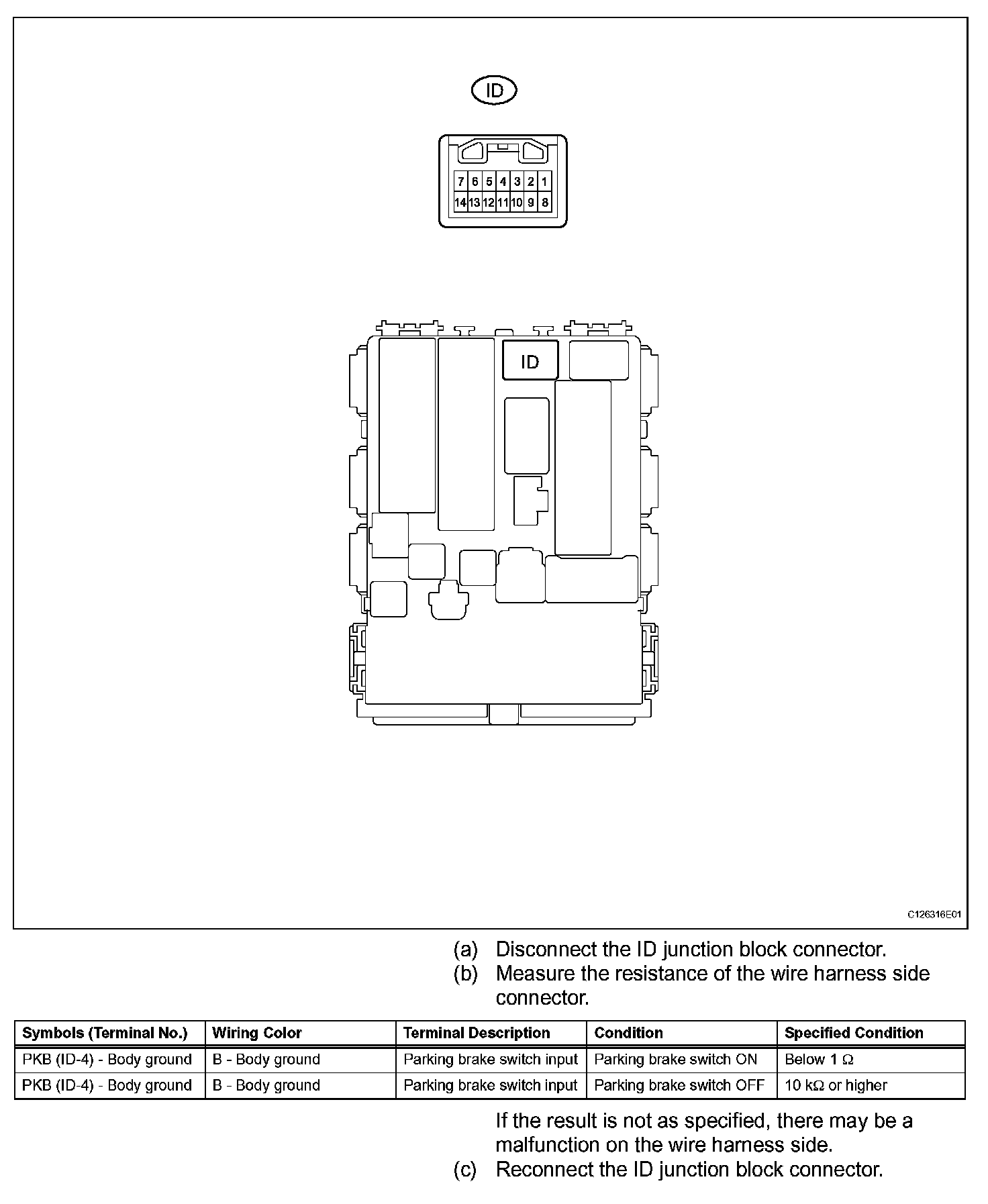

Terminals Of Control Module/Pinouts-Check Instrument Panel Junction Block (Main Body ECU) (Part 2):
