DTC C2111/11 Transmitter ID1 Operation Stop; DTC C2112/12 Transmitter ID2 Operation Stop; DTC C2113/13 Transmitter ID3 Operation Stop; DTC C2114/14 Transmitter ID4 Operation Stop; DTC C2115/15 Transmitter ID5 Operation Stop: Wiring Diagram

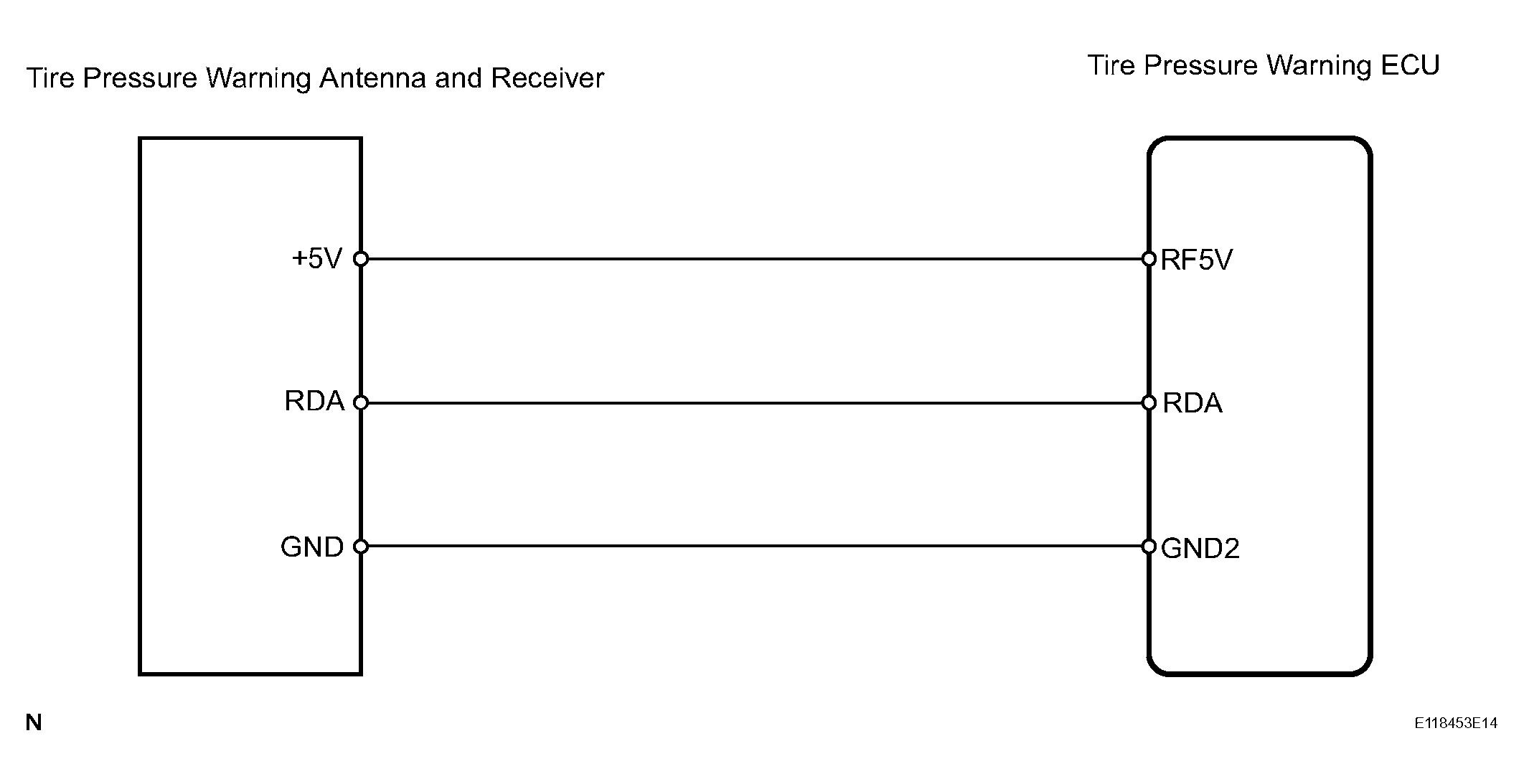

Fig 1: Tire Pressure Warning System - Wiring Diagram
G04489293Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
