Wiper Switch: Components

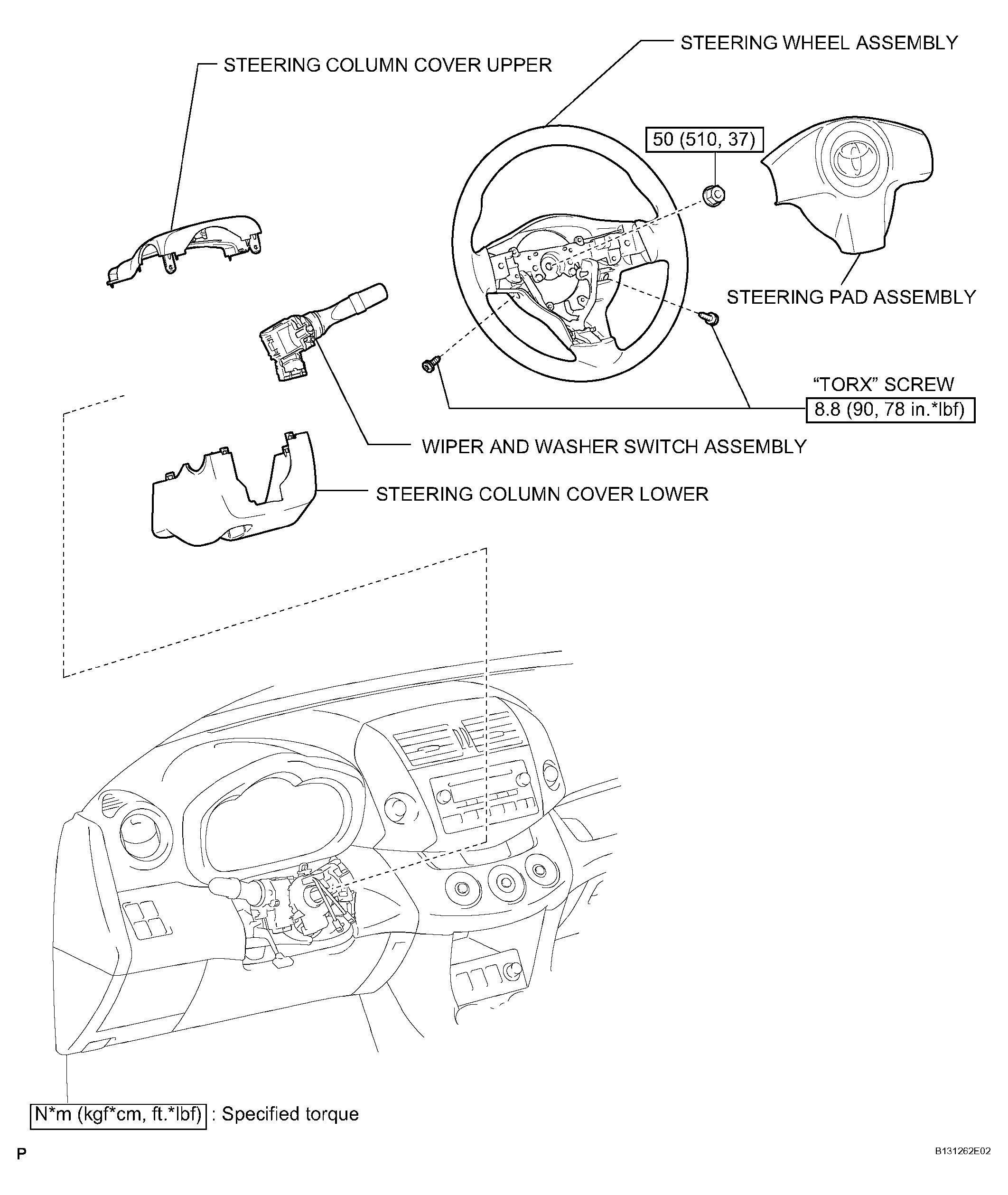

Fig 1: Locating Components With Torque Specifications

G04490985

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
