Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

Fig 1: Engine Compartment

G00421817

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 2: Dash

G00421816

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 3: Vehicle Overview

G00421818

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 4: Front Seats

G00421819

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 5: Engine Room R/B No. 1 (3.5L)

G00421820

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 6: Engine Room R/B No. 1 (2.4L)

G00421821

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 7: Engine Room R/B No. 2 (3.5L)

G00421822

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 8: Engine Room R/B No. 2 (2.4L)

G00421823

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 9: R/B No. 5

G00421824

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 10: R/B No. 6

G00421825

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

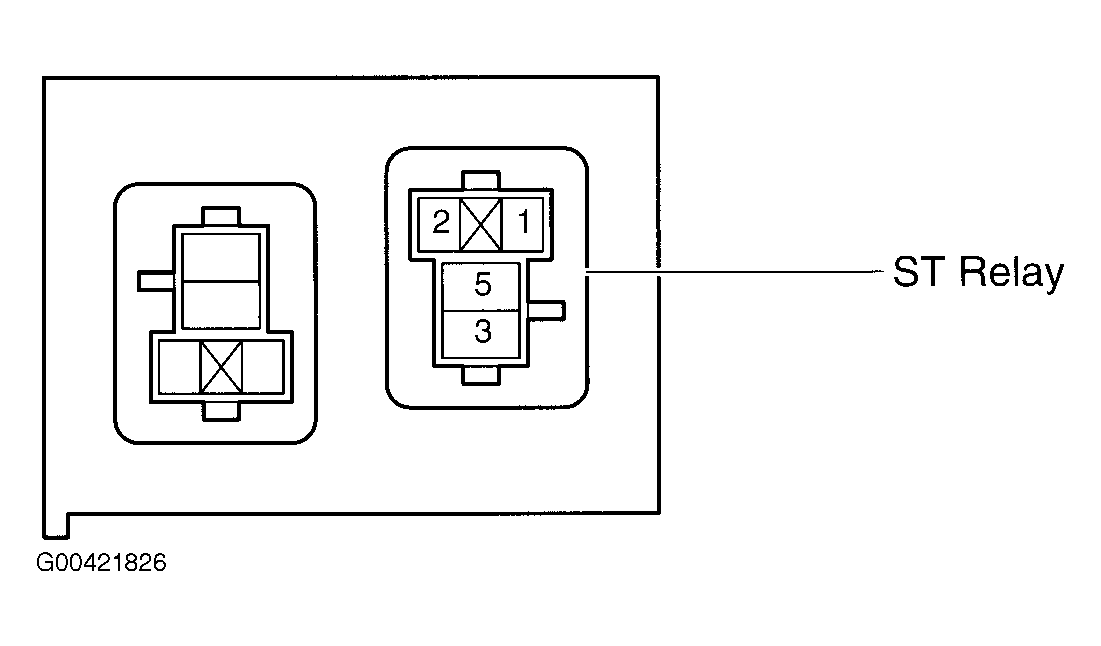

Fig 11: R/B No. 7

G00421826

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 12: Instrument Panel J/B

G00421827

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 13: Engine Compartment (3.5L)

G00421828

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 14: Engine Compartment (3.5L)

G00421829

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

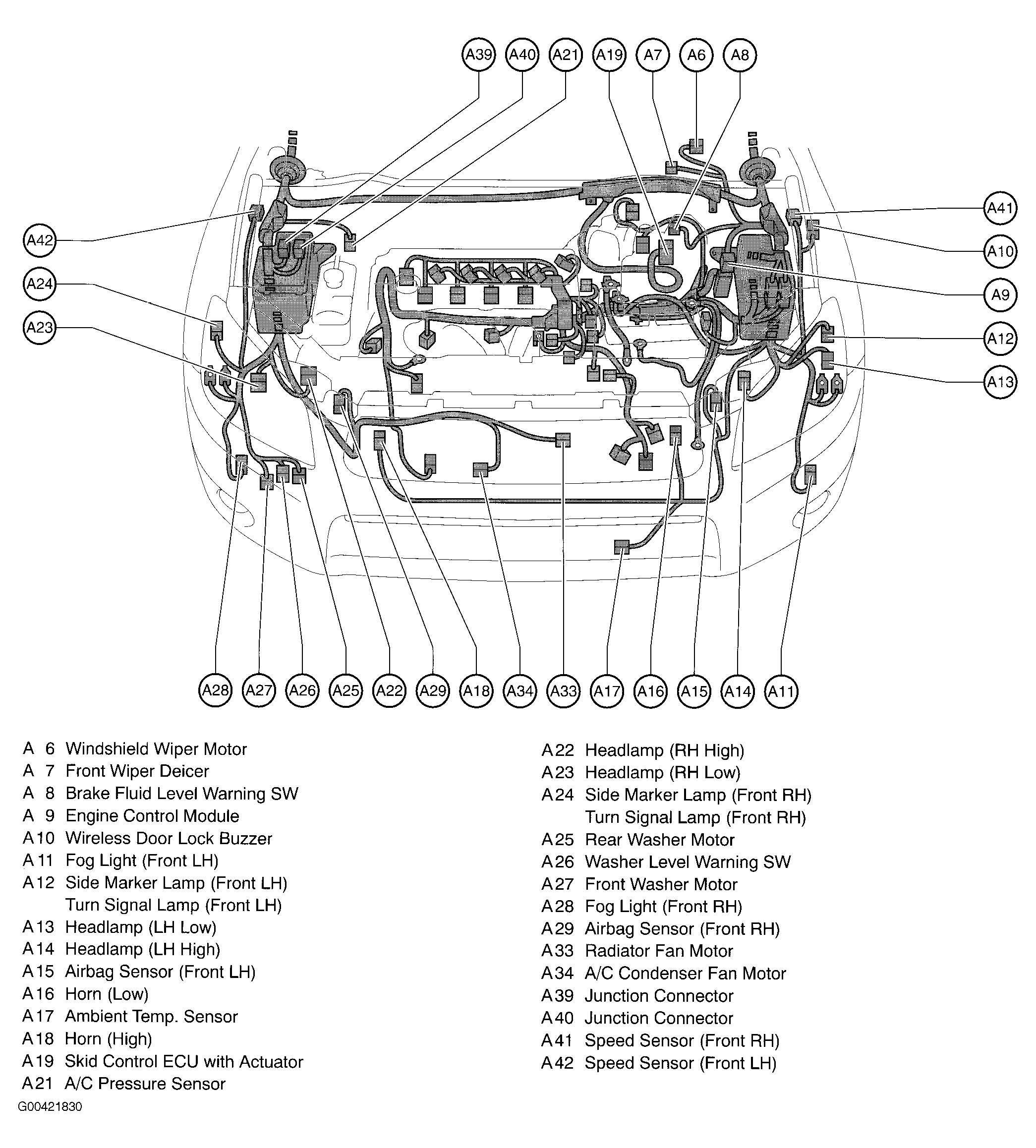

Fig 15: Engine Compartment (2.4L)

G00421830

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

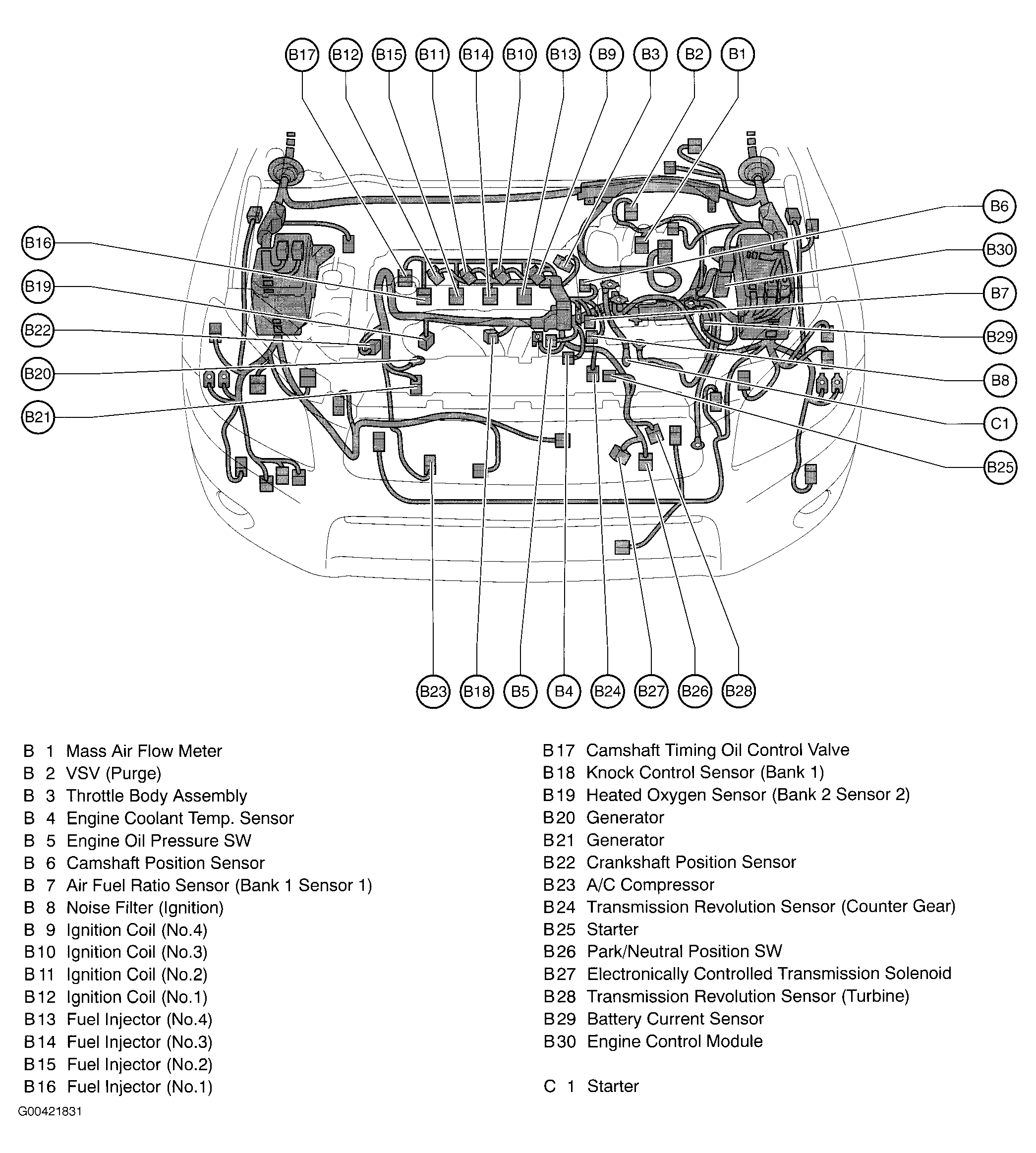

Fig 16: Engine Compartment (2.4L)

G00421831

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

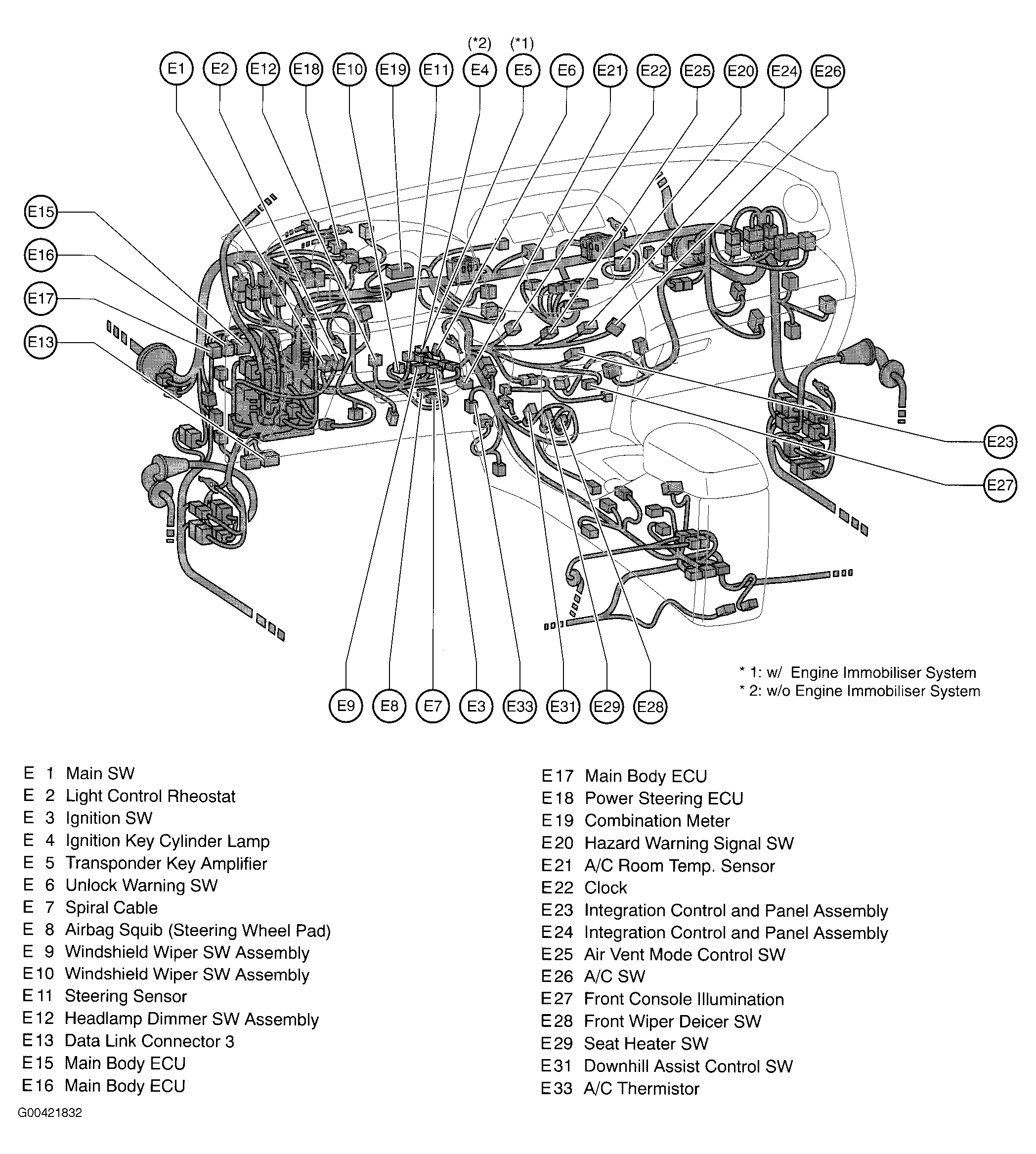

Fig 17: Dash

G00421832

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 18: Dash

G00421833

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 19: Dash

G00421834

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

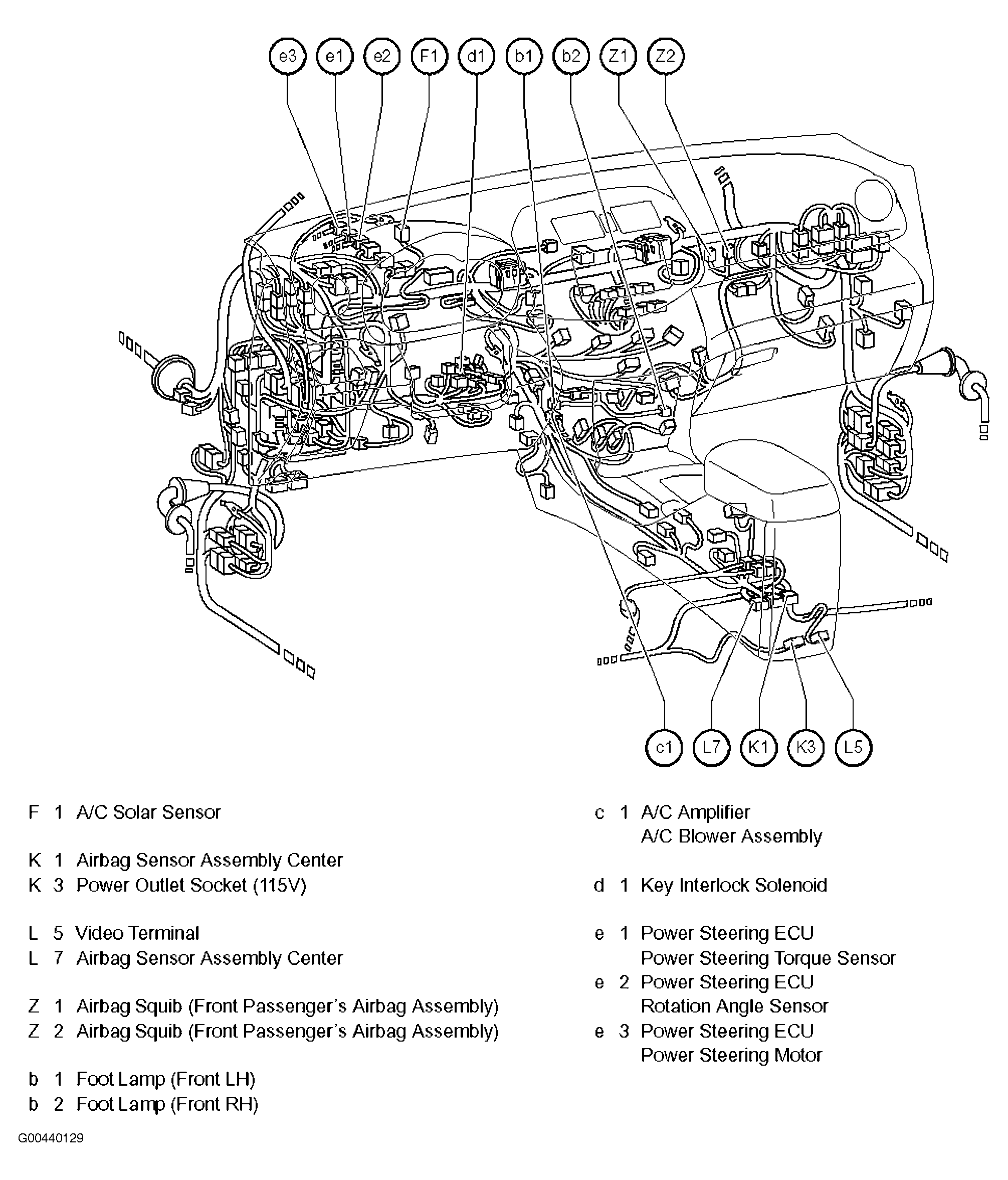

Fig 20: Dash

G00440129

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 21: Vehicle Overview

G00421836

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 22: Vehicle Overview

G00421837

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 23: Vehicle Overview

G00421838

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 24: Vehicle Overview

G00421839

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 25: Front Seats

G00421840

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 26: Engine Compartment (3.5L)

G00421841

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

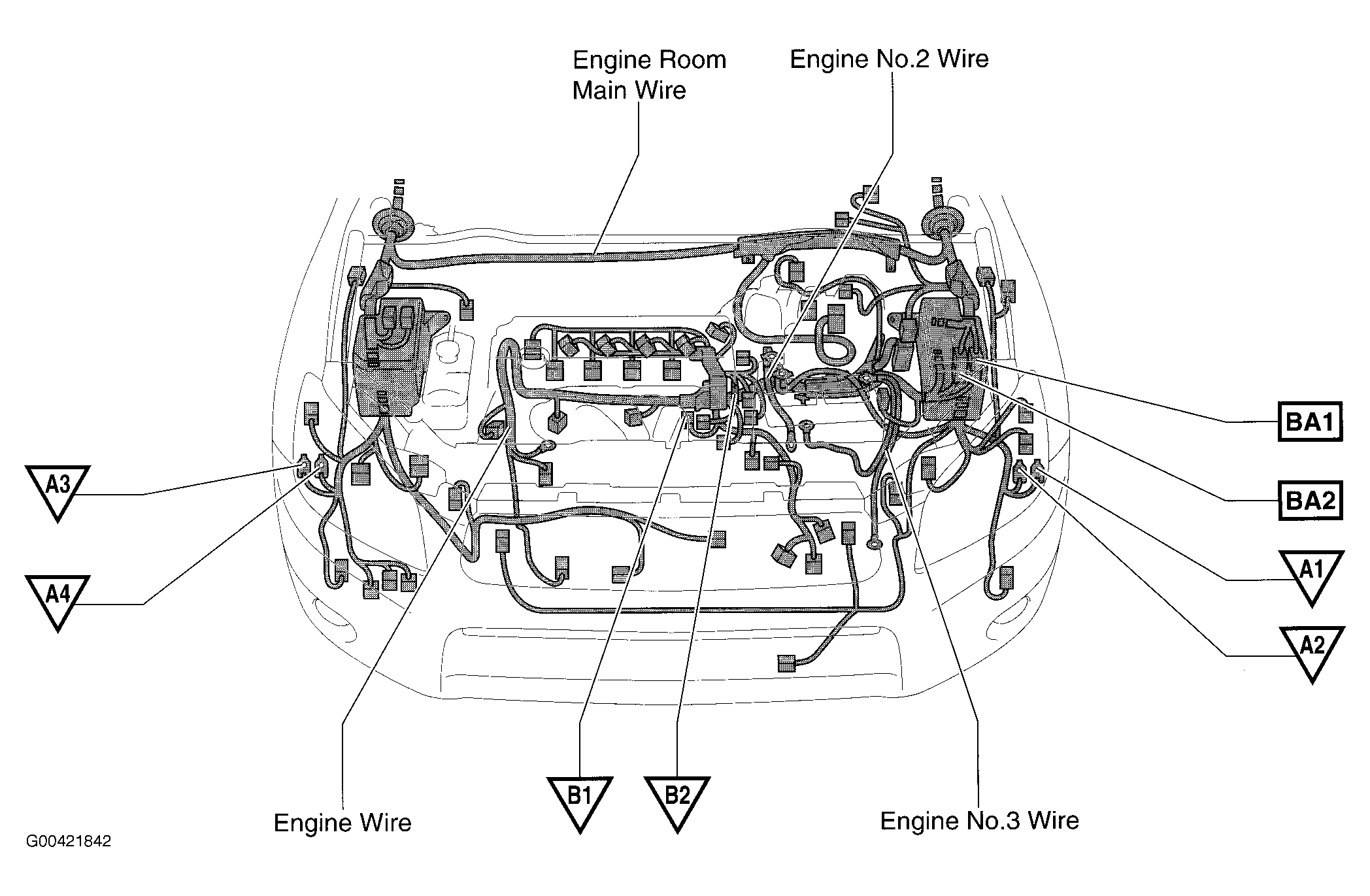

Fig 27: Engine Compartment (2.4L)

G00421842

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

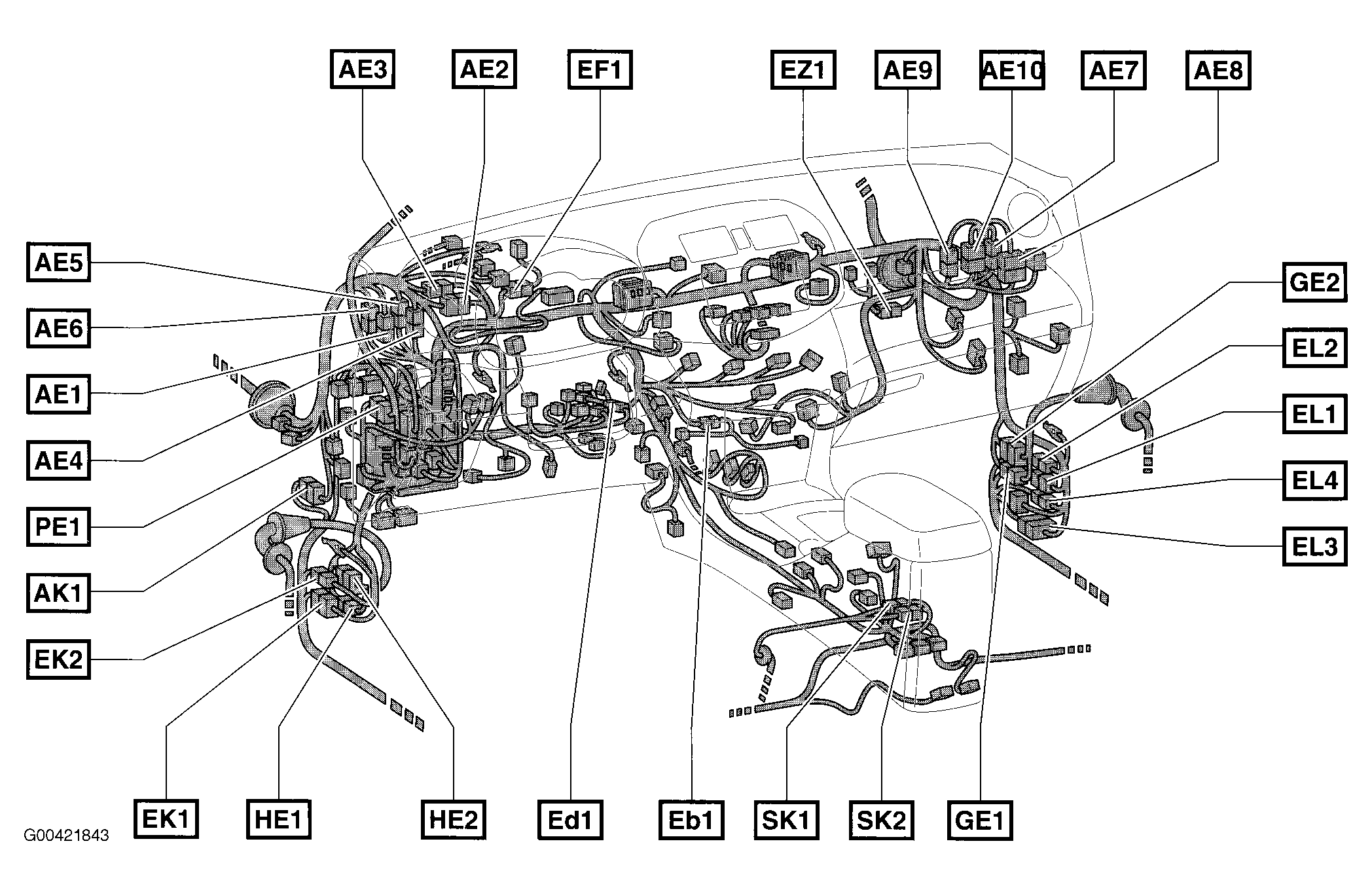

Fig 28: Dash

G00421843

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

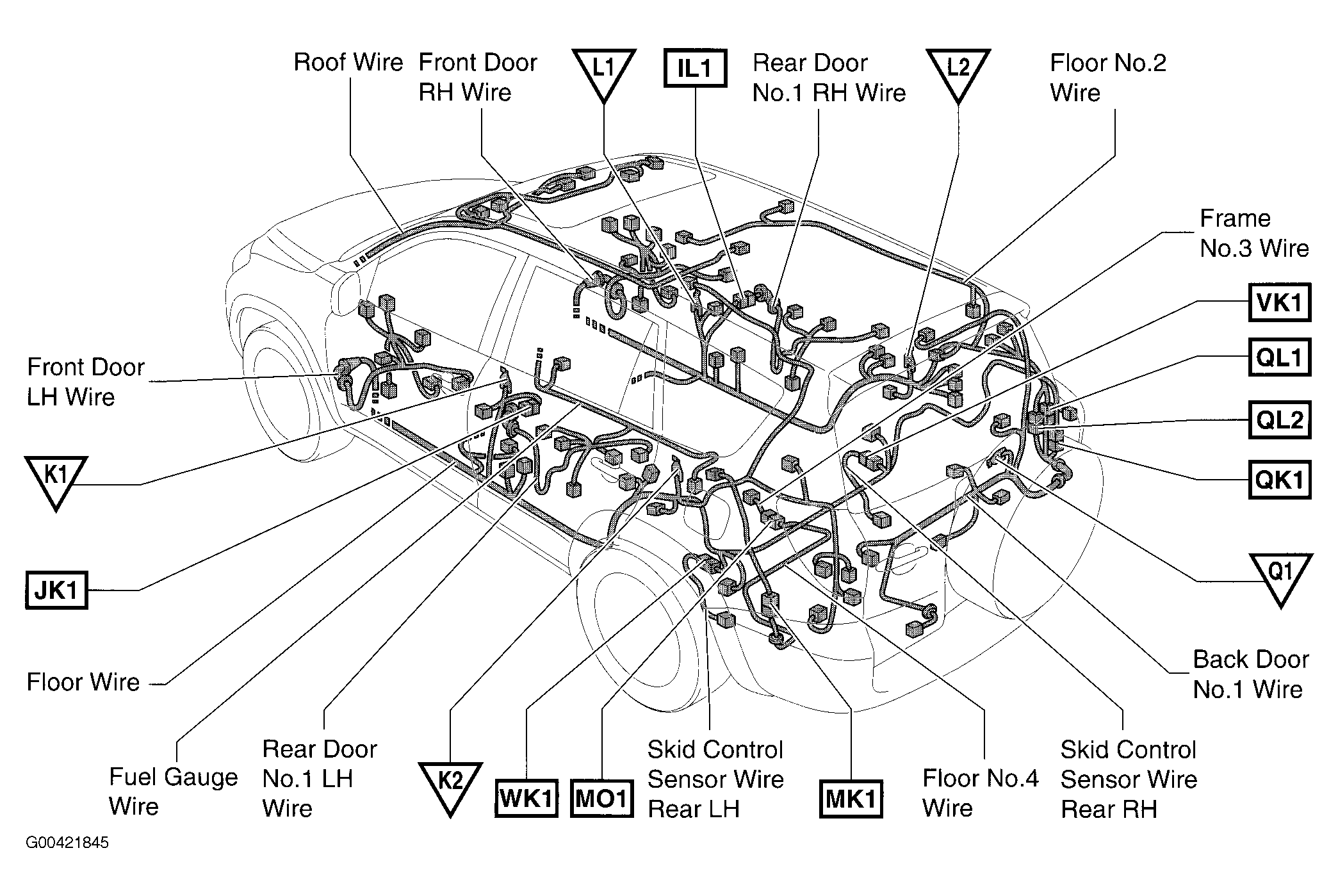

Fig 29: Vehicle Overview

G00421845

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 30: Seats

G00421846

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
