Transfer Assembly: Components

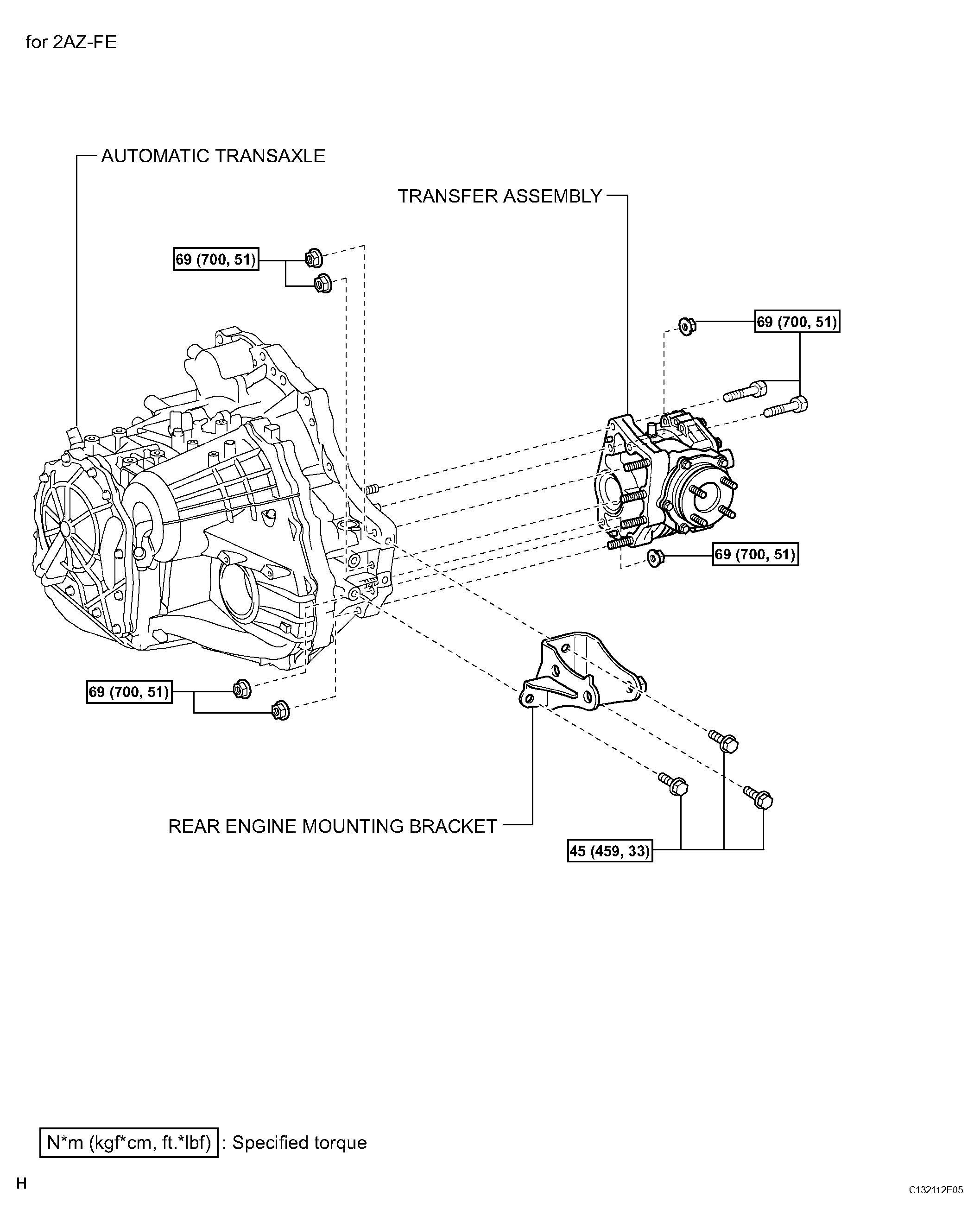

Fig 1: Transfer Assembly Replacement Components With Torque Specifications - 2AZ-FE (2006/01- )
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: Transfer Assembly Replacement Components With Torque Specifications - 2GR-FE (1 Of 3) (2006/01- )
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

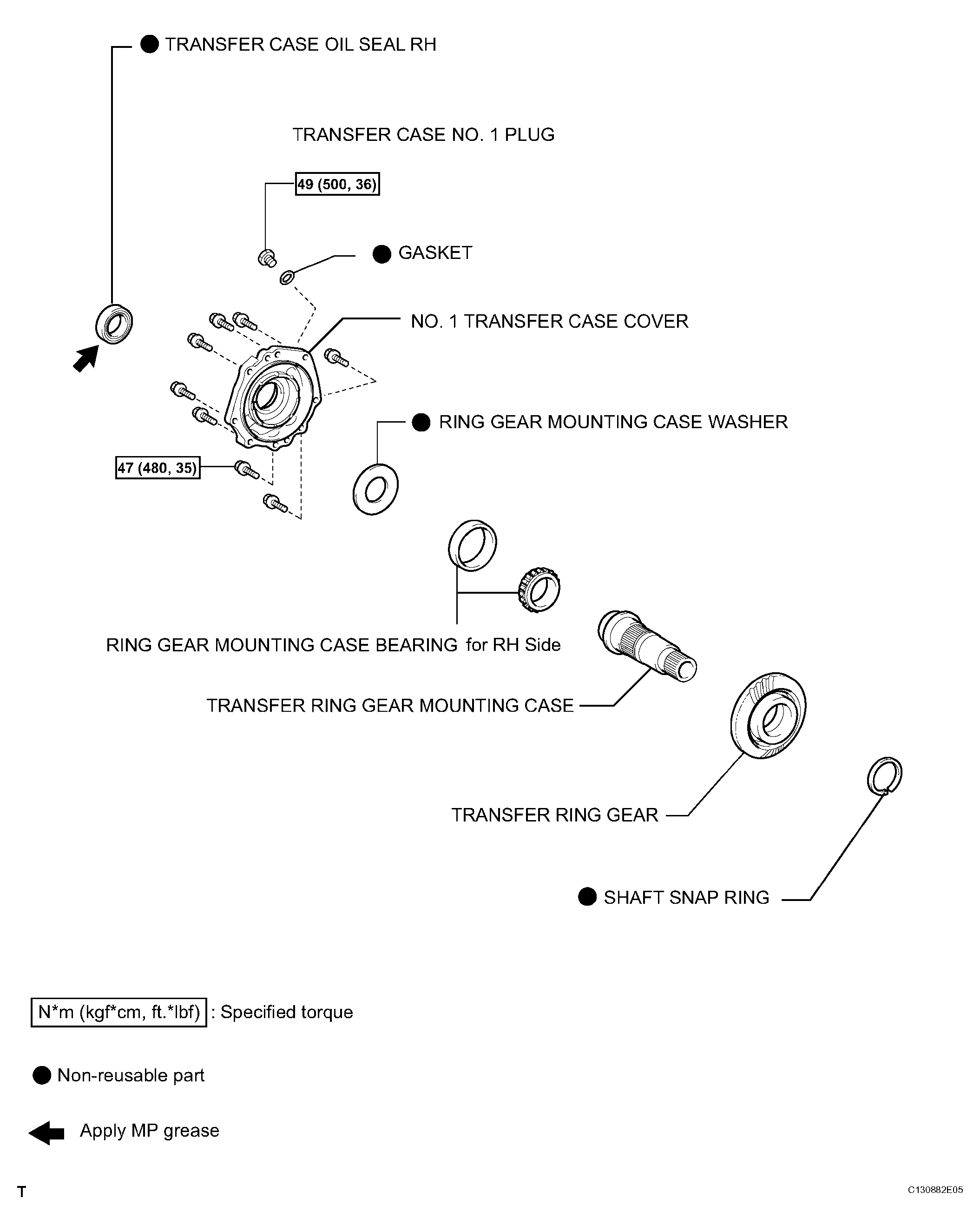

Fig 3: Transfer Assembly Replacement Components With Torque Specifications - 2GR-FE (2 Of 3) (2006/01- )
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

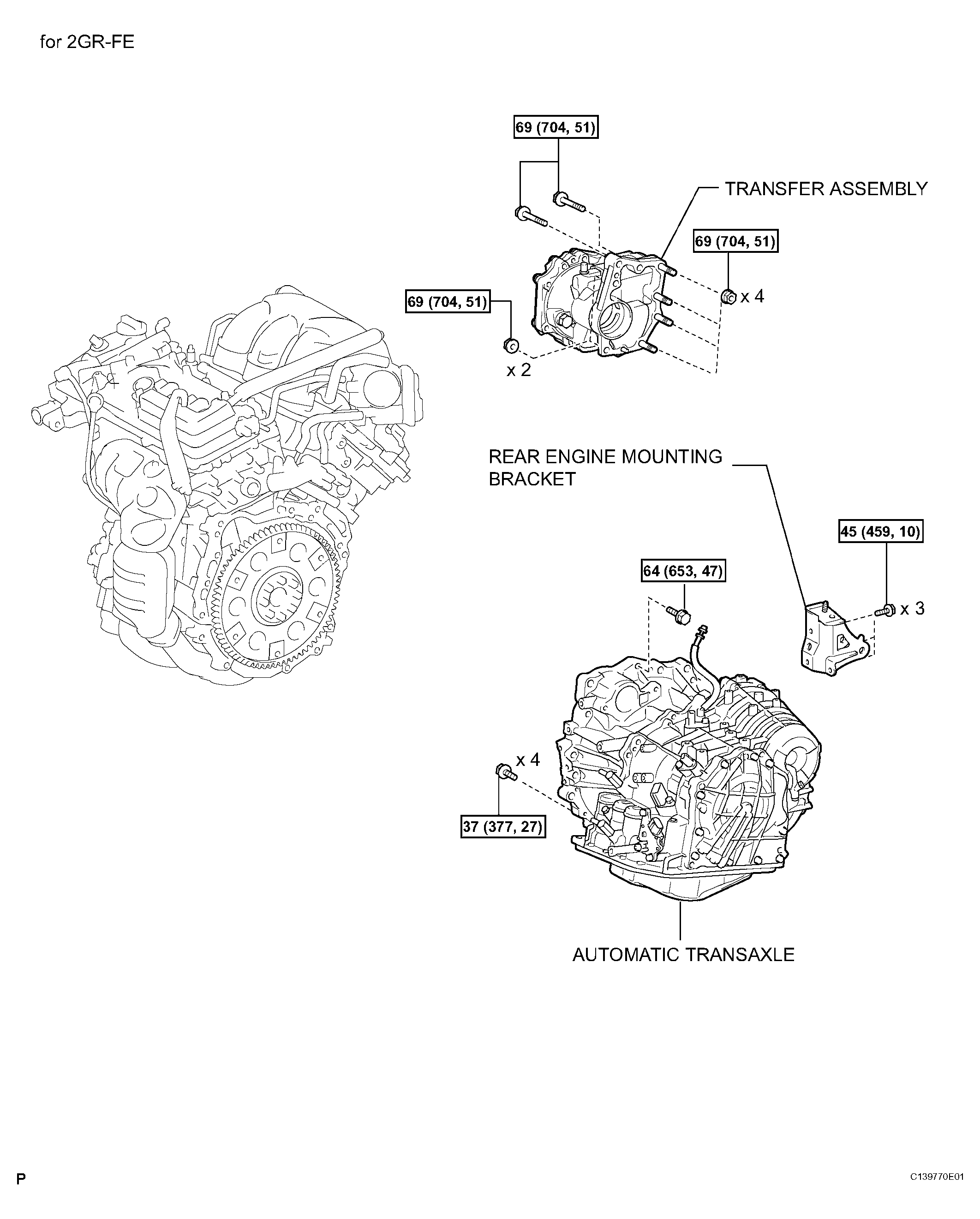

Fig 4: Transfer Assembly Replacement Components With Torque Specifications - 2GR-FE (3 Of 3) (2006/01- )
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
