Rear Power Outlet Socket: Components

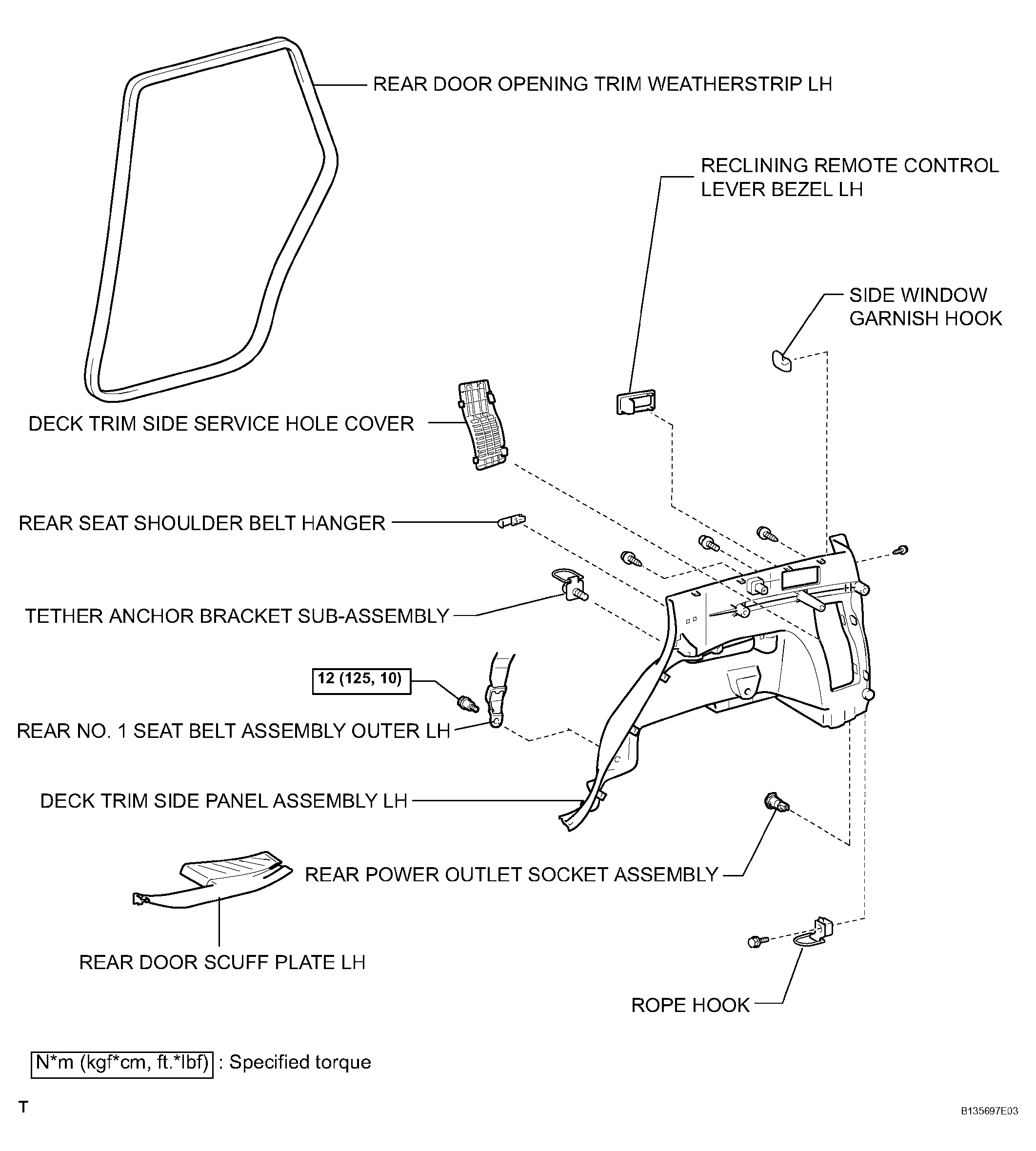

Fig 1: Identifying Rear Power Outlet Socket Components (1 Of 2)
G04491361Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: Identifying Rear Power Outlet Socket Components (2 Of 2)
G04491362Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
