Camshaft Position Sensor: Components

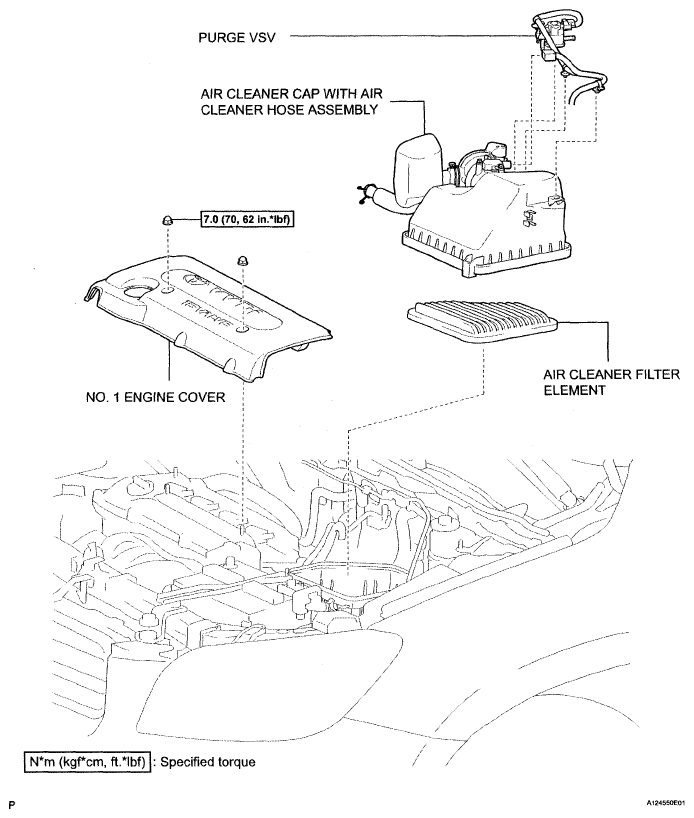

Fig 1: Camshaft Position Sensor Replacement Components With Torque Specifications (1 Of 2)
G05183806Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

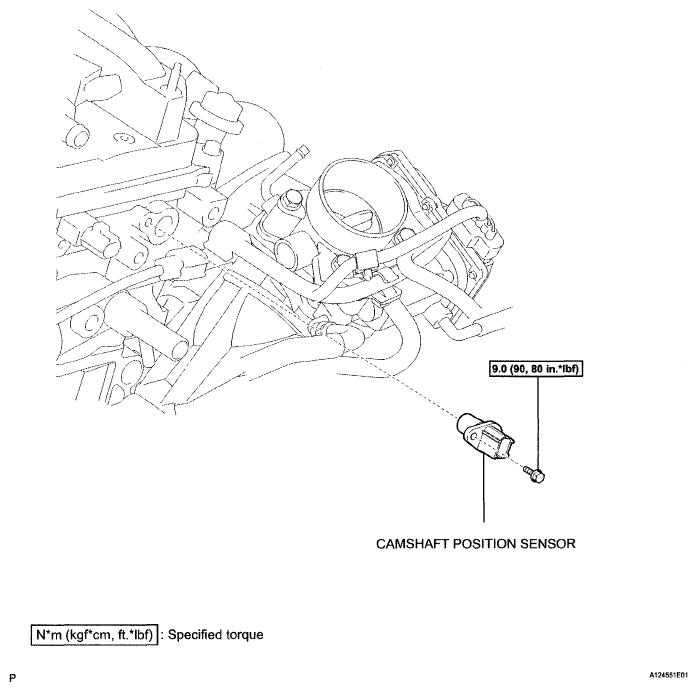

Fig 2: Camshaft Position Sensor Replacement Components With Torque Specifications (2 Of 2)
G05183807Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
