DTC P1550 Battery Current Sensor Circuit; DTC P1551 Battery Current Sensor Circuit Low; DTC P1552 Battery Current Sensor Circuit High: Wiring Diagram

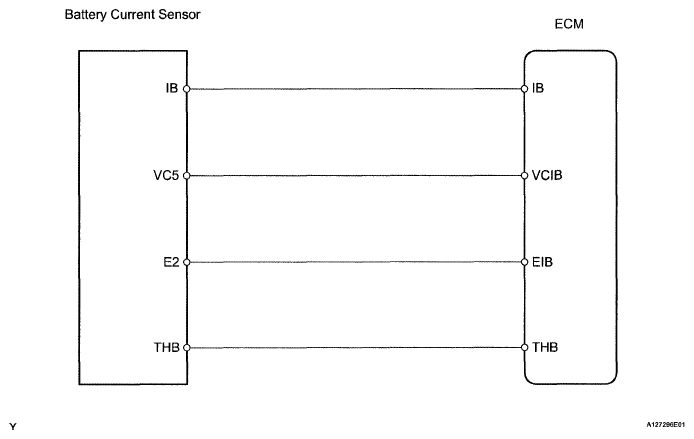

Fig 1: Battery Current Sensor Wiring Diagram
G05183649Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
