Toyota
>>
2007
>>
RAV4 Base, 2.4 D, AWD
>>
Repair and Diagnosis
>>
Engine Performance
>>
Engine Control System (2AZ-FE)
>>
SFI System
>>
Fuel Pump Control Circuit
>>
Wiring Diagram
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Fuel Pump Control Circuit: Wiring Diagram

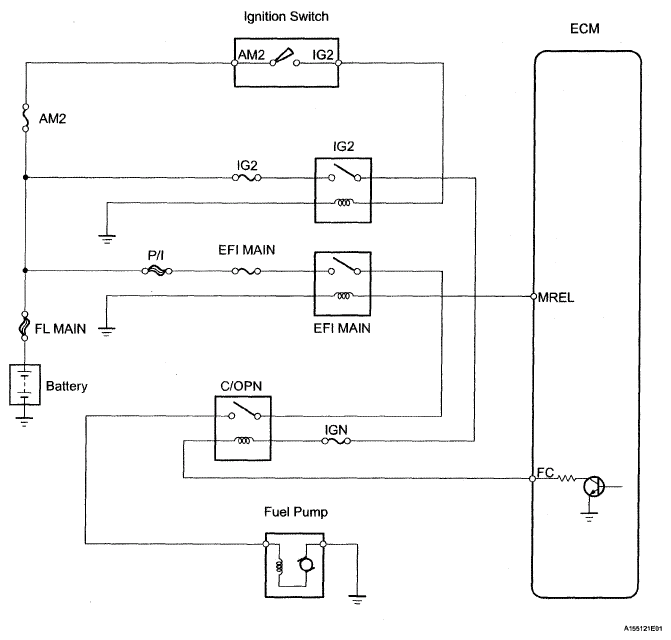

Fig 1: Fuel Pump Control Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
