Entry Functions do not Operate at All: Procedure
WARNING: This page is about a different car, the 2010 Toyota RAV4. However, it is still accessible from the selected car via links, so may be relevant.
- CHECK KEY CANCEL FUNCTION
- Check that the key cancel function has been set. Refer to CUSTOMIZE PARAMETERS .
OK
Key cancel function is set.
NG → See step 2
OK → END (UNSET KEY CANCEL FUNCTION)
- Check that the key cancel function has been set. Refer to CUSTOMIZE PARAMETERS .
- CHECK WIRE HARNESS (CERTIFICATION ECU - BATTERY AND BODY GROUND)

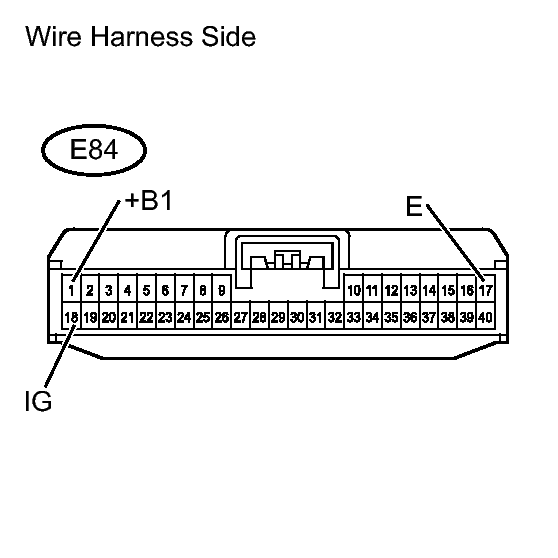

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
- Disconnect the E84 ECU connector.
- Measure the resistance and voltage of the wire harness side connectors.
Standard resistance
Tester Connection Condition Specified Condition E84-17 (E) - Body ground Always Below 1 Ω Standard voltage
Tester Connection Switch Condition Specified Condition E84-18 (IG) - Body ground Engine switch on (IG) 11 to 14 V Engine switch off Below 1 V E84-1 (+B1) - Body ground Always 11 to 14 V
NG → REPAIR OR REPLACE HARNESS AND CONNECTOR
OK → See step 3
- REPLACE ECU AGGREGATION BOX (CERTIFICATION ECU). Refer to REMOVAL
