Entry Interior Alarm does not Sound: Wiring Diagram

WARNING: This page is about a different car, the 2010 Toyota RAV4. However, it is still accessible from the selected car via links, so may be relevant.

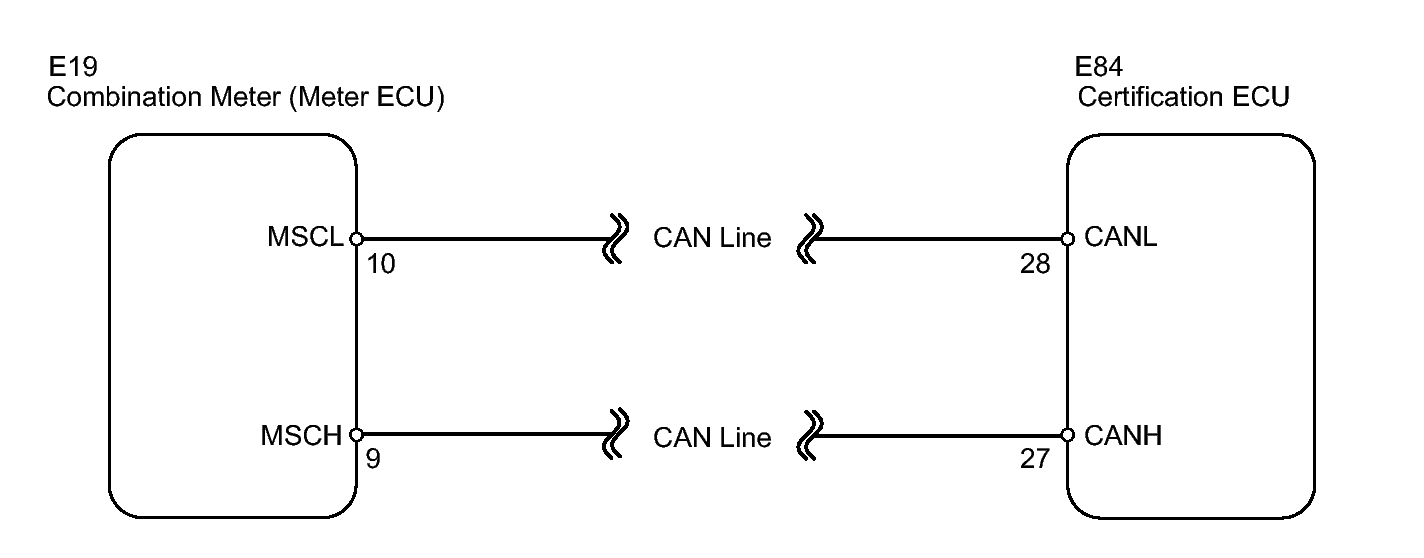

Fig 1: Identifying Combination Meter - Wiring Diagram
GTY213631Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
