Front Passenger Side Door Entry Lock and Unlock Functions do not Operate: Procedure
- CHECK FOR DTC
- Connect the Techstream to the DLC3.
- Turn the engine switch on (IG) and turn the Techstream ON.
- By following the Techstream screen display, check whether any DTCs are output.
OK
No DTC output.
RESULTResult Proceed to OK A NG (2AR-FE) B NG (2GR-FE) C
C → See step 13
B → See step 10
A: Go to next step
- CHECK MANUAL DOOR LOCK AND UNLOCK OPERATION
- Check that all the doors lock when the door control switch (for manual operation) is turned to LOCK and all doors unlock when turned to UNLOCK.
OK
All doors can be locked and unlocked with door control switch.
NG → See step 11
OK: Go to next step
- Check that all the doors lock when the door control switch (for manual operation) is turned to LOCK and all doors unlock when turned to UNLOCK.
- PERFORM ACTIVE TEST USING TECHSTREAM (DOOR ELECTRICAL KEY OSCILLATOR)
- Select the Active Test, use the Techstream to generate a control command, and then check that the oscillator operates.SMART KEY
Tester Display Test Part Control Range Diagnostic Note P-Seat Outside Transmitter Front passenger side door electrical key oscillator ON or OFF - OK
When key is brought close to door oscillator that is ON, indicator light on key illuminates.
NG → See step 4
OK → See step 12
- Select the Active Test, use the Techstream to generate a control command, and then check that the oscillator operates.

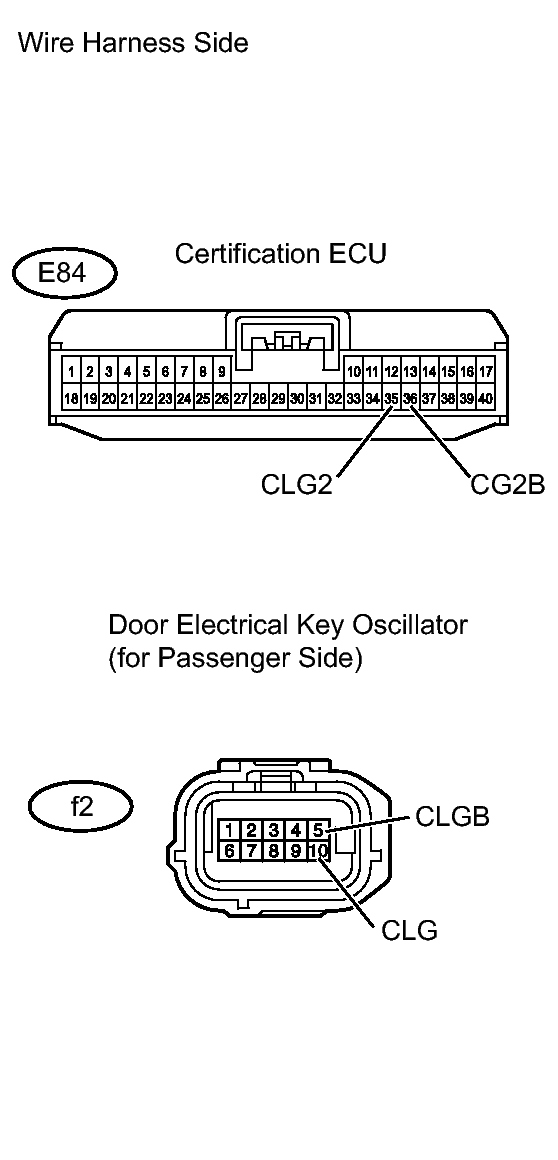

- CHECK WIRE HARNESS (CERTIFICATION ECU - DOOR ELECTRICAL KEY OSCILLATOR)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
- Disconnect the E84 ECU connector.
- Disconnect the f2 oscillator connector.
- Measure the resistance of the wire harness side connectors.
Standard resistance
Tester Connection Specified Condition E84-35 (CLG2) - f2-10 (CLG) Below 1 Ω E84-36 (CG2B) - f2-5 (CLGB) E84-35 (CLG2) or f2-10 (CLG) - Body ground 10 kΩ or higher E84-36 (CG2B) or f2-5 (CLGB) - Body ground
NG → REPAIR OR REPLACE HARNESS AND CONNECTOR
OK: Go to next step

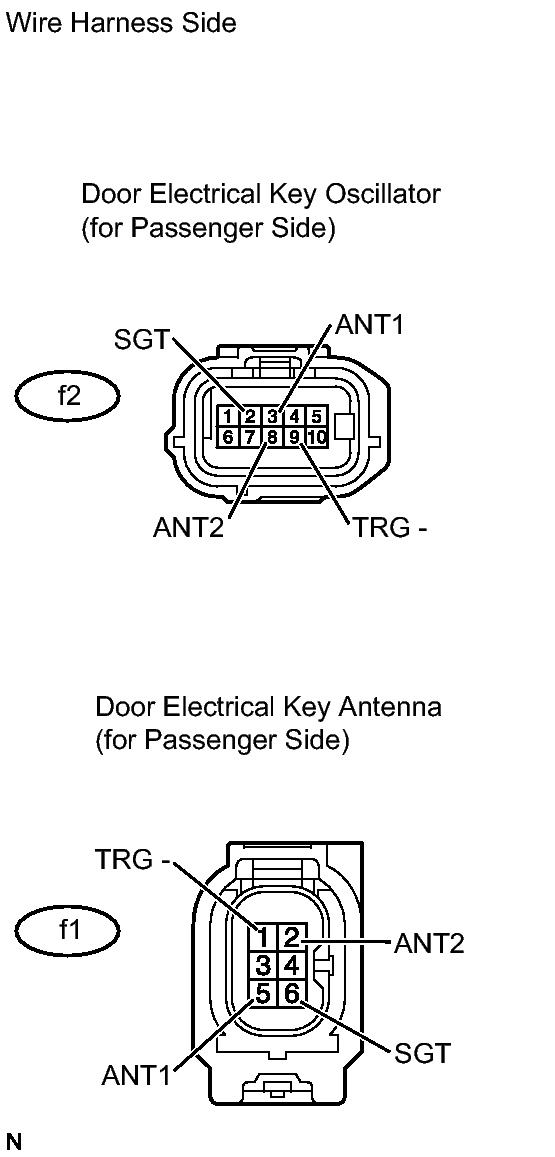

- CHECK WIRE HARNESS (DOOR ELECTRICAL KEY OSCILLATOR - DOOR ELECTRICAL KEY ANTENNA) Fig 2: Identifying Door Electrical Key Oscillator And Door Electrical Key Antenna Connector Terminals
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
- Disconnect the f2 oscillator connector.
- Disconnect the f1 antenna connector.
- Measure the resistance of the wire harness side connectors.
Standard resistance
Tester Connection Specified Condition f2-2 (SGT) - f1-6 (SGT) Below 1 Ω f2-3 (ANT1) - f1-5 (ANT1) f2-8 (ANT2) - f1-2 (ANT2) f2-9 (TRG-) - f1-1 (TRG-) f2-2 (SGT) or f1-6 (SGT) - Body ground 10 kΩ or higher f2-3 (ANT1) or f1-5 (ANT1) - Body ground f2-8 (ANT2) or f1-2 (ANT2) - Body ground f2-9 (TRG-) or f1-1 (TRG-) - Body ground
NG → REPAIR OR REPLACE HARNESS AND CONNECTOR
OK: Go to next step

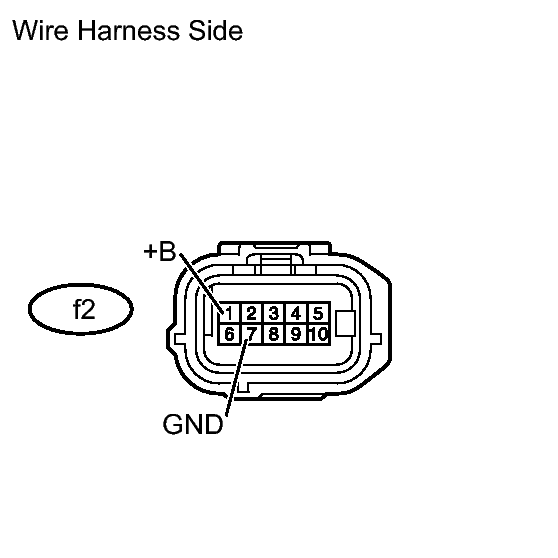

- CHECK WIRE HARNESS (DOOR ELECTRICAL KEY OSCILLATOR - BATTERY AND BODY GROUND)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
- Disconnect the f2 oscillator connector.
- Measure the resistance and voltage of the wire harness side connector.
Standard resistance
Tester Connection Specified Condition f2-7 (GND) - Body ground Below 1 Ω Standard voltage
Tester Connection Specified Condition f2-1(+B) - f2-7 (GND) 11 to 14 V
NG → REPAIR OR REPLACE HARNESS AND CONNECTOR
OK: Go to next step

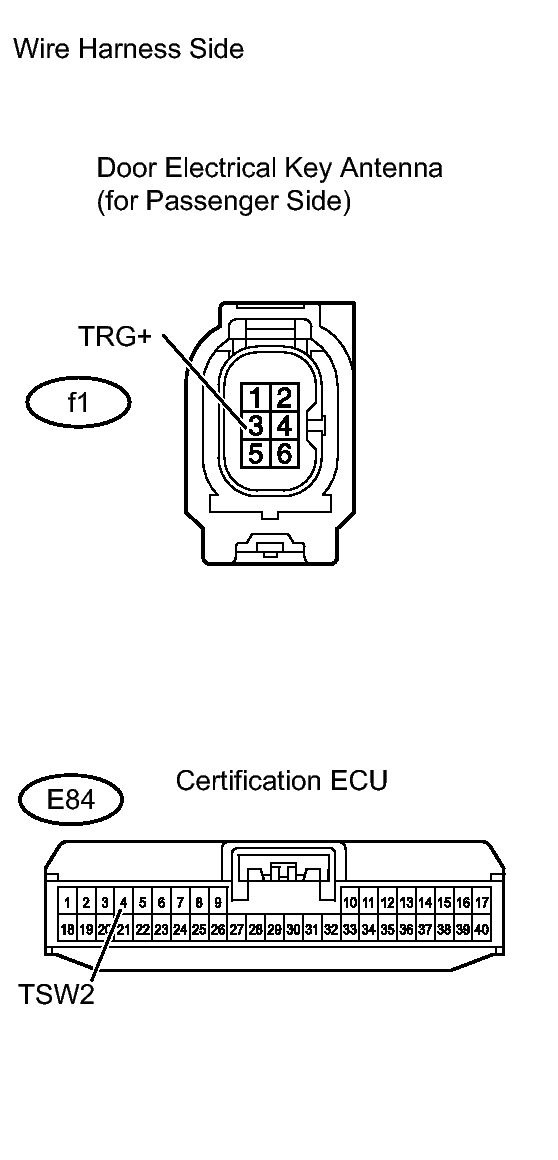

- CHECK WIRE HARNESS (DOOR ELECTRICAL KEY ANTENNA - CERTIFICATION ECU)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
- Disconnect the f1 antenna connector.
- Disconnect the E84 ECU connector.
- Measure the resistance of the wire harness side connectors.
Standard resistance
Tester Connection Specified Condition f1-3 (TRG+) - E84-4 (TSW2) Below 1 Ω f1-3 (TRG+) or E84-4 (TSW2) - Body ground 10 kΩ or higher
NG → END (ELECTRICAL KEY ANTENNA IS DEFECTIVE)
OK: Go to next step
- CHECK FRONT DOOR OUTSIDE HANDLE ASSEMBLY (OPERATION)
Temporarily replace the front door outside handle (electrical key antenna) with a new or normally functioning one. Refer to REMOVAL .
- Check that the entry lock and unlock functions operate normally. Refer to OPERATION CHECK .
OK
Entry lock and unlock functions operate normally.
NG → See step 9
OK → END (ELECTRICAL KEY ANTENNA IS DEFECTIVE)
- Check that the entry lock and unlock functions operate normally. Refer to OPERATION CHECK .
- CHECK DOOR ELECTRICAL KEY OSCILLATOR (OPERATION)
- Temporarily replace the door electrical key oscillator (passenger side) with a new or normally functioning one.
- Check that the entry lock and unlock functions operate normally.
OK
Entry lock and unlock functions operate normally.
NG → See step 12
OK → END (DOOR ELECTRICAL KEY OSCILLATOR IS DEFECTIVE)
- Go to DIAGNOSTIC TROUBLE CODE CHART. Refer to DIAGNOSTIC TROUBLE CODE CHART
- Go to POWER DOOR LOCK CONTROL SYSTEM Refer to OPERATION CHECK
- REPLACE ECU AGGREGATION ECU (CERTIFICATION ECU). Refer to REMOVAL
- Go to DIAGNOSTIC TROUBLE CODE CHART. Refer to DIAGNOSTIC TROUBLE CODE CHART
