Room Oscillator does not Recognize Key: Procedure

WARNING: This page is about a different car, the 2010 Toyota RAV4. However, it is still accessible from the selected car via links, so may be relevant.
  1. CHECK DOOR CONTROL TRANSMITTER (OPERATION)
    1. Temporarily replace the door control transmitter with a new or normally functioning one. Refer to REMOVAL .
    2. Check that the wireless door lock and unlock functions operate normally.

      OK

      Wireless door lock and unlock functions operate normally.

    NG → END (DOOR CONTROL TRANSMITTER IS DEFECTIVE)

    OK: Go to next step

  2. READ VALUE USING TECHSTREAM (INDOOR ELECTRICAL KEY OSCILLATOR)
    1. Select the Active Test, use the Techstream to generate a control command, and then check that the indoor electrical key oscillator (front, rear) operates.
      SMART KEY

      Tester Display Test Part Control Range Diagnostic Note
      Fr-Seat Inside Transmitter Indoor electrical key oscillator (front) ON or OFF -
      Inside Trunk/Backdoor Transmitter Indoor electrical key oscillator (rear) ON or OFF -

      OK

      When key is brought close to indoor electrical key oscillator, oscillator is turned OFF and indicator on key illuminates.

    NG → See step   3

    OK → See step   5

  3. CHECK WIRE HARNESS (INDOOR ELECTRICAL KEY OSCILLATOR - CERTIFICATION ECU)

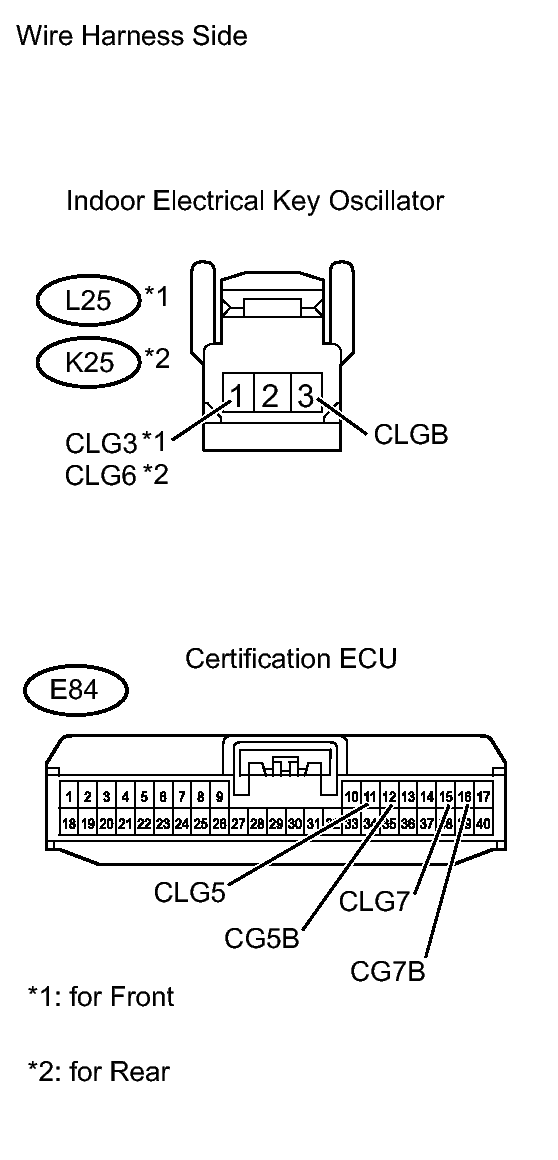

    Fig 1: Identifying Indoor Electrical Key Oscillator And Certification ECU Connector Terminals
    GTY242613Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Disconnect the L25*1 and K25*2 oscillator connectors.
    2. Disconnect the E84 ECU connector.
    3. Measure the resistance of the wire harness side connectors.

      HINT:

      *1: for Front

      *2: for Rear

      Standard resistance

      for Front

      for Rear

      Tester Connection Specified Condition
      L25-1 (CLG3) - E84-11 (CLG5) Below 1 Ω
      L25-3 (CLGB) - E84-12 (CG5B)
      L25-1 (CLG3) or E84-11 (CLG5) - Body ground 10 kΩ or higher
      L25-3 (CLGB) or E84-12 (CG5B) - Body ground
      Tester Connection Specified Condition
      K25-1 (CLG6) - E84-15 (CLG7) Below 1 Ω
      K25-3 (CLGB) - E84-16 (CG7B)
      K25-1 (CLG6) or E84-15 (CLG7) - Body ground 10 kΩ or higher
      K25-3 (CLGB) or E84-16 (CG7B) - Body ground

    NG → REPAIR OR REPLACE HARNESS AND CONNECTOR

    OK: Go to next step

  4. CHECK INDOOR ELECTRICAL KEY OSCILLATOR (OPERATION)
    1. Carry the key into the vehicle.
    2. Temporarily replace the indoor electrical key oscillator with a new or normally functioning one.
    3. Depress the brake pedal and check that the engine switch indicator illuminates in green.

      OK

      Engine switch indicator illuminates in green.

    NG → See step   5

    OK → END (INDOOR ELECTRICAL KEY OSCILLATOR IS DEFECTIVE)

  5. REPLACE ECU AGGREGATION BOX (CERTIFICATION ECU). Refer to  REMOVAL
