Room Oscillator does not Recognize Key: Wiring Diagram

WARNING: This page is about a different car, the 2010 Toyota RAV4. However, it is still accessible from the selected car via links, so may be relevant.

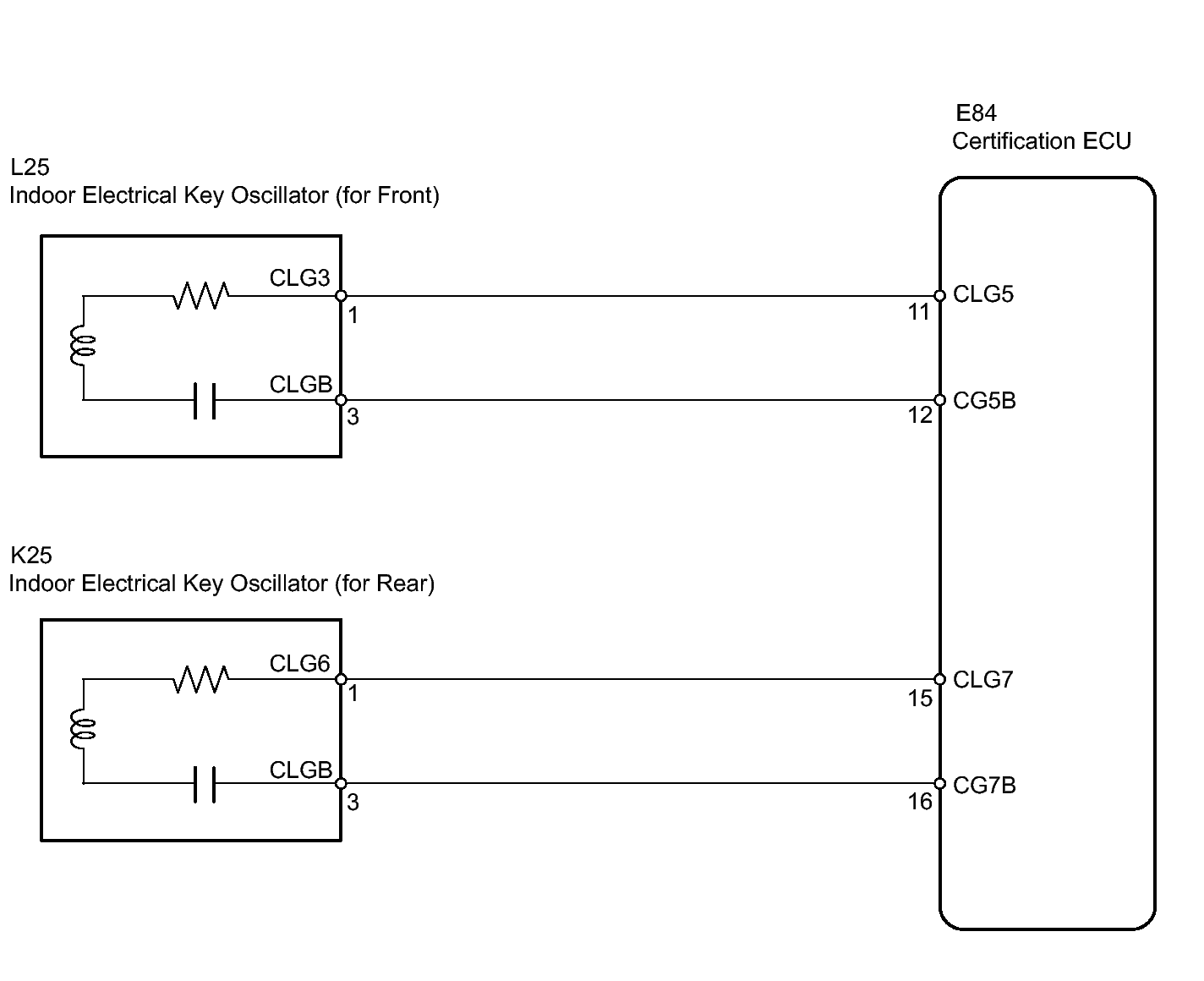

Fig 1: Room Oscillator Does Not Recognize Key -- Wiring Diagram
GTY240029Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
