Wireless Door Lock Buzzer Does not Sound: Procedure

WARNING: This page is about a different car, the 2010 Toyota RAV4. However, it is still accessible from the selected car via links, so may be relevant.

PERFORM ACTIVE TEST USING TECHSTREAM (WIRELESS DOOR LOCK BUZZER)

Select the Active Test, use the Techstream to generate a control command, and then check that the wireless door lock buzzer sounds.

SMART KEY

Tester Display	Test Part	Control Range	Diagnostic Note
Wireless Buzzer Operation	Wireless door lock buzzer	ON or OFF	-

Wireless door lock buzzer sounds.

NG → See step 2

OK → END (WIRELESS DOOR LOCK BUZZER IS DEFECTIVE)

CHECK WIRE HARNESS (CERTIFICATION ECU - WIRELESS DOOR LOCK BUZZER AND BODY GROUND)

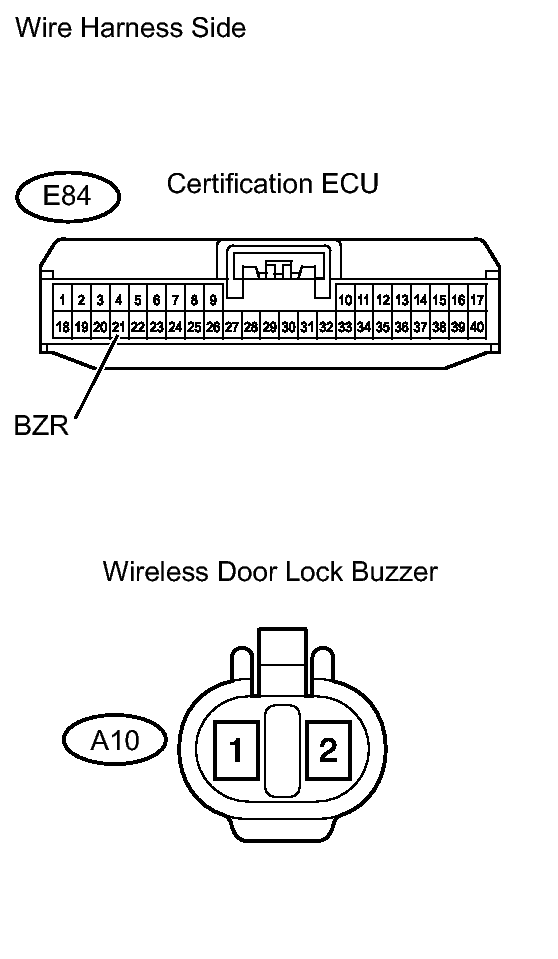

Fig 1: Identifying Main Body ECU And Wireless Door Lock Buzzer Connector Terminals

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Disconnect the E84 ECU connector.
Disconnect the A10 buzzer connector.

Measure the resistance of the wire harness side connectors.

Standard resistance

Tester Connection	Specified Condition
BZR (E84-21) - A10-1	Below 1 Ω
A10-2 - Body ground	Below 1 Ω
BZR (E84-21) or A10-1 - Body ground	10 kΩ or higher

NG → REPAIR OR REPLACE HARNESS AND CONNECTOR

OK: Go to next step

CHECK WIRELESS DOOR LOCK BUZZER
1. Temporarily replace the wireless door lock buzzer with a new one.
2. Check that the wireless door buzzer sounds by using the transmitter lock/unlock switch.
  OK

  Wireless door lock buzzer sounds.
NG → See step 4

OK → END (WIRELESS DOOR LOCK BUZZER IS DEFECTIVE)
REPLACE ECU AGGREGATION BOX (CERTIFICATION ECU). Refer to REMOVAL
