Terminals Of Ecu

WARNING: This page is about a different car, the 2010 Toyota RAV4. However, it is still accessible from the selected car via links, so may be relevant.
  1. CHECK INSTRUMENT PANEL JUNCTION BLOCK (MAIN BODY ECU)

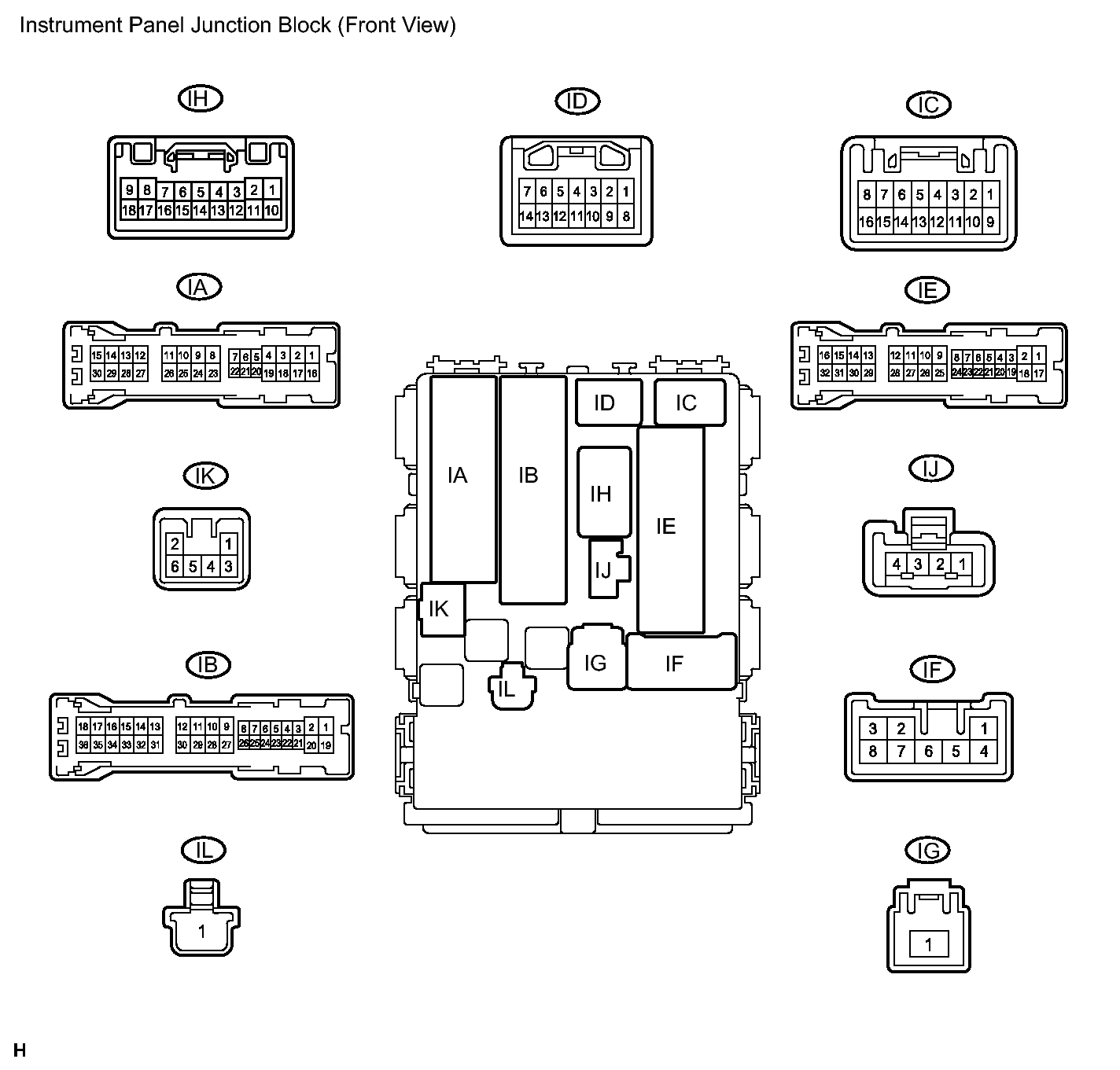

    Fig 1: Instrument Panel Junction Block (Main Body ECU, Front View)
    GTY246007Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

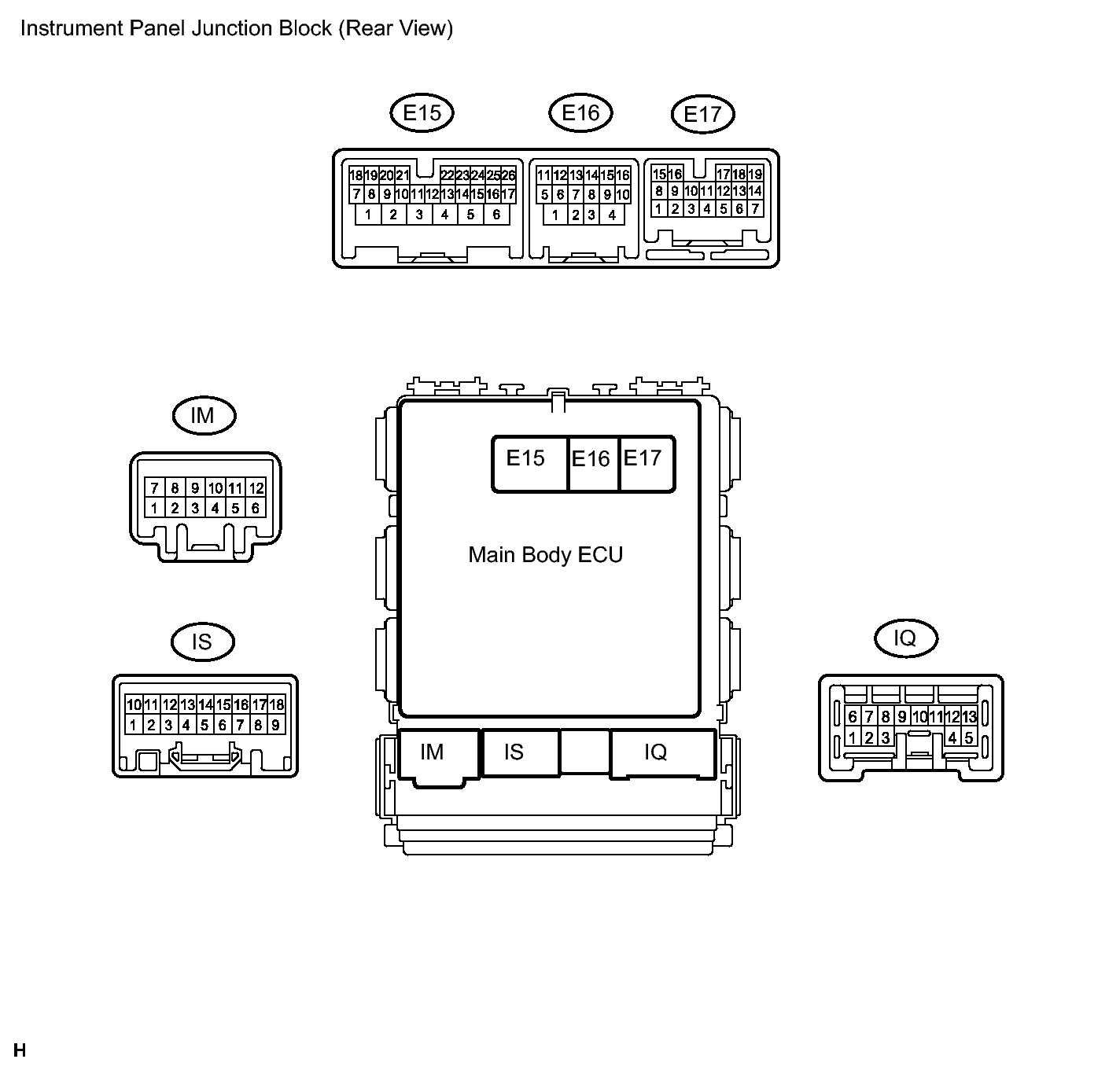

    Fig 2: Instrument Panel Junction Block (Main Body ECU, Rear View)
    GTY246340Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Measure the voltage of the connectors.
      Symbols (Terminal No.) Wiring Color Terminal Description Condition Specified Condition
      HRLY (E15-20) - GND1 (IE-17) BR - W-B Headlight Relay
      (HEAD signal)
      Light control switch is OFF or TAIL 11 to 14 V
      HRLY (E15-20) - GND1 (IE-17) BR - W-B Headlight Relay
      (HEAD signal)
      Light control switch is HEAD Below 1 V
      DIM (E16-3) - GND1 (IE-17) LG - W-B Daytime running light Relay
      (High beam signal)
      Light control switch is HEAD Below 1 V
      DIM (E16-3) - GND1 (IE-17) LG - W-B Daytime running light Relay
      (High beam signal)
      Light control switch is in except HEAD 11 to 14 V
      TAIL (E15-21) - GND1 (IE-17) W - W-B Taillight relay
      (TAIL signal)
      Light control switch is OFF Below 1 V
      TAIL (E15-21) - GND1 (IE-17) W - W-B Taillight relay
      (TAIL signal)
      Light control switch is TAIL 11 to 14 V
      ILE (IK-2) - GND1 (IE-17) W - W-B Illumination signal
      • Room light switch position is DOOR
      • Door closed
      11 to 14 V
      ILE (IK-2) - GND1 (IE-17) W - W-B Illumination signal
      • Room light switch position is DOOR
      • Door open
      Below 1 V
      FSPT (E15-2) - GND1 (IE-17) V - W-B Foot light illumination
      (Illumination signal)
      Foot light illumination OFF 11 to 14 V
      FSPT (E15-2) - GND1 (IE-17) V - W-B Foot light illumination
      (Illumination signal)
      Foot light illumination ON Below 1 V
      HU (IJ-4) - GND1 (IE-17) Y - W-B Headlight dimmer switch
      (HIGH signal)
      Light control switch is HEAD
      Headlight dimmer switch is LOW
      11 to 14 V
      HU (IJ-4) - GND1 (IE-17) Y - W-B Headlight dimmer switch
      (HIGH signal)
      Light control switch is HEAD
      Headlight dimmer switch is HIGH
      Below 1 V
      LCTY (E15-8) - GND1 (IE-17) SB - W-B Courtesy switch
      (Rear left door circuit)
      Rear left door is closed Below 1 V
      LCTY (E15-8) - GND1 (IE-17) SB - W-B Courtesy switch
      (Rear left door circuit)
      Rear left door is open 11 to 14 V
      FFGO (E17-17) - GND1 (IE-17) G - W-B Front fog relay
      (Front fog circuit)
      Front fog light is OFF 11 to 14 V
      FFGO (E17-17) - GND1 (IE-17) G - W-B Front fog relay
      (Front fog circuit)
      Front fog light is ON Below 1 V
      DCTY (IA-21) - GND1 (IE-17) W - W-B Courtesy switch
      (Front left door circuit)
      Front left door is open Below 1 V
      DCTY (IA-21) - GND1 (IE-17) W - W-B Courtesy switch
      (Front left door circuit)
      Front left door is closed 11 to 14 V
      RRCY (ID-7) - GND1 (IE-17) LG - W-B Courtesy switch
      (Rear right door circuit)
      Rear right door is open Below 1 V
      RRCY (ID-7) - GND1 (IE-17) LG - W-B Courtesy switch
      (Rear right door circuit)
      Rear right door is closed 11 to 14 V
      HF (E15-22) - GND1 (IE-17) R - W-B Headlight dimmer switch
      (FLASH signal)
      Headlight dimmer switch is OFF 11 to 14 V
      HF (E15-22) - GND1 (IE-17) R - W-B Headlight dimmer switch
      (FLASH signal)
      Headlight dimmer switch is FLASH Below 1 V
      FFOG (E17-13) - GND1 (IE-17) GR - W-B Front fog light switch
      (Front fog light signal)
      Light control switch is TAIL
      Fog light switch is OFF
      11 to 14 V
      FFOG (E17-13) - GND1 (IE-17) GR - W-B Front fog light switch
      (Front fog light signal)
      Light control switch is TAIL
      Fog light switch is ON
      Below 1 V
      PCTY (IC-14) - GND1 (IE-17) BR - W-B Courtesy switch
      (Front right door circuit)
      Front right door is open Below 1 V
      PCTY (IC-14) - GND1 (IE-17) BR - W-B Courtesy switch
      (Front right door circuit)
      Front right door is closed 11 to 14 V
      BCTY (IA-7) - GND1 (IE-17) LG - W-B Courtesy switch
      (Back door)
      Back door is open Below 1 V
      BCTY (IA-7) - GND1 (IE-17) LG - W-B Courtesy switch
      (Back door)
      Back door is closed 11 to 14 V
      LSWP (E15-10) - GND1 (IE-17) Y - W-B Door lock position switch
      (Front right door)
      Front right door is in unlock position 11 to 14 V
      LSWP (E15-10) - GND1 (IE-17) Y - W-B Door lock position switch
      (Front right door)
      Front right door is in lock position Below 1 V
      LSWD (E15-25) - GND1 (IE-17) Y - W-B Door lock position switch
      (Front left door)
      Front left door is in unlock position 11 to 14 V
      LSWD (E15-25) - GND1 (IE-17) Y - W-B Door lock position switch
      (Front left door)
      Front left door is in lock position Below 1 V

      If the result is not as specified, the junction block (main body ECU) may have a malfunction.
