Inspection Procedure

HINT:

Read freeze frame data using the intelligent tester. Freeze frame data records the engine condition when malfunctions are detected. When troubleshooting, freeze frame data can help determine if the vehicle was moving or stationary, if the engine was warmed up or not, if the air-fuel ratio was lean or rich, and other data from the time the malfunction occurred.

1. READ VALUE USING INTELLIGENT TESTER (MASS AIR FLOW RATE)
   1. Connect the intelligent tester to the DLC3.
   2. Start the engine.
   3. Turn the tester ON.
   4. Select the following menu items: DIAGNOSIS / ENHANCED OBD II / DATA LIST / PRIMARY / MAR
   5. Read the values displayed on the tester.

   Result

   RESULT CHART



   Mass Air Flow Rate (g/sec.)	Proceed to
   0.0	A
   271.0 or more	B
   Between 1.0 and 270.0 (*1)	C
   HINT: *1: The value must change when the throttle valve is open or closed with the engine running.

   B: GO to step  6

   C: CHECK FOR INTERMITTENT PROBLEMS

   A: GO to Next Step

2. INSPECT MASS AIR FLOW METER (POWER SOURCE VOLTAGE)
   1. Disconnect the B1 Mass Air Flow (MAF) meter connector.
   2. Turn the ignition switch ON.
   3. Measure the voltage between the terminal of the wire harness side connector and body ground.

      Standard voltage

      TESTER CONNECTION SPECIFIED CONDITION



      Tester Connection	Specified Condition
      B1-3 (+B) - Body ground	9 to 14 V

   4. Reconnect the MAF meter connector.

   NG: GO to step  5

   Fig 1: Identifying B1 Mass Air Flow Meter Connector Terminals

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   OK: GO to Next Step

3. INSPECT MASS AIR FLOW METER (VG VOLTAGE)
   1. Output voltage inspection.
      1. Apply battery voltage across terminals +B and E2G.
      2. Connect the positive (+) tester probe to terminal VG, and negative (-) tester probe to terminal E2G.
      3. Measure the voltage.

   Standard voltage

   TESTER CONNECTION SPECIFIED CONDITION



   Tester Connection	Specified Condition
   5 (VG) - 4 (E2G)	0.2 to 4.9 V

   NG: REPLACE MASS AIR FLOW METER

   Fig 2: Identifying Mass Air Flow Meter Connector Terminals

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   OK: GO to Next Step

4. CHECK WIRE HARNESS (MASS AIR FLOW METER - ECM)
   1. Disconnect the B1 MAF meter connector.
   2. Disconnect the B30 ECM connector.
   3. Measure the resistance.

      Standard resistance

      TESTER CONNECTION SPECIFIED CONDITION



      Tester Connection	Specified Condition
      B1-5(VG) - B30-72(VG)	Below 1 Ω
      B1-4 (E2G) - B30-73 (E2G)	Below 1 Ω

      RESISTANCE CHART



      B1-5 (VG) or B30-72 (VG) - Body ground

      10 kΩ or higher

   4. Reconnect the MAF meter connector.
   5. Reconnect the ECM connector.

   NG: REPAIR OR REPLACE HARNESS AND CONNECTOR

   Fig 3: Identifying B1 MAF Meter Connector Terminals

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   OK: REPLACE ECM

5. CHECK WIRE HARNESS (MASS AIR FLOW METER - INTEGRATION RELAY)
   1. Check the EFI No. 1 fuse.
   2. Disconnect the B1 MAF meter connector.
   3. Remove the integration relay from the engine room No. 1 relay block.
   4. Measure the resistance.

      Standard resistance

      TESTER CONNECTION SPECIFIED CONDITION



      Tester Connection	Specified Condition
      B1-3(+B) - 1A-4	Below 1 Ω
      B1-3 (+B) or 1A-4 - Body ground	10 kΩ or higher

   5. Reconnect the MAF meter connector.
   6. Reinstall the integration relay.

      NG: REPAIR OR REPLACE HARNESS AND CONNECTOR

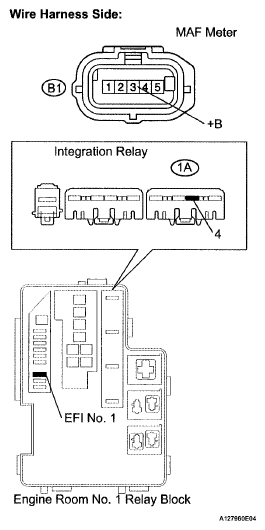

      Fig 4: Identifying Terminals Of B1 MAF Meter Connector

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      OK: CHECK ECM POWER SOURCE CIRCUIT

6. CHECK WIRE HARNESS (SENSOR GROUND)
   1. Disconnect the B1 MAF meter connector.
   2. Measure the resistance.

   Standard resistance

   TESTER CONNECTION SPECIFIED CONDITION



   Tester Connection	Specified Condition
   B1-4 (E2G) - Body ground	Below 1 Ω

   OK: REPLACE MASS AIR FLOW METER

   Fig 5: Identifying B1 MAF Meter Connector Terminals

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   NG: GO to Next Step

7. CHECK WIRE HARNESS (MASS AIR FLOW METER - ECM)
   1. Disconnect the B1 MAF meter connector.
   2. Disconnect the B30 ECM connector.
   3. Measure the resistance.

      Standard resistance

      TESTER CONNECTION SPECIFIED CONDITION



      Tester Connection	Specified Condition
      B1-5(VG) - B30-72(VG)	Below 1 Ω
      B1-4 (E2G) - B30-73 (E2G)	Below 1 Ω
      B1-5 (VG) or B30-72 (VG) - Body ground	10 kΩ or higher

   4. Reconnect the MAF meter connector.
   5. Reconnect the ECM connector.

   NG: REPAIR OR REPLACE HARNESS AND CONNECTOR

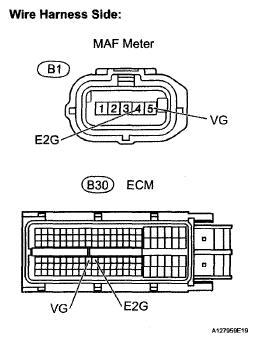

   Fig 6: Identifying B1 MAF Meter Connector Terminals

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   OK: REPLACE ECM
