Inspection Procedure

WARNING: This page is about a different variant/trim than selected.
  1. INSPECT BATTERY CURRENT SENSOR
    1. Disconnect the B29 battery current sensor connector.
    2. Measure the resistance.

    Standard resistance

    TESTER CONNECTION CONDITION

    Tester Connection Condition Specified Condition
    1(THB) - 4(E2) 24 to 26°C (75.2 to 78.8°F) 1.91 to 2.065 kΩ

    NG: REPLACE BATTERY CURRENT SENSOR

    Fig 1: Identifying B29 Battery Current Sensor Connector Terminals
    G05183635Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    OK: GO to Next Step

  2. CHECK WIRE HARNESS (BATTERY CURRENT SENSOR - ECM)
    1. Disconnect the B29 battery current sensor connector.
    2. Disconnect the B30 ECM connectors.
    3. Measure the resistance of the wire harness side connectors.

    Standard resistance

    TESTER CONNECTION SPECIFIED CONDITION

    Tester Connection Specified Condition
    B29-1 (THB) - B30-103 (THB) Below 1 Ω
    B29-4(E2) - B30-101 (EIB) Below 1 Ω
    B29-1 (THB) or B30-103 (THB) - Body ground 10 kΩ or higher

    NG: REPAIR OR REPLACE HARNESS AND CONNECTOR

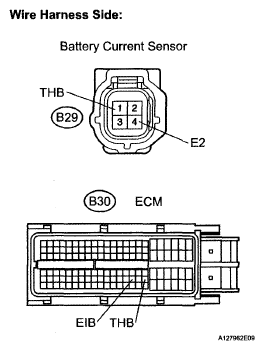

    Fig 2: Identifying B29 Battery Current Sensor Connector Terminals
    G05184094Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    OK: REPLACE ECM
