Air Conditioning Unit: Components

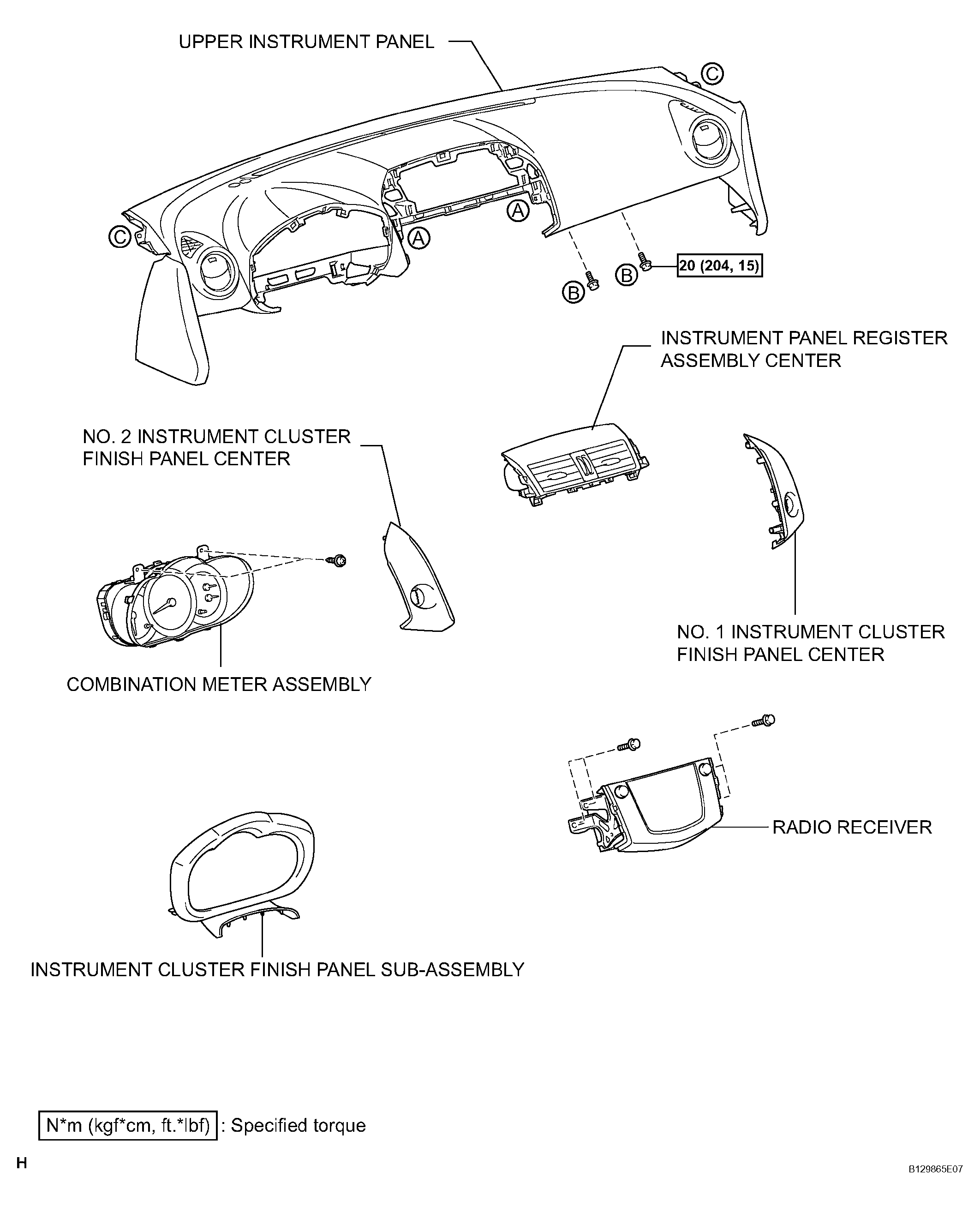

Fig 1: Air Conditioning Unit Replacement Components With Torque Specifications (1 Of 8)
G04489957Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

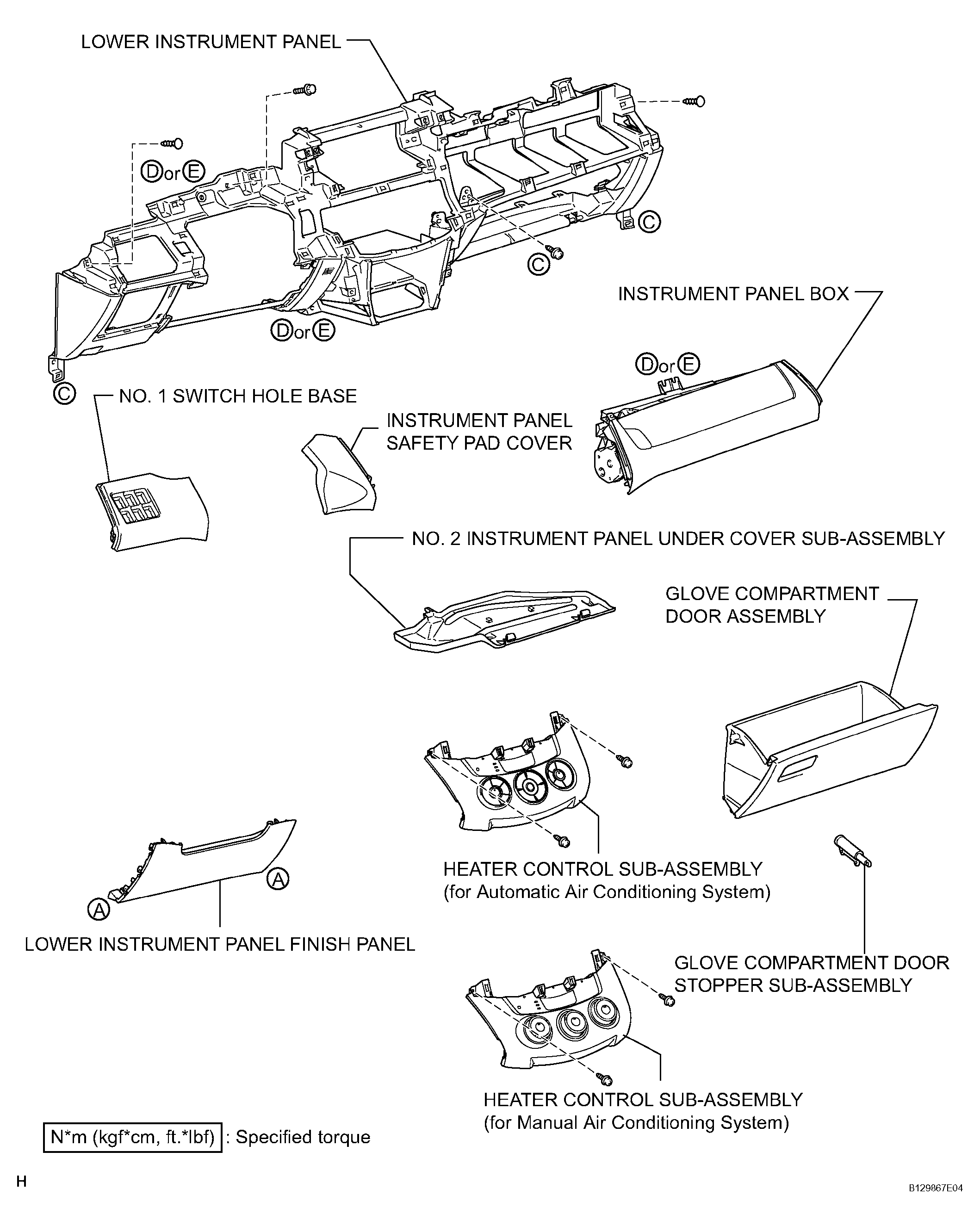

Fig 2: Identifying Air Conditioning Unit Components (2 Of 8)
G04489958Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 3: Identifying Air Conditioning Unit Components (3 Of 8)
G04489959Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 4: Air Conditioning Unit Replacement Components With Torque Specifications (4 Of 8)
G04489960Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

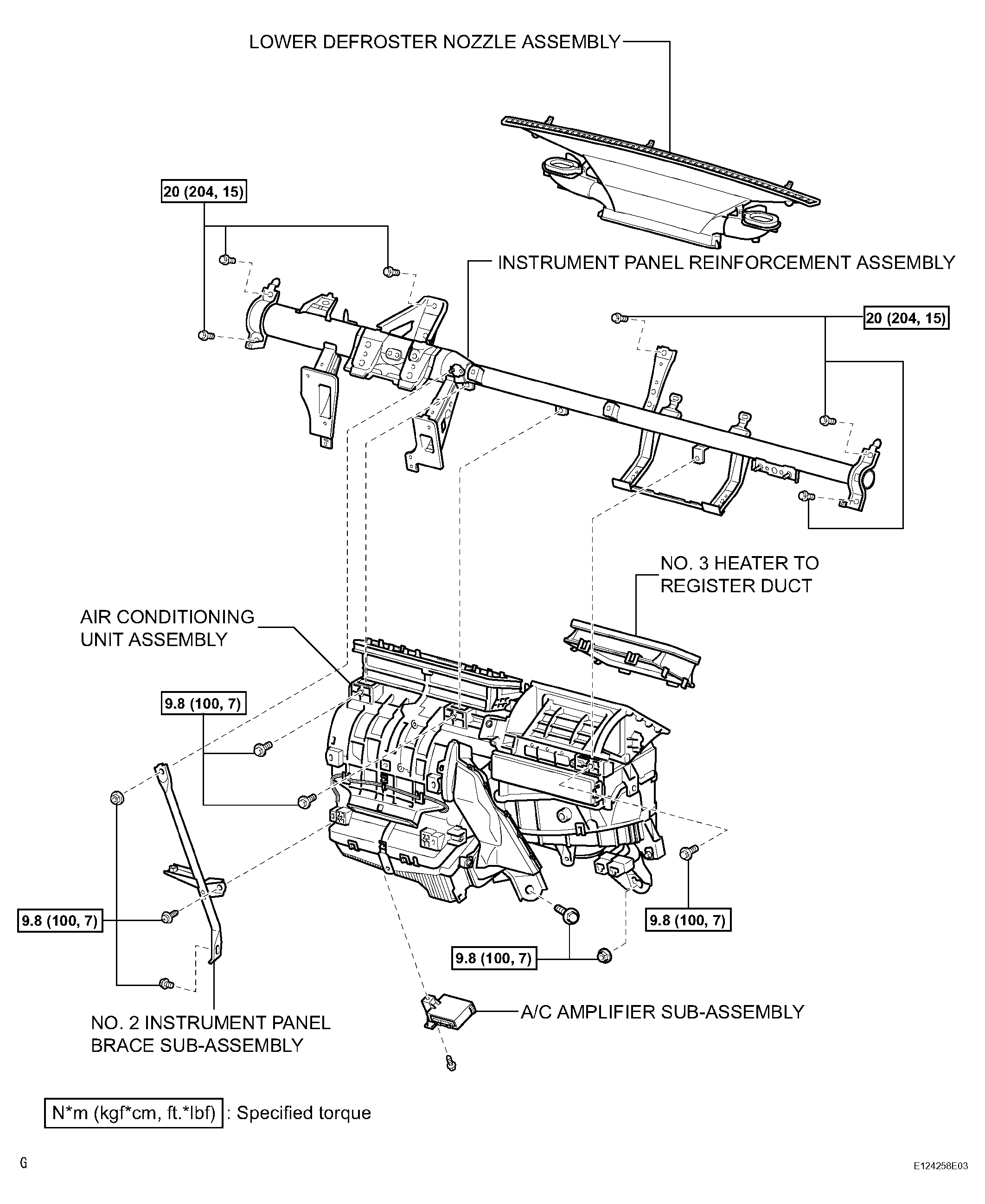

Fig 5: Air Conditioning Unit Replacement Components With Torque Specifications (5 Of 8)
G04489961Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

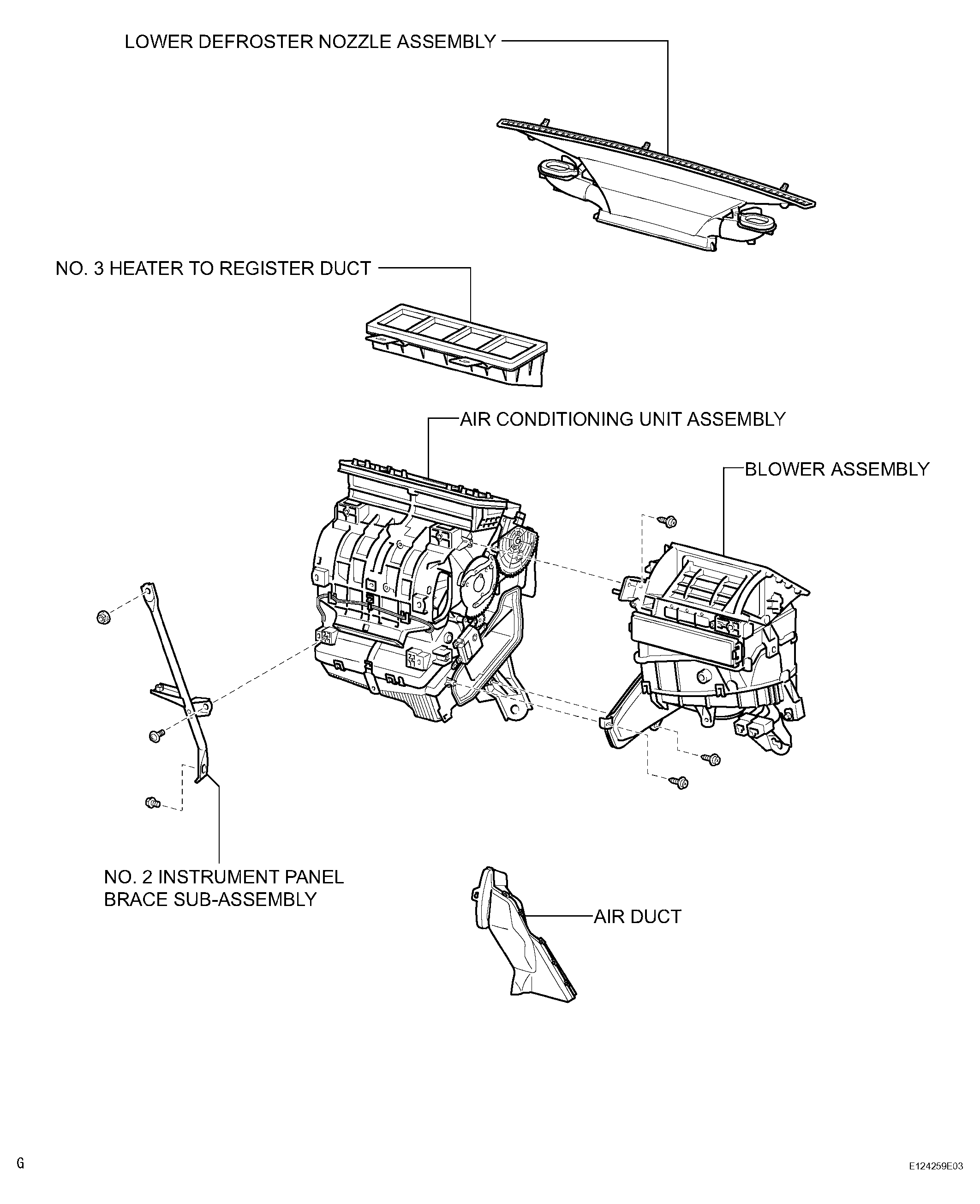

Fig 6: Identifying Air Conditioning Unit Components (6 Of 8)
G04489962Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

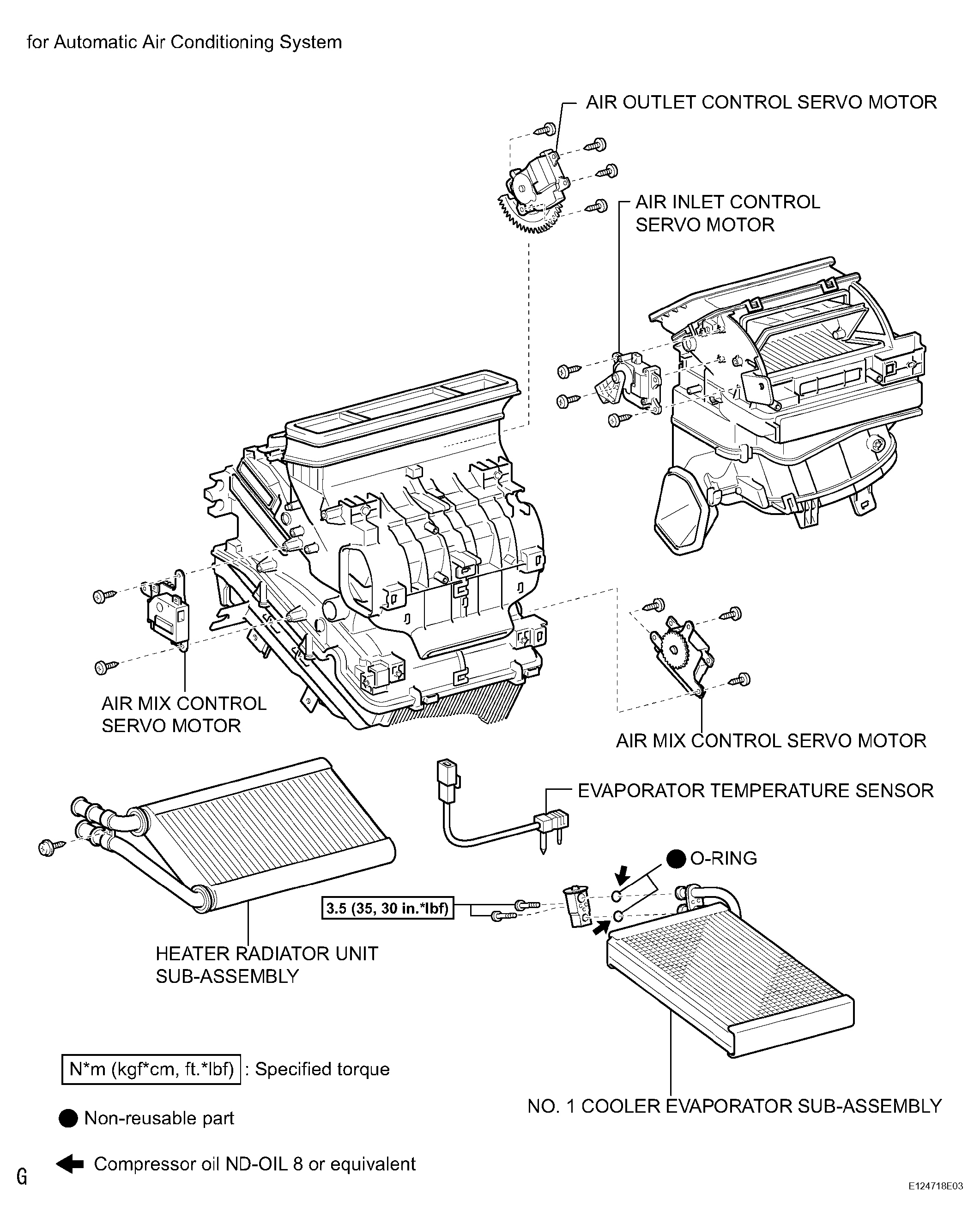

Fig 7: Air Conditioning Unit Replacement Components With Torque Specifications (7 Of 8)
G04489963Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

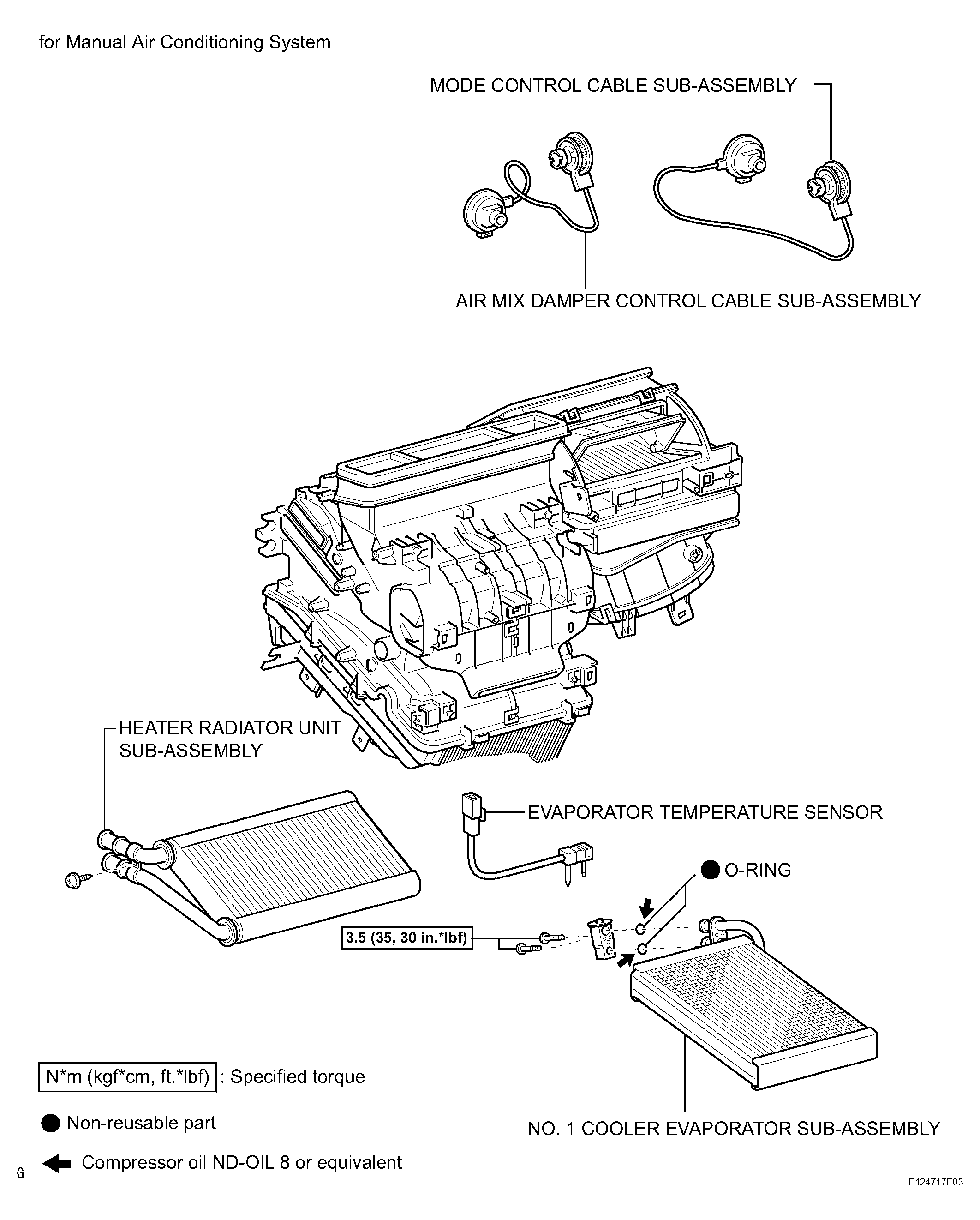

Fig 8: Air Conditioning Unit Replacement Components With Torque Specifications (8 Of 8)
G04489964Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
