Air Conditioning: Condenser: Components

Fig 1: Identifying Condenser Components (1 Of 2)
G04490071Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

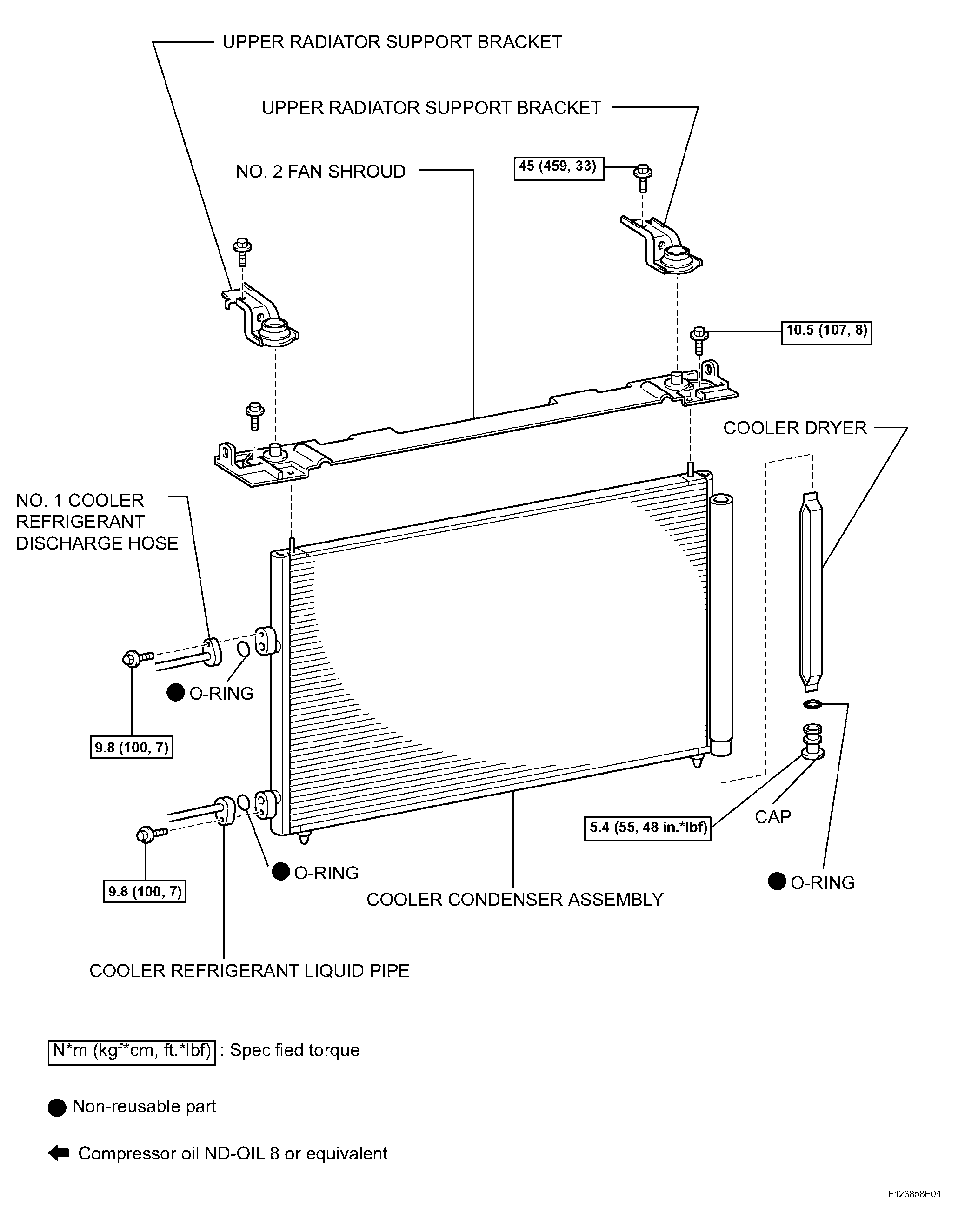

Fig 2: Condenser Replacement Components With Torque Specifications (2 Of 2)
G04490072Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
