VVT Sensor: Installation

INSTALL VVT SENSOR
1. Install the 4 sensors with the 4 bolts.
  Torque: 10 N*m (102 kgf*cm, 7 ft.*lbf)
2. Connect the 4 sensor connectors.
INSTALL INTAKE AIR SURGE TANK ASSEMBLY
NOTE: Make sure there is no oil on the bolts. If there is oil on the bolts, clean them before installing them.
1. Install a new gasket to the surge tank.
2. Using a 5 mm hexagon socket wrench, install the 4 bolts.
  Torque: 18 N*m (184 kgf*cm, 13 ft.*lbf)
3. Install the surge tank with the 2 nuts and 2 bolts.
  Torque: 21 N*m (214 kgf*cm, 15 ft.*lbf) for bolt

  16 N*m (163 kgf*cm, 12 ft.*lbf) for nut

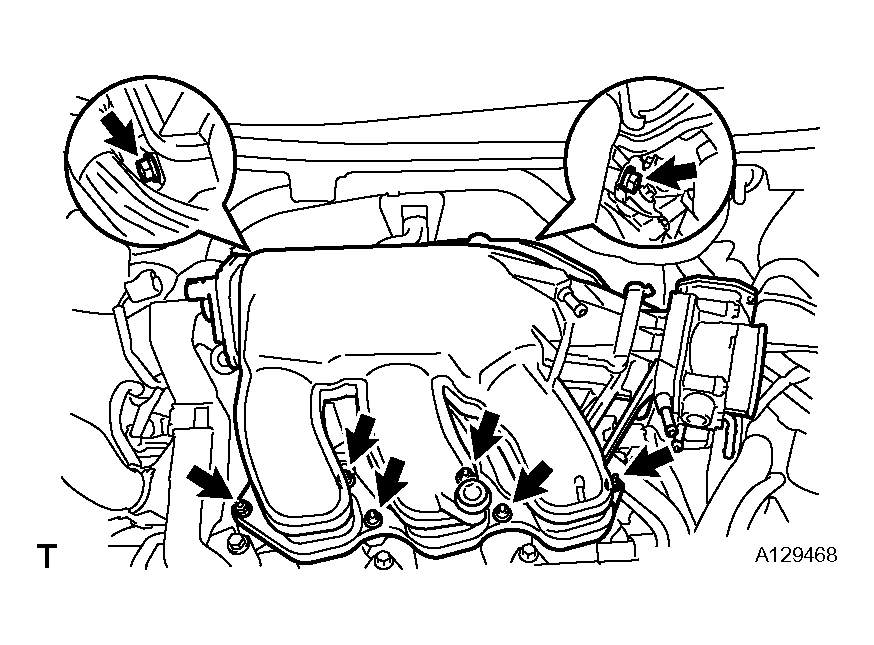

  Fig 1: Installing Intake Air Surge Tank Assembly
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. Connect the connector.

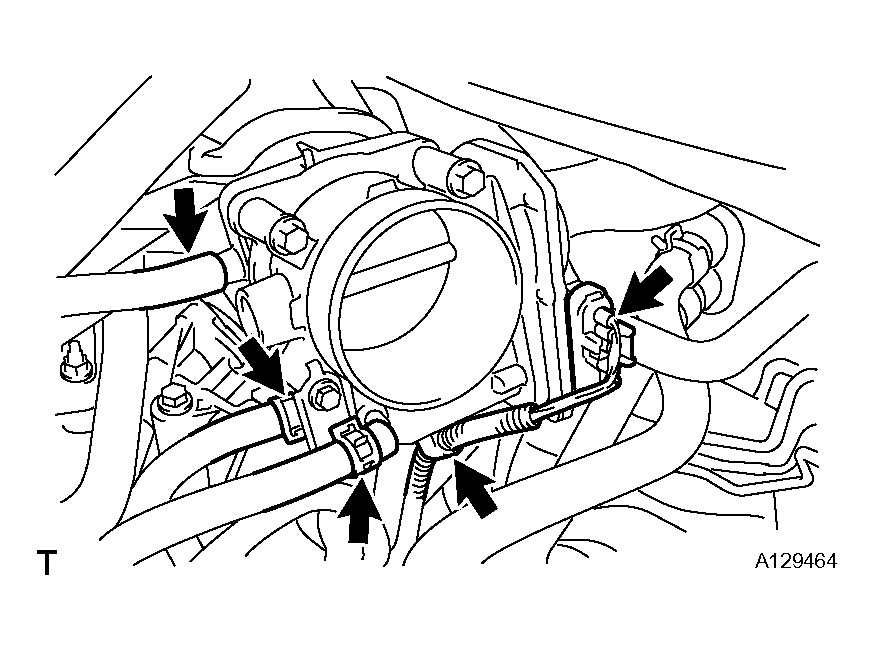

  Fig 2: Connecting Connector
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
5. Install the vacuum hose clamp with the bolt.
  Torque: 5.4 N*m (55 kgf*cm, 48 in.*lbf)

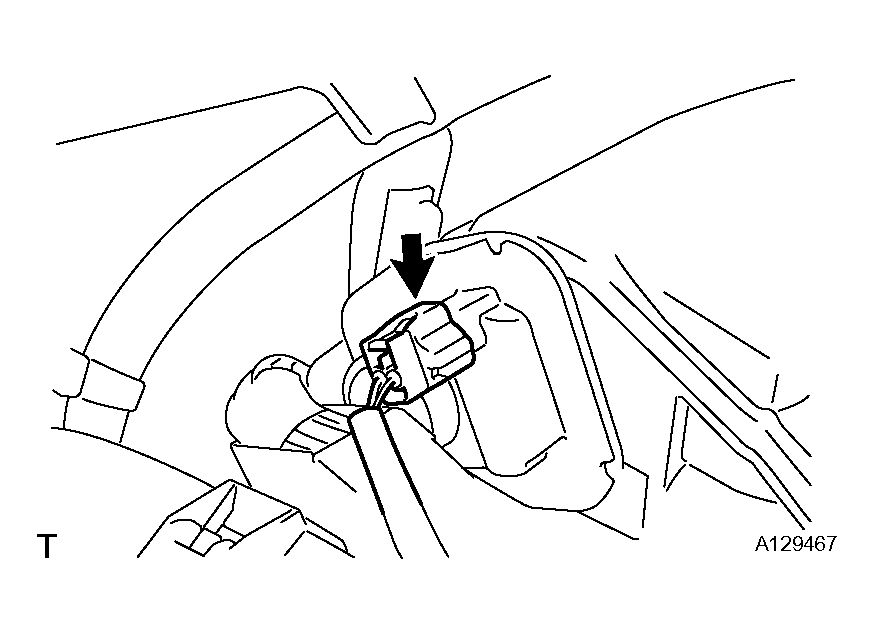

  Fig 3: Installing Vacuum Hose Clamp
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
6. Connect the union to check valve hose.
7. Connect the No. 2 ventilation hose.
8. Install the clamp and connect the throttle body connector.

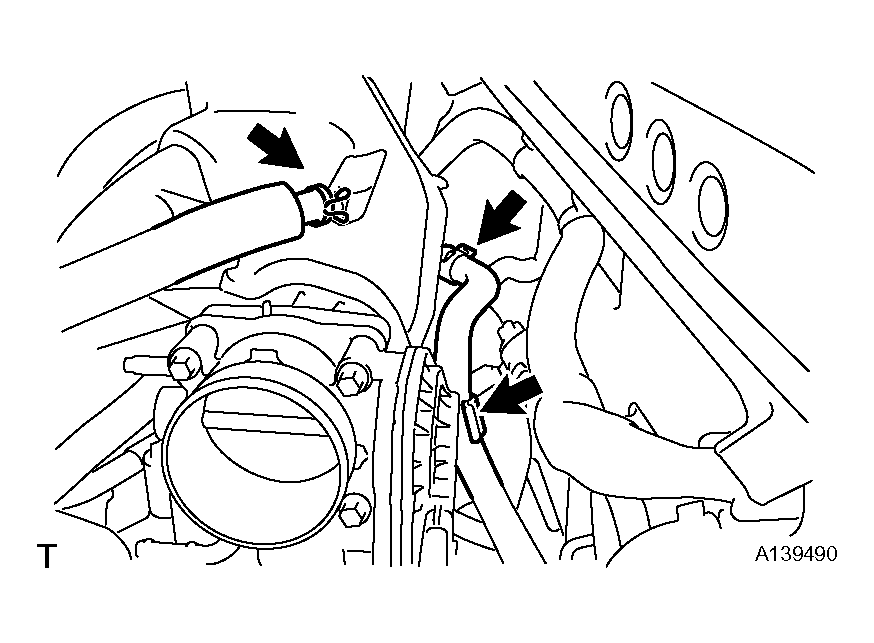

  Fig 4: Connecting Hoses And Clamps
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
9. Connect the vapor feed hose.
10. Connect the 2 water by-pass hoses to the throttle body.

  Fig 5: Connecting Water By-Pass Hoses To Throttle Body
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
CONNECT CABLE TO NEGATIVE BATTERY TERMINAL

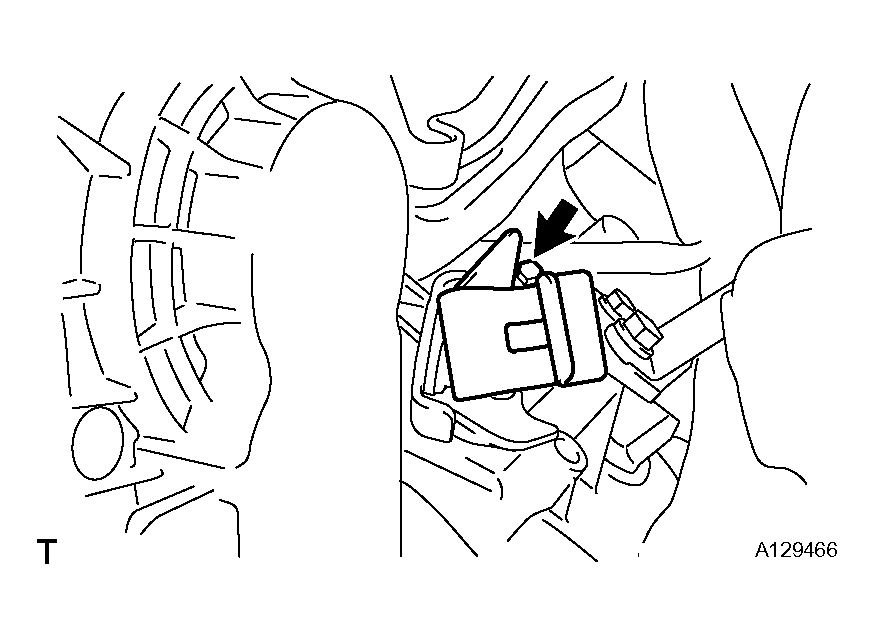

Fig 6: Locating VVT Sensor And Bolts
