System Diagram

WARNING: This page is about a different car, the 2010 Toyota 4Runner. However, it is still accessible from the selected car via links, so may be relevant.

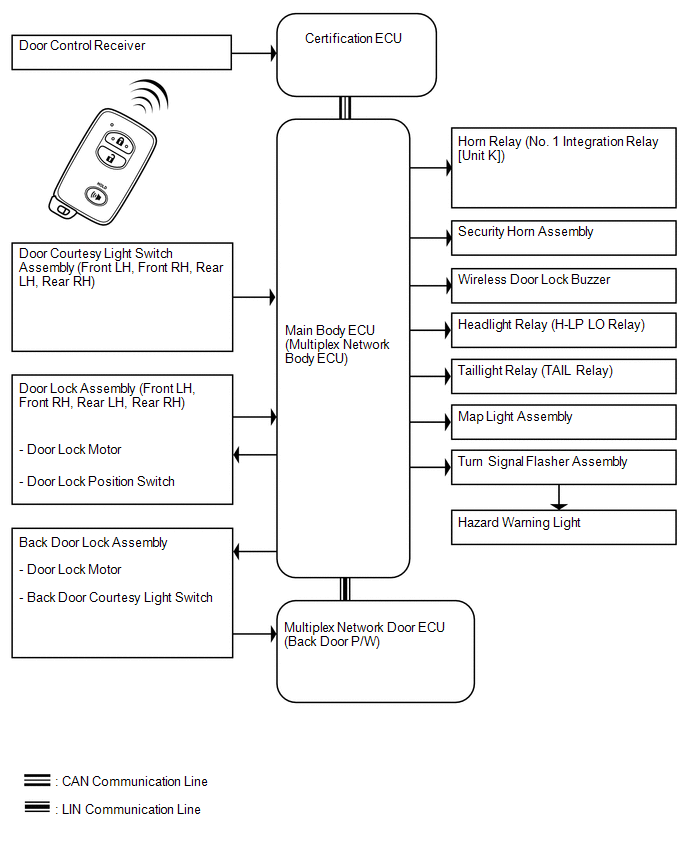

Fig 1: Identifying Wireless Door Lock Control System Diagram
GTY218539Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
COMMUNICATION TABLE

Sender Receiver Signal Line
Certification ECU Main body ECU
  • Door unlock standby control signal
  • Door lock/unlock output request signal
  • Wireless door lock buzzer sound request signal
 CAN
Main body ECU Certification ECU
  • Door courtesy light switch signal
  • Door lock position signal
Multiplex network door ECU (back door P/W) Main body ECU Back door courtesy light switch signal LIN
