Inspection Procedure

HINT:

Read freeze frame data using the intelligent tester. Freeze frame data records the engine condition when malfunctions are detected. When troubleshooting, freeze frame data can help determine if the vehicle was moving or stationary, if the engine was warmed up or not, if the air-fuel ratio was lean or rich, and other data from the time the malfunction occurred.

1. READ VALUE USING INTELLIGENT TESTER (+BM VOLTAGE)
   1. Connect the intelligent tester to the DLC3.
   2. Turn the ignition switch ON.
   3. Turn the tester ON.
   4. Select the following menu items: DIAGNOSIS / ENHANCED OBD II / DATA LIST / +BM VOLTAGE.
   5. Read the value displayed on the tester.

      Standard voltage:

      9 to 14 V

   OK: GO to step  5

   NG: GO to next step

2. CHECK FUSE (ETCS FUSE)
   1. Remove the ETCS fuse from the engine room No. 1 relay block.
   2. Measure the ETCS fuse resistance.

      Standard resistance:

      Below 1 Ω

   3. Reinstall the ETCS fuse.

   NG: CHECK FOR SHORTS IN ALL HARNESSES AND CONNECTORS CONNECTED TO FUSE AND REPLACE FUSE

   Fig 1: Checking Fuse (ETCS Fuse)

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   OK: GO to next step

3. CHECK HARNESS AND CONNECTOR (ECM - ETCS FUSE, ETCS FUSE - BATTERY)
   1. Check the harness and connector between the ETCS fuse and ECM.
      1. Remove the ETCS fuse from the engine room No. 1 relay block.
      2. Disconnect the A9 ECM connector.
      3. Measure the resistance.

         Standard resistance (Check for open)

         TESTER CONNECTION SPECIFIED CONDITION



         Tester Connections	Specified Conditions
         2 (ETCS fuse) - A9-3 (+BM)	Below 1 Ω

         Standard resistance (Check for short)

         TESTER CONNECTION SPECIFIED CONDITION



         Tester Connections	Specified Conditions
         2 (ETCS fuse) or A9-3 (+BM) - Body ground	10 kΩ or higher

      4. Reinstall the ETCS fuse.
      5. Reconnect the ECM connector.
   2. Check the harness and connector between the ETCS fuse and positive battery cable.
      1. Remove the ETCS fuse from the engine room No. 1 relay block.
      2. Disconnect the cable from the positive (+) battery terminal.

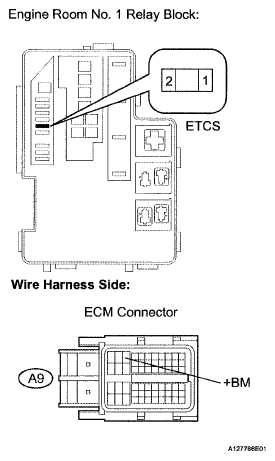

         Fig 2: Checking Harness And Connector (ECM - ETCS Fuse, ETCS Fuse - Battery)

         Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      3. Check the resistance.

         Standard resistance (Check for open)

         TESTER CONNECTION SPECIFIED CONDITION



         Tester Connections	Specified Conditions
         Positive battery cable -1 (ETCS fuse)	Below 1 Ω

         Standard resistance (Check for short)

         TESTER CONNECTION SPECIFIED CONDITION



         Tester Connections	Specified Conditions
         Positive battery cable or 1 (ETCS fuse) - Body ground	10 kΩ or higher

      4. Reinstall the ETCS fuse.
      5. Reconnect the cable to the positive (+) battery terminal.

   NG: REPAIR OR REPLACE HARNESS OR CONNECTOR

   OK: GO to next step

4. INSPECT ECM (+BM VOLTAGE)
   1. Disconnect the A9 and B30 ECM connectors.
   2. Measure the voltage between the terminals of the A9 and B30 ECM connectors.

      Standard voltage

      TESTER CONNECTION SPECIFIED CONDITION



      Tester Connections	Specified Conditions
      A9-3 (+BM) - B30-104 (E1)	9 to 14 V

   3. Reconnect the ECM connectors.

   NG: REPAIR OR REPLACE HARNESS OR CONNECTOR (TERMINAL E1 - BODY GROUND)

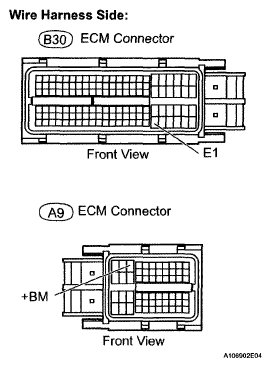

   Fig 3: Inspecting ECM (+BM Voltage)

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   OK: REPLACE ECM

5. INSPECT BATTERY
   1. Check that the battery is not depleted.

      OK:

      Battery is not depleted

   NG: REPLACE BATTERY

   OK: GO to next step

6. CHECK BATTERY TERMINAL
   1. Check that the battery terminals and ECM ground are not loose or corroded.

      OK:

      Battery terminals and ECM ground are not loose or corroded

   NG: REPAIR OR REPLACE BATTERY TERMINAL

   OK: CHECK FOR INTERMITTENT PROBLEMS
