Oil Pump: Components

Fig 1: Oil Pump Replacement Components & Torque Specification (1 Of 4)
G04507623Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: Oil Pump Replacement Components & Torque Specification (2 Of 4)
G04507624Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

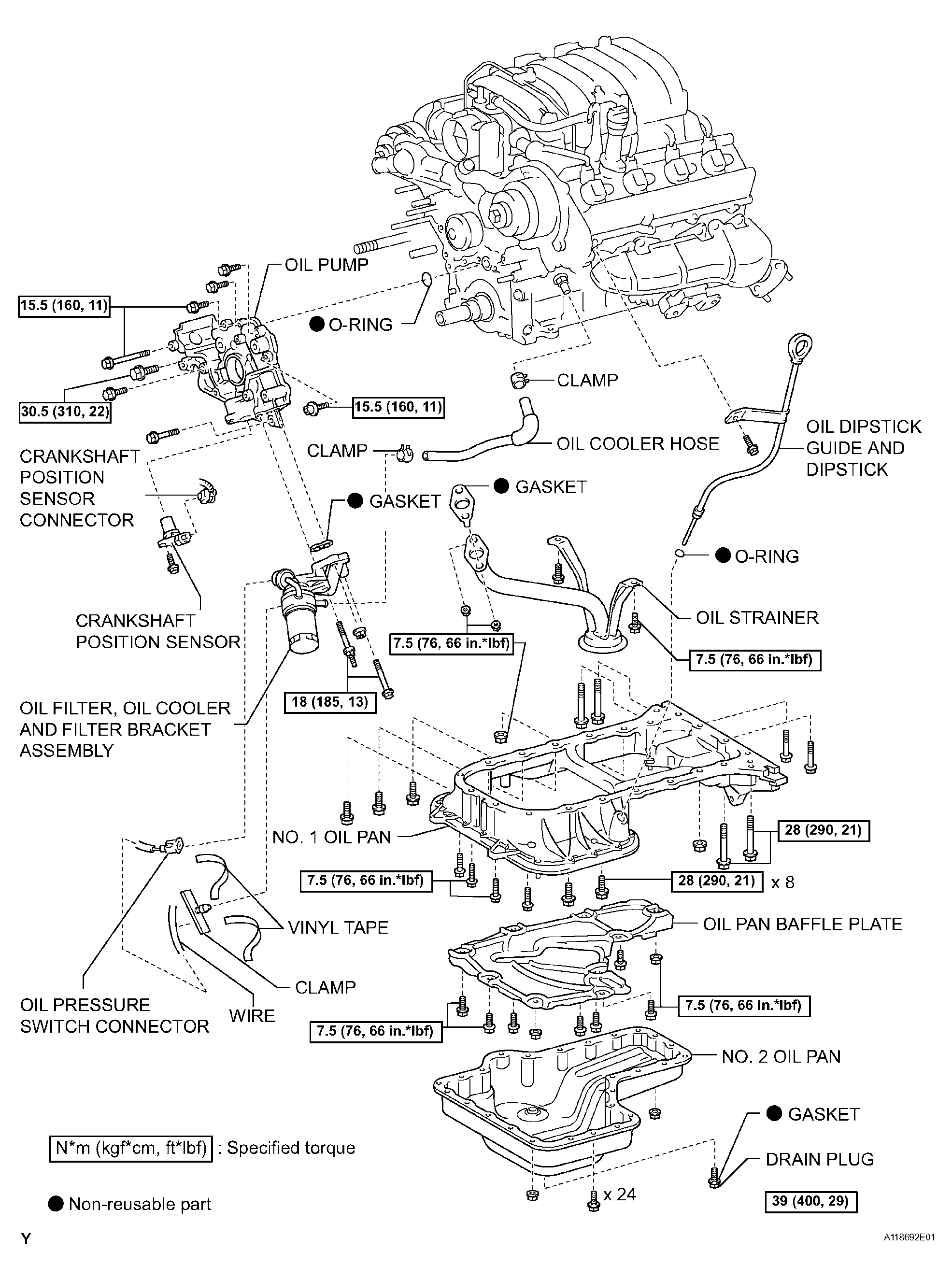

Fig 3: Oil Pump Replacement Components & Torque Specification (3 Of 4)
G04507625Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

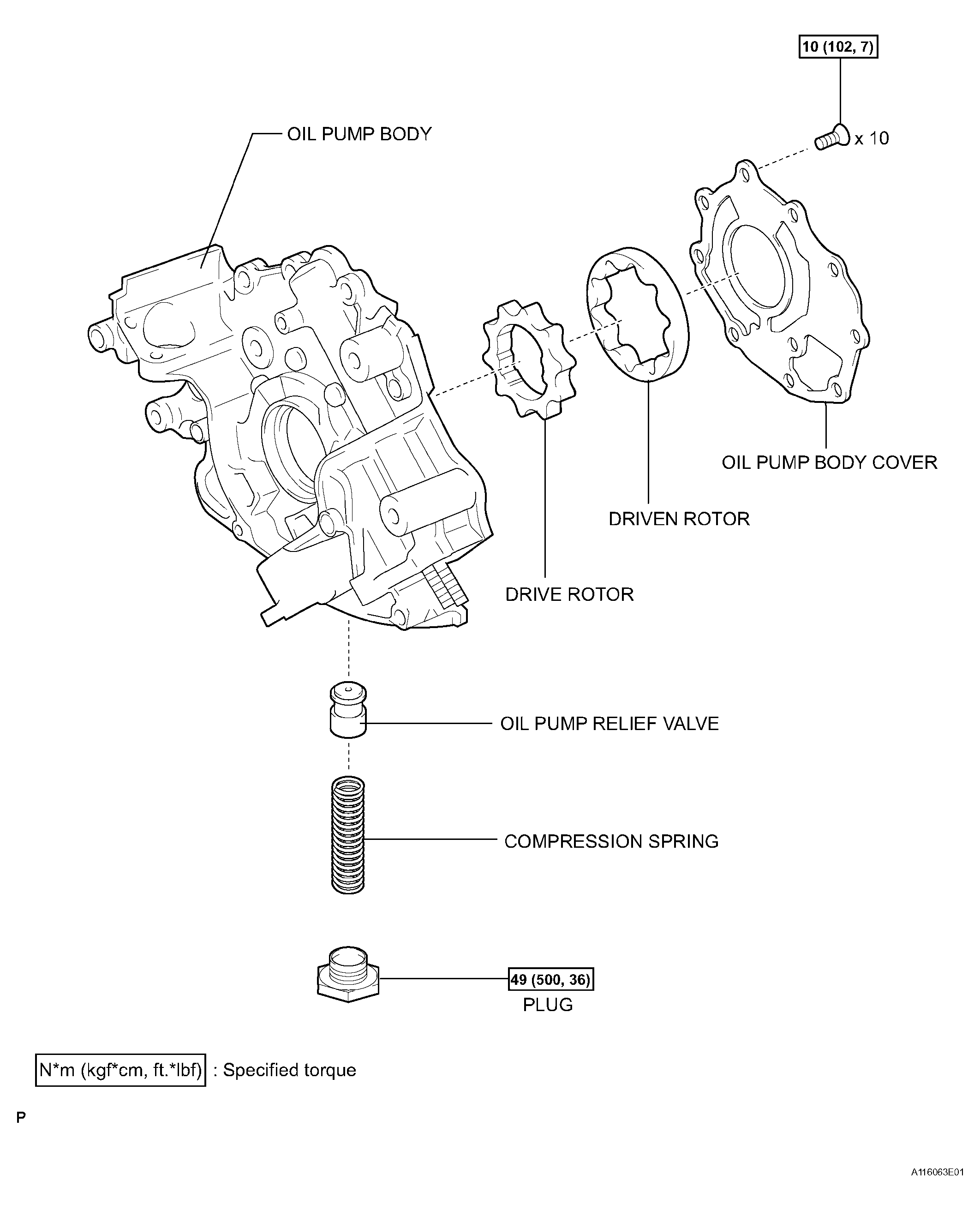

Fig 4: Oil Pump Replacement Components & Torque Specification (4 Of 4)
G04507626Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
