Inspection Procedure

1. Measure the voltage according to the value(s) in the table below.

   Standard voltage

   TESTER CONNECTION AND SPECIFIED CONDITION



   Tester connection	Condition	Specified condition
   MUTE - Body ground	Turn ignition switch to ACC, RSE system is playing → Changing mode	Above 3.5 V → Below 1 V

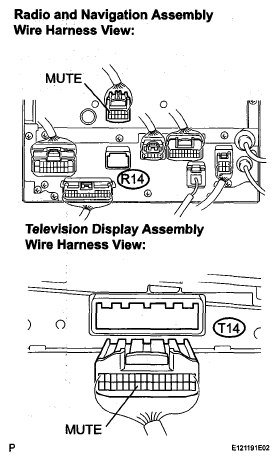

Fig 1: Inspecting Television Display Assembly Wire Harness Connecting
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

OK: PROCEED TO NEXT CIRCUIT INSPECTION SHOWN IN PROBLEM SYMPTOMS TABLE

NG: Go to next step.

1. Disconnect the radio and navigation assembly R14 connector and television display assembly T14 connector.
2. Measure the resistance according to the value(s) in the table below.

   Standard resistance

   TESTER CONNECTION AND SPECIFIED CONDITION



   Tester connection	Condition	Specified condition
   R14-6 (MUTE) - T14-26 (MUTE)	Always	Below 1 Ω
   MUTE - Body ground	Always	10 kΩ or higher

Fig 2: Checking Radio And Navigation Assembly - Television Display Assembly Harness And Connector Terminals
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

NG: REPAIR OR REPLACE HARNESS OR CONNECTOR

OK: Go to next step.

1. Replace the television display assembly and check if it operates normally.

   OK: The navigation system operates normally.

OK: NORMAL OPERATION

NG: REPLACE RADIO AND NAVIGATION ASSEMBLY
