Manual Up / Down Function does not Operate on Rear RH Only: Wiring Diagram

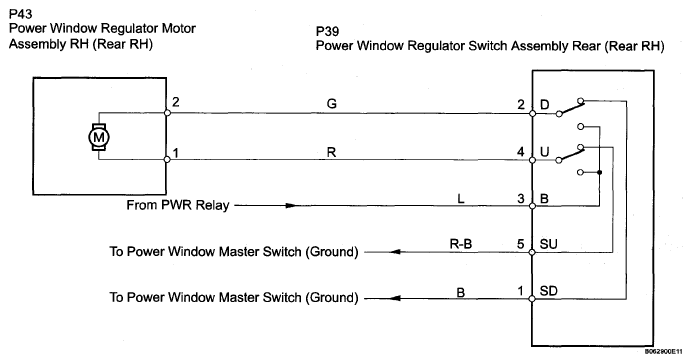

Fig 1: Power Window Regulator Motor Assembly RH - Wiring Diagram
G05141653Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
