Multiplex Communication System - BEAN Bus: Notes

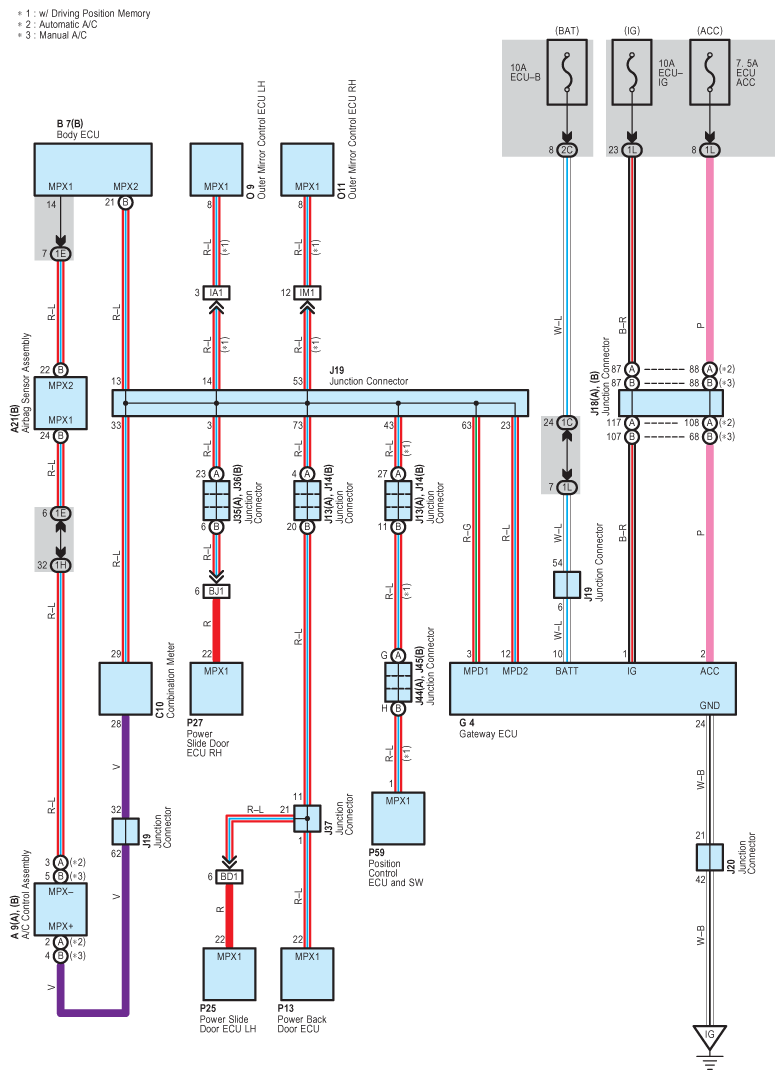

Fig 1: Multiplex Communication System (BEAN Bus) Wiring Diagram

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Multiplex Communication System (BEAN) Includes Following Systems

* Automatic Light Control

* Back Door Opener (w/o Power Back Door)

* Door Lock Control

* Fog Light

* Headlight

* Interior Light

* Key Reminder

* Light Auto Turn Off System

* Remote Control Mirror (w/ Driving Position Memory)

* Seat Belt Warning

* Theft Deterrent

* Wireless Door Lock Control
