Power Back Door: Notes

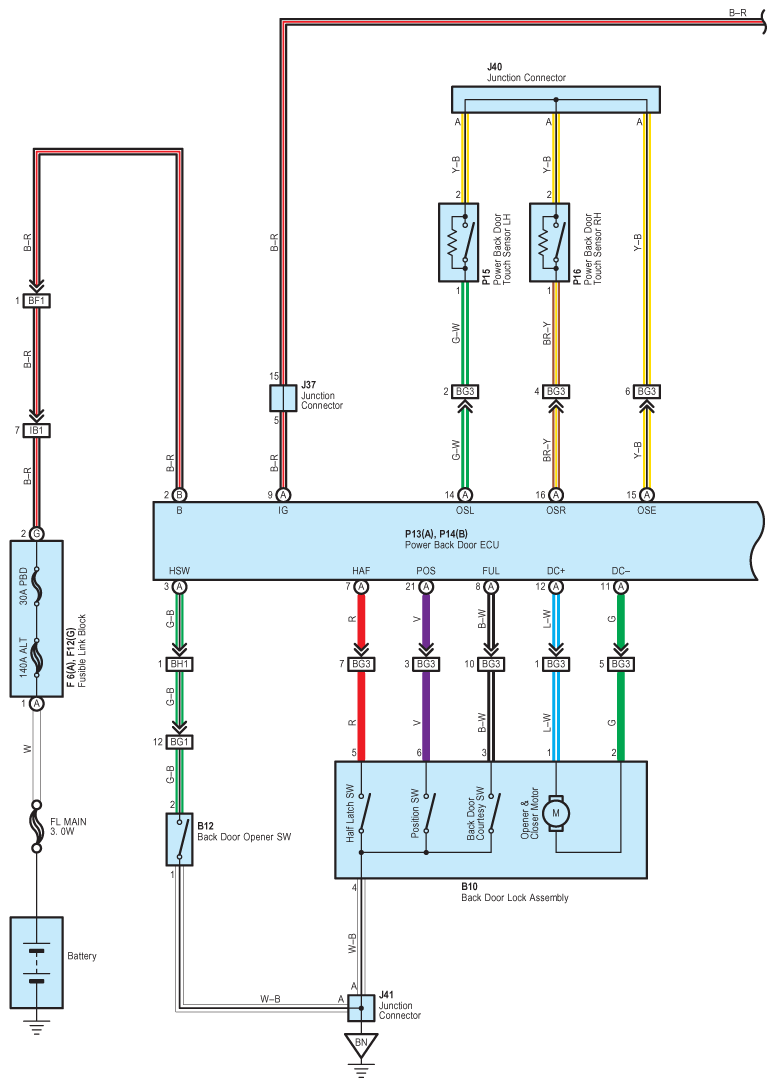

Fig 1: Power Back Door System Wiring Diagram (1 Of 4)
G08841970Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

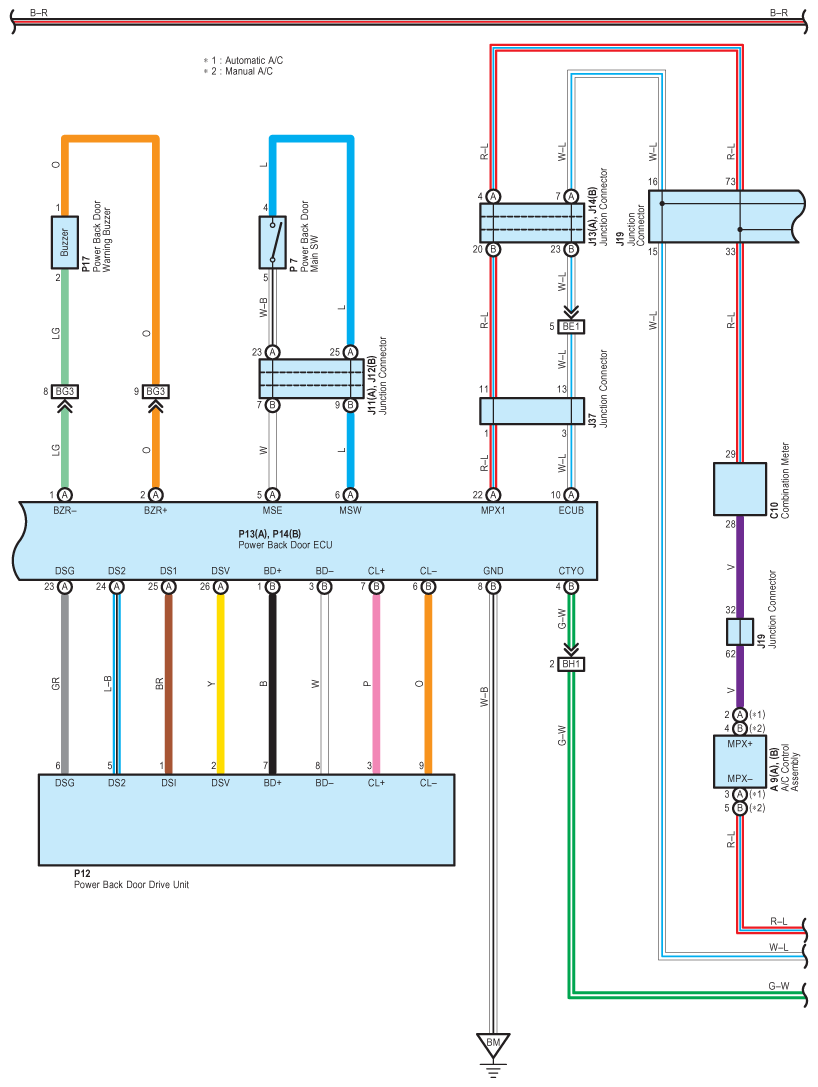

Fig 2: Power Back Door System Wiring Diagram (2 Of 4)
G08841971Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

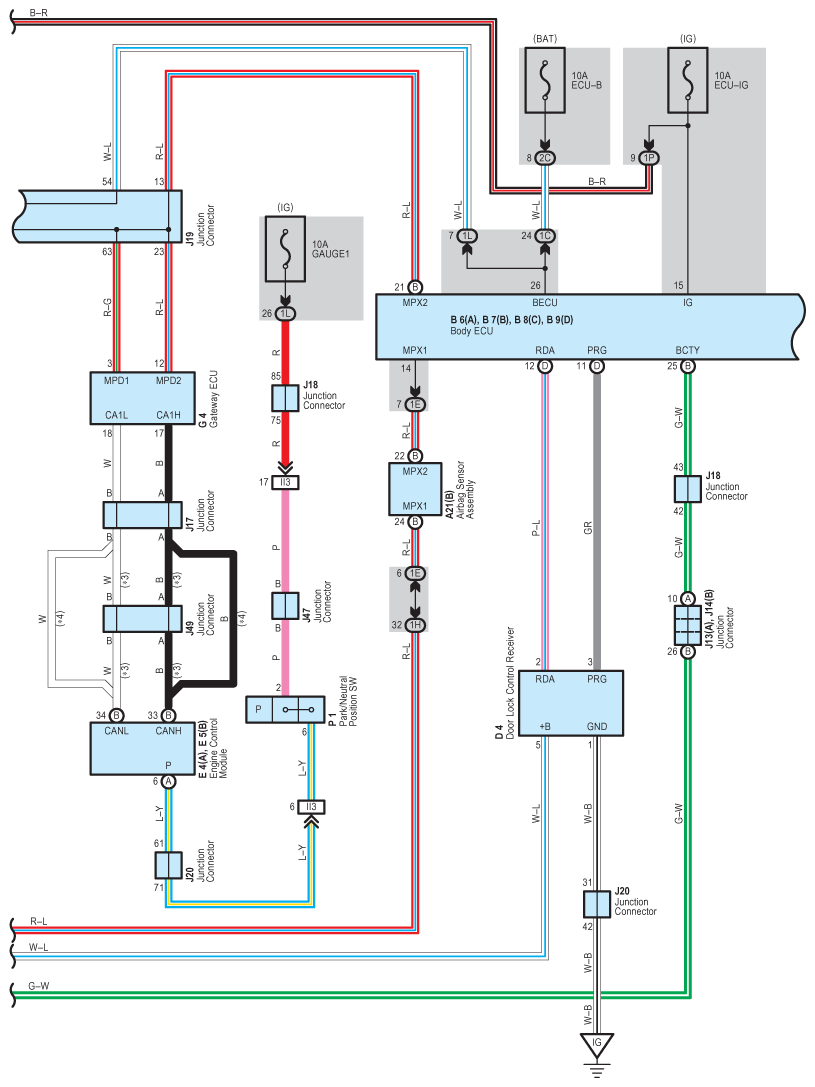

Fig 3: Power Back Door System Wiring Diagram (3 Of 4)
G08841972Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

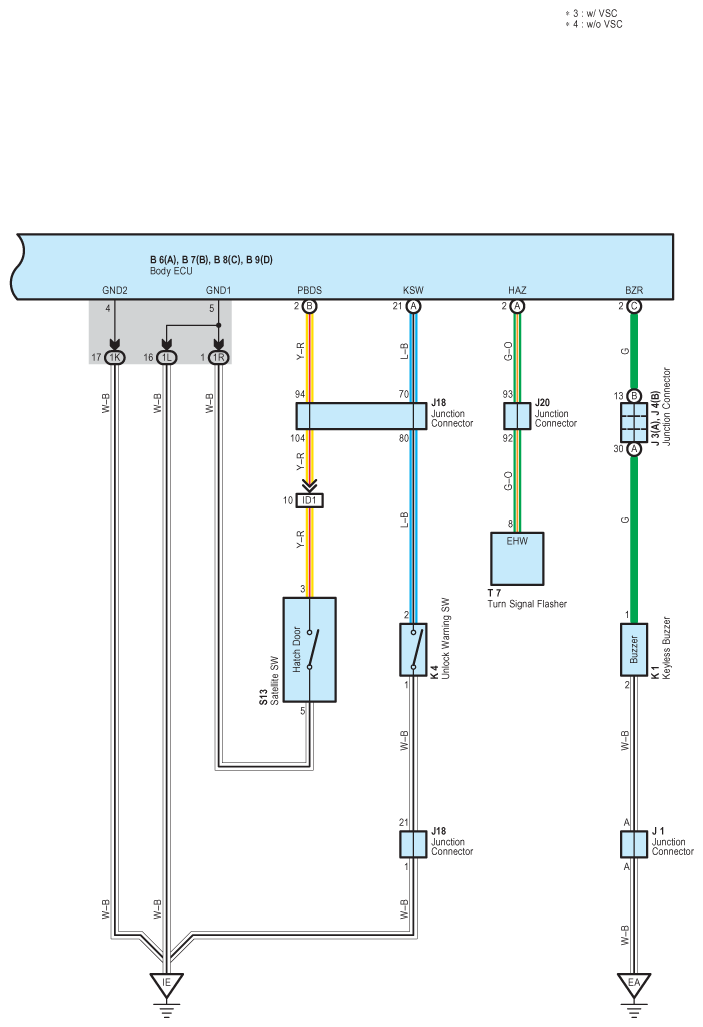

Fig 4: Power Back Door System Wiring Diagram (4 Of 4)
G08841973Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
