Power Window with Jam Protection: Notes

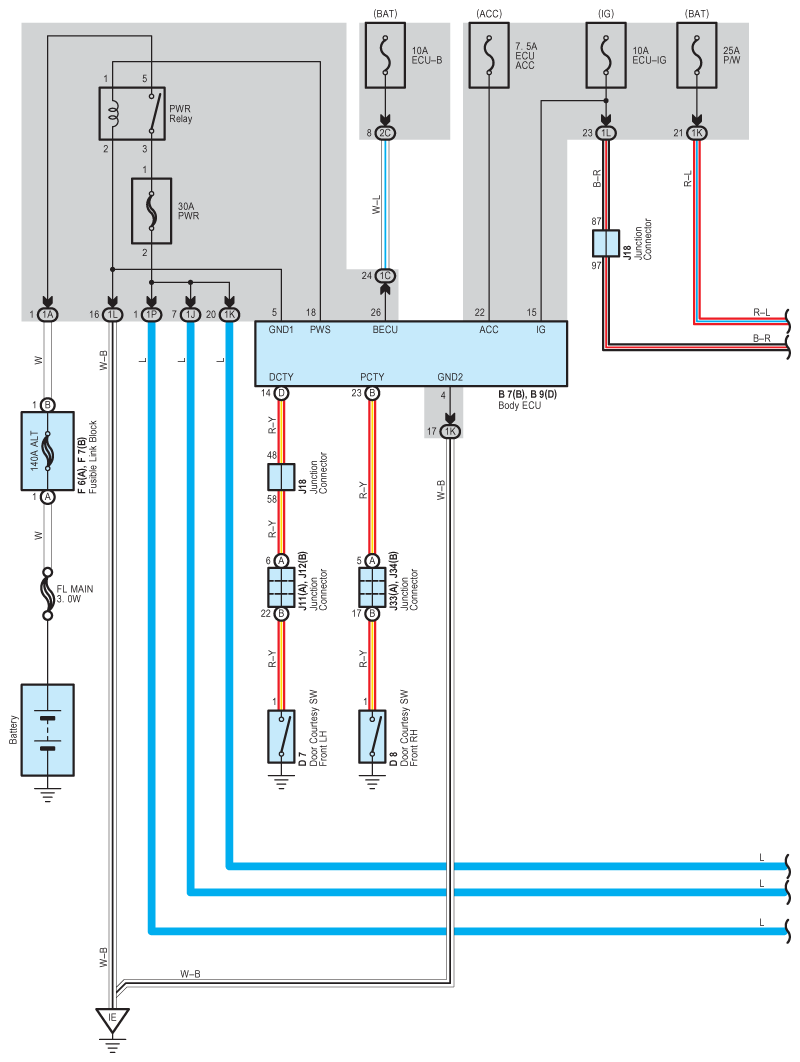

Fig 1: Power Window System (With Jam Protection) Wiring Diagram (1 Of 3)
G08841955Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

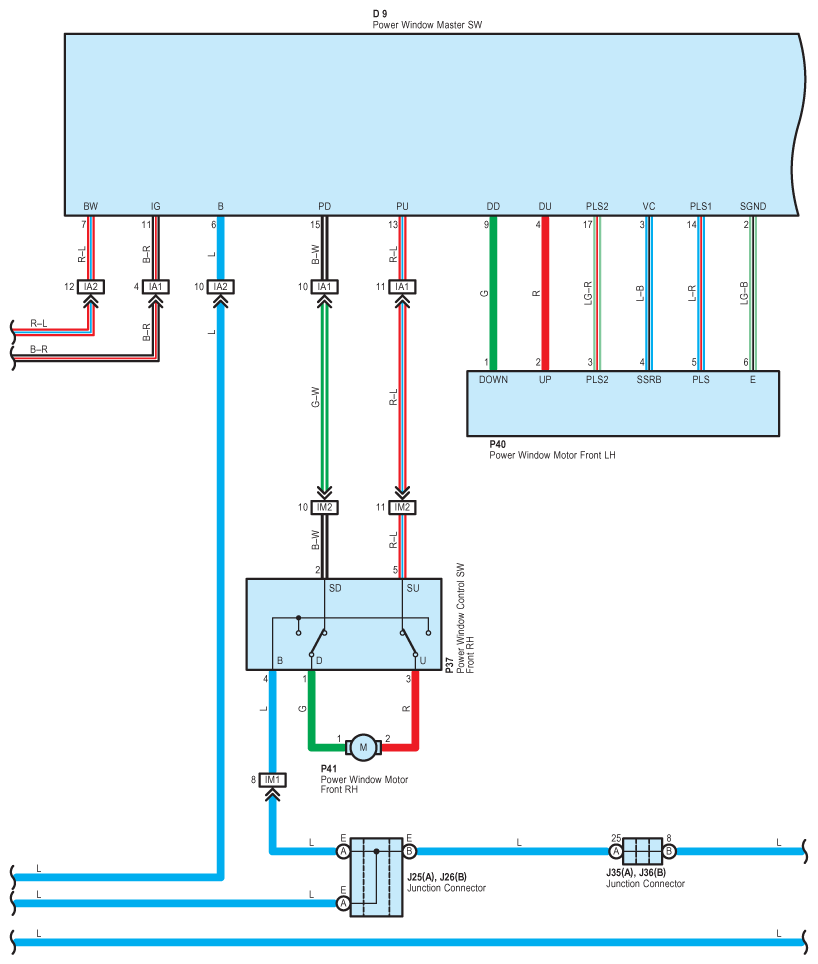

Fig 2: Power Window System (With Jam Protection) Wiring Diagram (2 Of 3)
G08841956Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

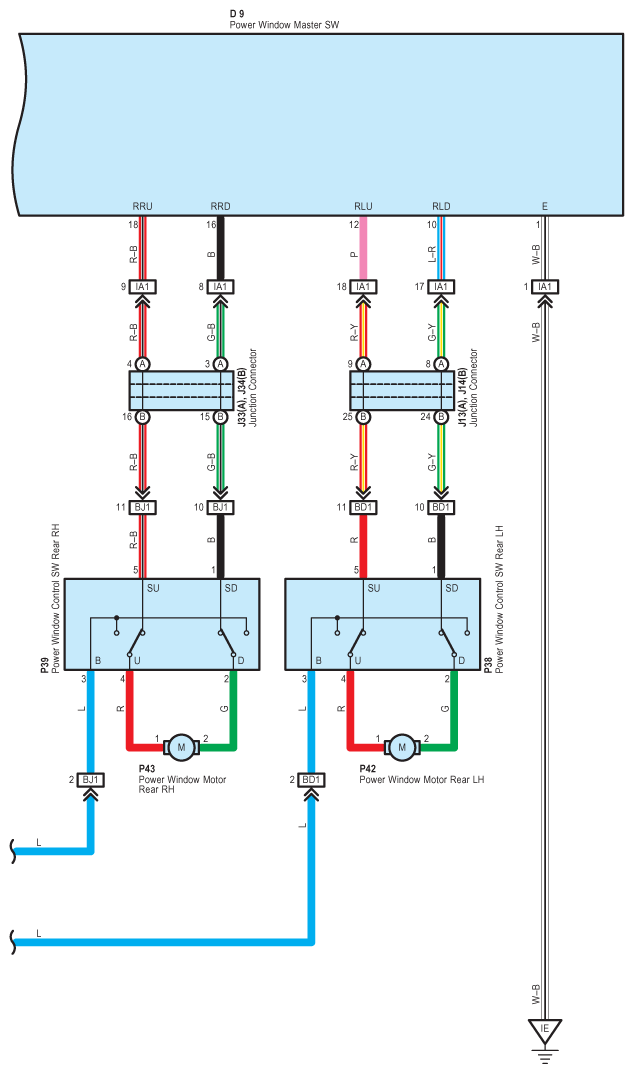

Fig 3: Power Window System (With Jam Protection) Wiring Diagram (3 Of 3)
G08841957Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
