Rear Axle Beam: Components

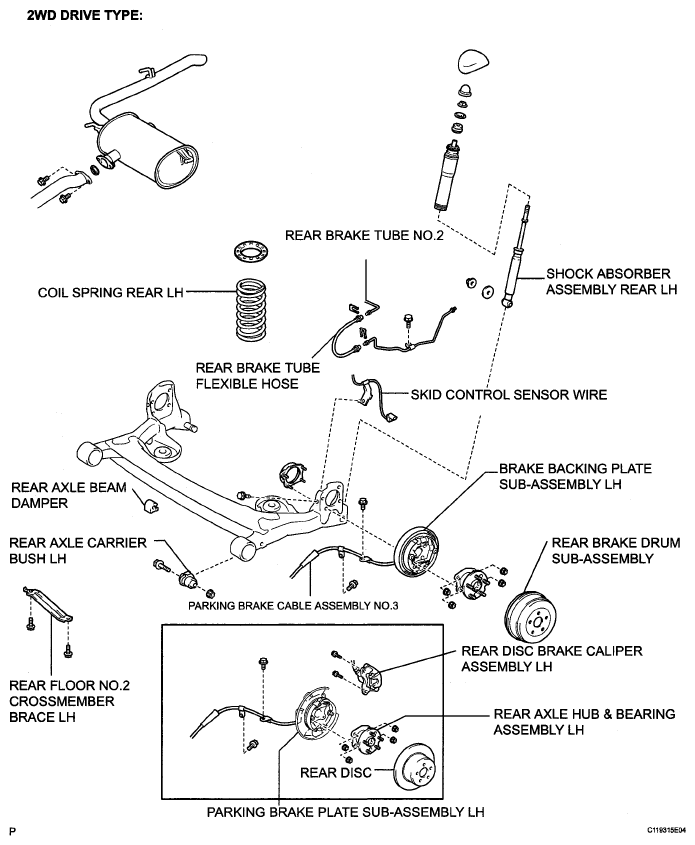

Fig 1: Identifying Rear Axle Beam Components (2WD Drive Type)
G05139494Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

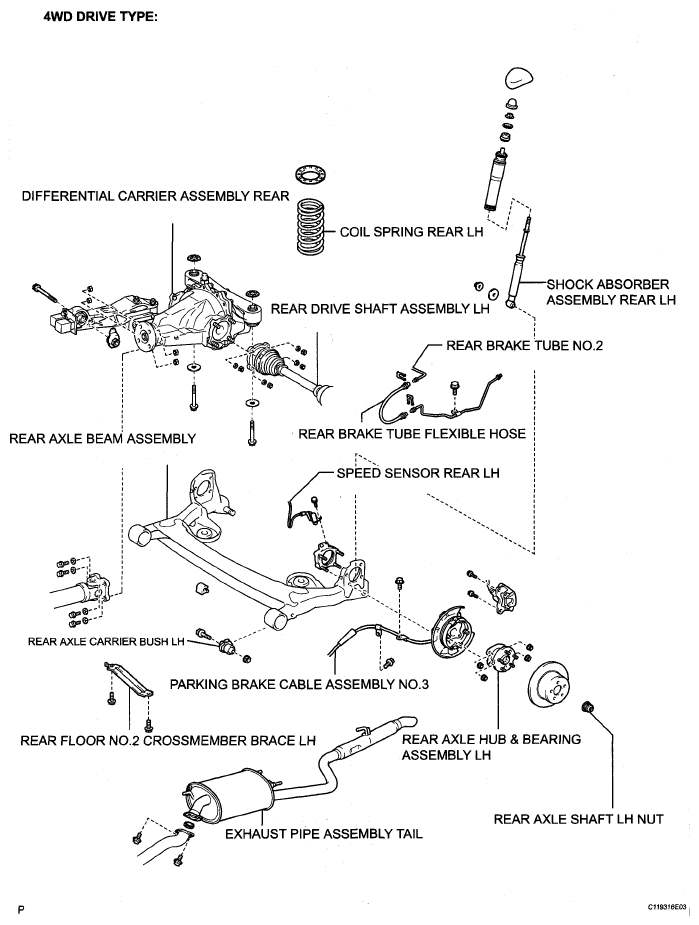

Fig 2: Identifying Rear Axle Beam Components (4WD Drive Type)
G05139495Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
