Inspection Procedure

1. Disconnect the radio receiver connector.
2. Measure the resistance according to the value in the table below.

   Standard resistance

   TESTER CONNECTION SPECIFIED CONDITION CHART



   Tester connection	Condition	Specified condition
   GND - Body ground	Always	Below 1 Ω

3. Measure the voltage according to the values in the table below.

   Standard voltage

   TESTER CONNECTION SPECIFIED CONDITION CHART



   Tester connection	Condition	Specified condition
   +B - GND ((2)) ((3))	Always	10 to 14 V
   B - GND ((1))	Always	10 to 14 V
   ACC - GND	Ignition SW ACC	10 to 14 V
   (1) 10 Speaker without Navigation System (2) 6 Speaker with Rear Seat Entertainment System (3) 6 Speaker without Rear Seat Entertainment System

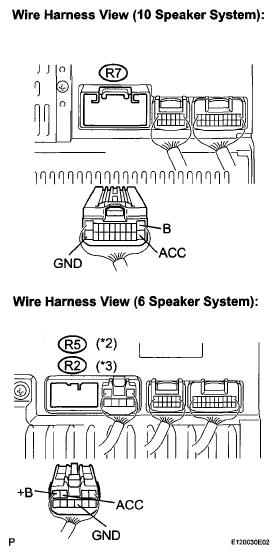

Fig 1: Identifying Radio Receiver Connectors Terminal
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

NG: REPAIR OR REPLACE HARNESS OR CONNECTOR

OK: PROCEED TO NEXT CIRCUIT INSPECTION SHOWN IN PROBLEM SYMPTOMS TABLE
