Display Signal Circuit between Radio and Navigation Assembly and Television Camera Assembly: Wiring Diagram

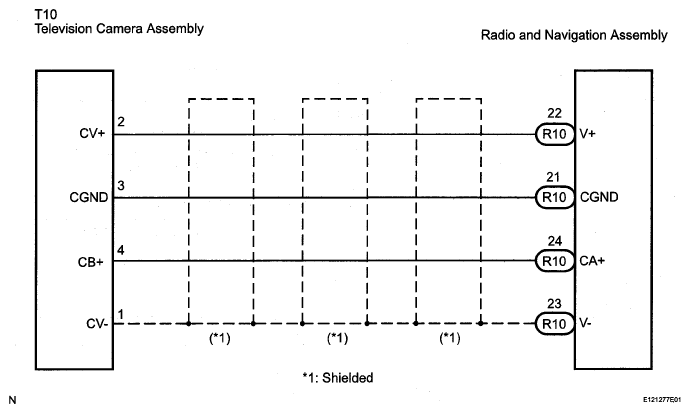

Fig 1: Display Signal Circuit - Wiring Diagram
G05141321Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
